LS130R-AEJBS (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
2L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9512)2L

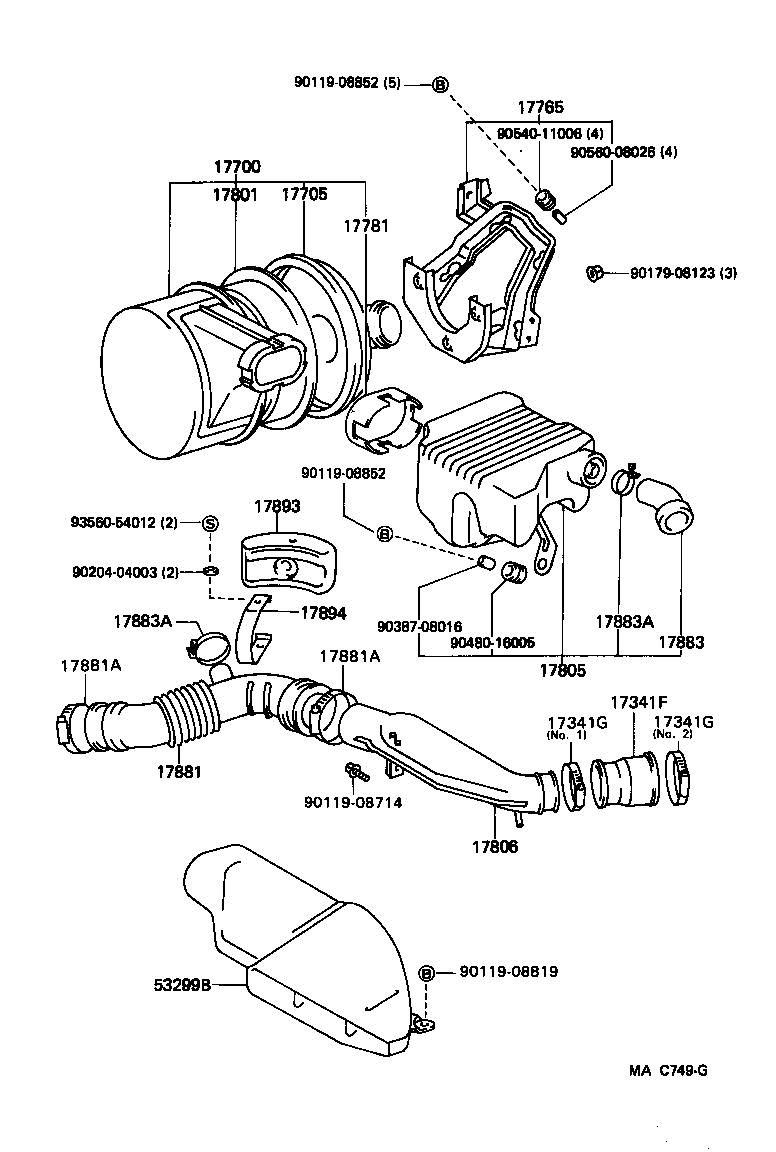

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-54010 |
2L..LS130 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-56001 |
2L..LS130 NO.1 |
1 | ||
| 90467-60001 |
2L..LS130 NO.2 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-56001 |
2L..LS130 NO.1 |
1 | ||
| 90467-60001 |
2L..LS130 NO.2 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54600 |
2L..LS130 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-73110 |
2L..LS130 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17706-54030 |
2L..LS130 |
1 | ||
| 17781 - SEAL, AIR CLEANER INLET | ||||
| 17781-54020 |
2L..LS130 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54090 |
2L..LS130 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-54170 |
2L..LS130 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17103-54090 |
2L..LS130 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54440 |
2L..LS130 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-88001 |
2L..LS130 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-88001 |
2L..LS130 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-54390 |
2L..LS130 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10530 |
2L..LS130 HOSE SIDE |
1 | ||
| 96111-10730 |
2L..LS130 RESONATOR SIDE |
1 | ||
| 90467-44001 |
2L..LS130 HOSE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10530 |
2L..LS130 HOSE SIDE |
1 | ||
| 96111-10730 |
2L..LS130 RESONATOR SIDE |
1 | ||
| 90467-44001 |
2L..LS130 HOSE SIDE |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-54110 |
2L..LS130 |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-54100 |
2L..LS130 |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-30220 |
LS130 |
1 | ||
| Common parts | ||||
| 90119-08714 | ||||
| 90119-08819 | ||||
| 90119-08852 | ||||
| 90179-08123 | ||||
| 90204-04003 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 90540-11006 | ||||
| 90560-08026 | ||||
| 93560-54012 | ||||
