LS130R-AEJBS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
2L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

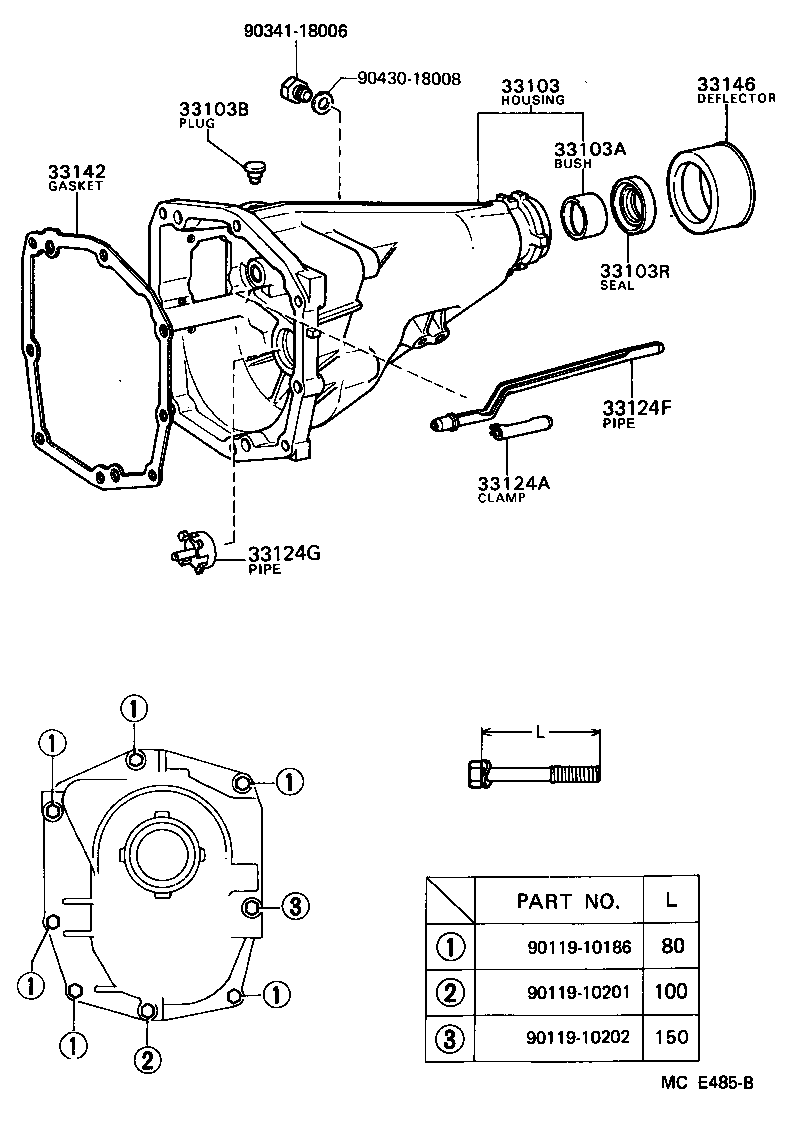

(8709- )LS130..4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-30171 |
LS130..4H |
1 | ||
| 33103-30170 |
LS130..4H |
1 | ||
| 33103-30172 |
LS130..4H |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73120 |
LS130..4H |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03080 |
LS130,YS132..4H |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38040 |
LS130..4H |
1 | ||
| 90311-38032 |
LS130..4H |
1 | ||
| 33124A - CLAMP(FOR TRANSMISSION OIL RECEIVER PIPE) | ||||
| 90463-08036 |
LS130..4H |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33124-30061 |
LS130..4H |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-30080 |
LS130..4H |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-30050 |
LS130..4H |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
GS131,LS130,MS132,133,YS132..MTM |
1 | ||
| Common parts | ||||
| 90119-10186 | ||||
| 90119-10201 | ||||
| 90119-10202 | ||||
| 90341-18006 | ||||
| 90430-18008 | ||||

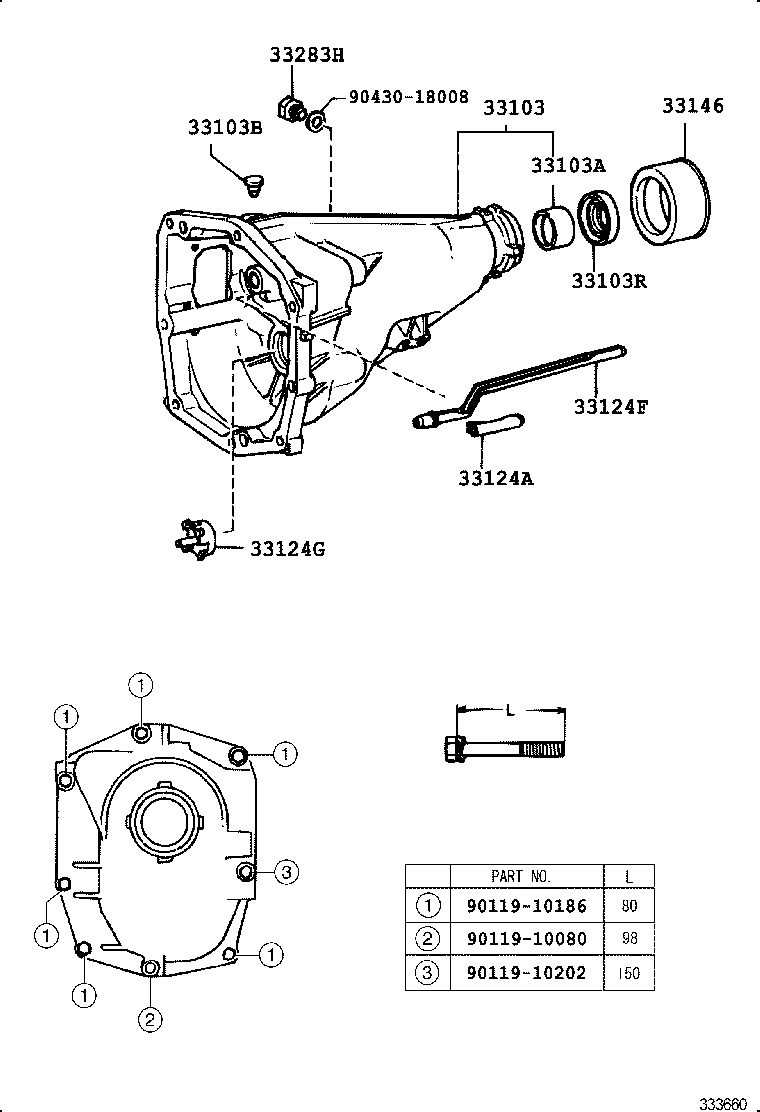

(9110-9512)4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10080 | ||||
| 90119-10186 | ||||
| 90119-10202 | ||||
| 90430-18008 | ||||
