LS130R-AEJBS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
2L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

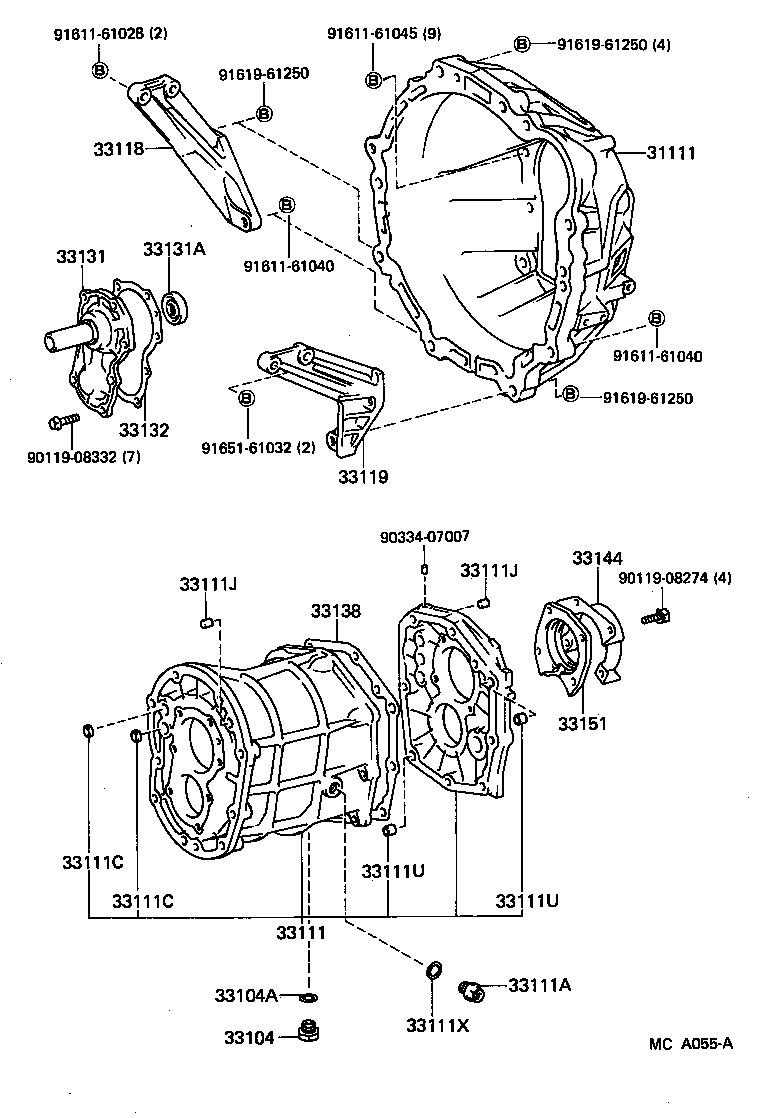

(8709- )LS130..4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22112 |
LS130 |
1 | ||
| 31111-22114 |
LS130 |
1 | ||
| 31111-22111 |
LS130 |
1 | ||
| 31111-22113 |
LS130 |
1 | ||
| 31111-22112 |
LS130 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
GS131,LS130,MS132,133,YS132..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GS131,LS130,MS132,133,YS132..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-30061 |
LS130..4H |
1 | ||
| 33101-30062 |
LS130..4H |
1 | ||
| 33101-30063 |
LS130..4H |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
LS130..4H |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LS130..4H OD=14 |
2 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LS130..4H OD=14 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LS130..4H L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LS130..4H L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LS130..4H L=14,OD=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LS130..4H L=14,OD=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
GS131,LS130,MS132,133,YS132..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LS130 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25020 |
LS130 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-30061 |
LS130..4H |
1 | ||
| 33131-30062 |
LS130..4H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LS130,MS132,133,YS132..MTM |
1 | ||
| 90311-30010 |
LS130..4H |
1 | ||
| 90311-30014 |
LS130..4H |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30061 |
LS130..4H |
1 | ||
| 33132-30060 |
LS130..4H |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-30010 |
LS130..4H |
1 | ||
| 33144 - DEFLECTOR, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-30022 |
LS130..4H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-30040 |
LS130..4H |
1 | ||
| Common parts | ||||
| 90119-08274 | ||||
| 90119-08332 | ||||
| 90334-07007 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-61032 | ||||

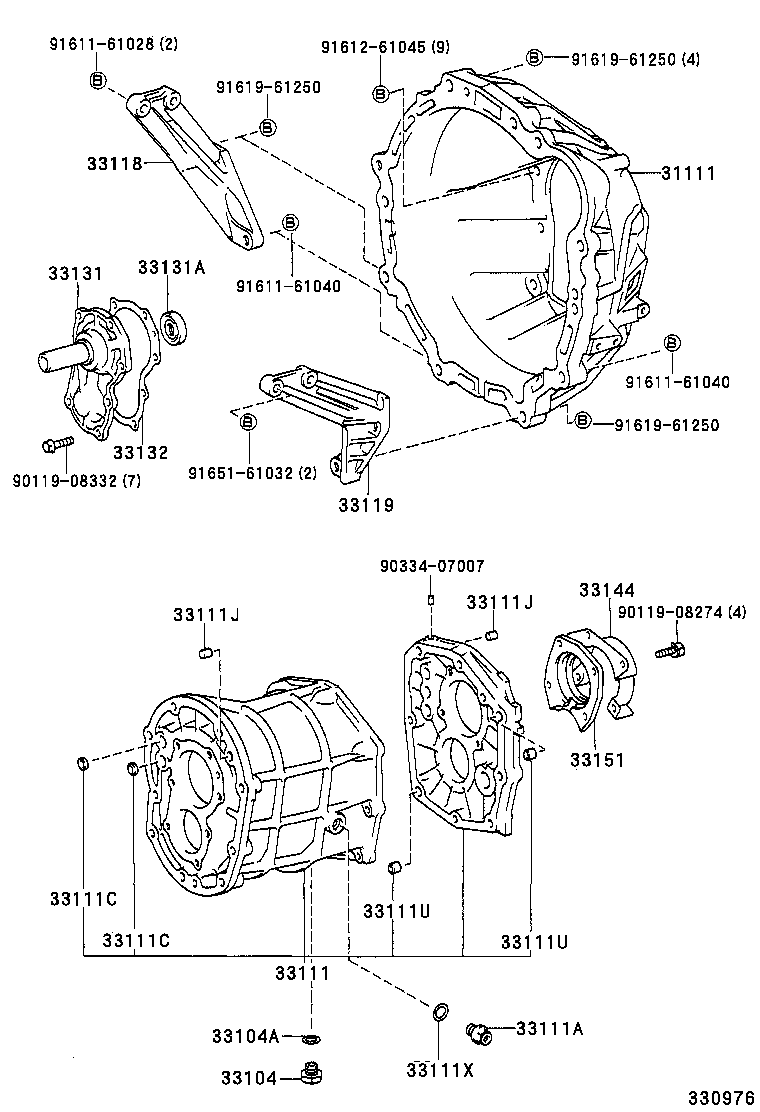

(9110-9512)4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08274 | ||||
| 90119-08332 | ||||
| 90334-07007 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91651-61032 | ||||
