LS130R-AEJBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8709- )LS130,MS132,133,YS132..MTM ; (8908-)GS131..SAL

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324C 31453A 31453B 55107A 9046816142 9165160822 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30200

LS130,MS132,133..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12055

GS131,LS130,MS132,133,YS132..MTM..(DLX,SAL,SALEX,STD)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06032

GS131,LS130,MS132,133,YS132..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS131,LS130,MS132,133,YS132..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS131,LS130,MS132,133,YS132..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GS131,LS130,MS132,133,YS132..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

GS131,LS130,MS132,133,YS132..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10164

GS131,LS130,MS132,133..RHD..MTM

 1
31324C - COLLAR(FOR CLUTCH PEDAL SHAFT)
90387-10105

GS131,LS130,MS132,133..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

GS131,LS130,MS132,133,YS132..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

GS131,LS130,MS132,133,YS132..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-30150

LS130,MS132,133..RHD..MTM

 1
Common parts
90468-16142
91651-60822
94110-51000
94120-41000
94512-01000

ILLUST NO. 2 OF 2(8709- )RHD..MTM

Click highlighted areas on diagram

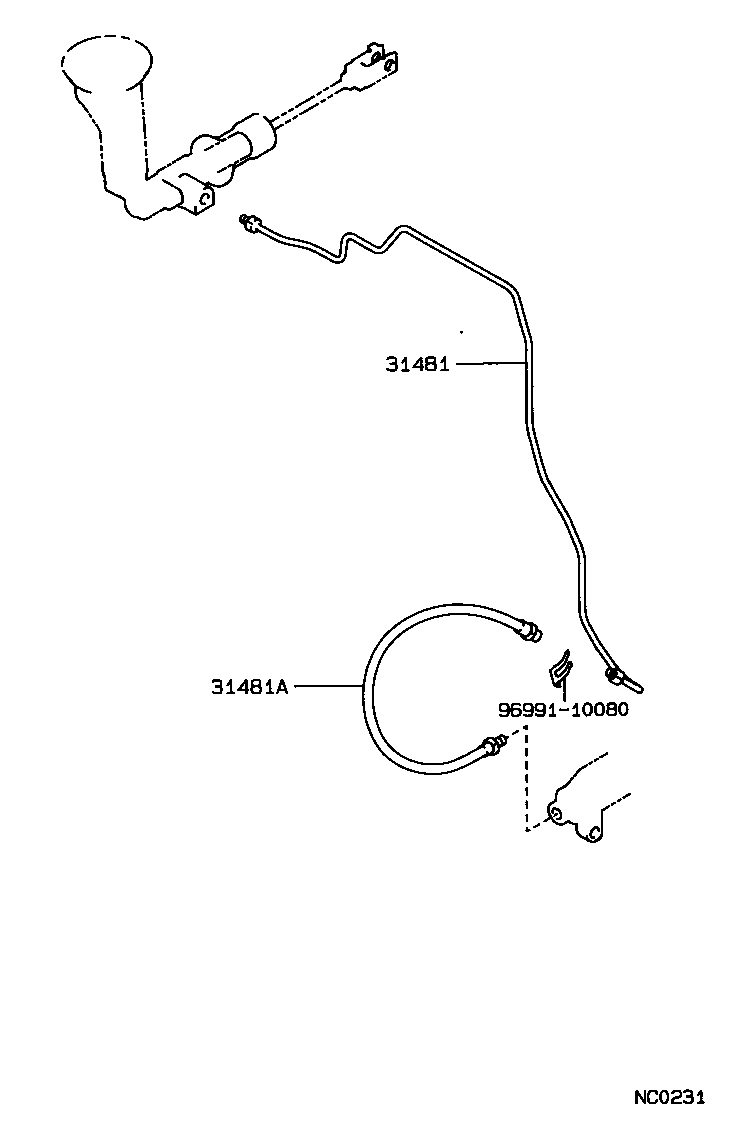

diagram 31481 31481A 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30170

GS131,LS130,MS132,133..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50320

GS131,LS130,MS132,133..MTM

 1
Common parts
96991-10080
