LS130R-AEJBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)2L

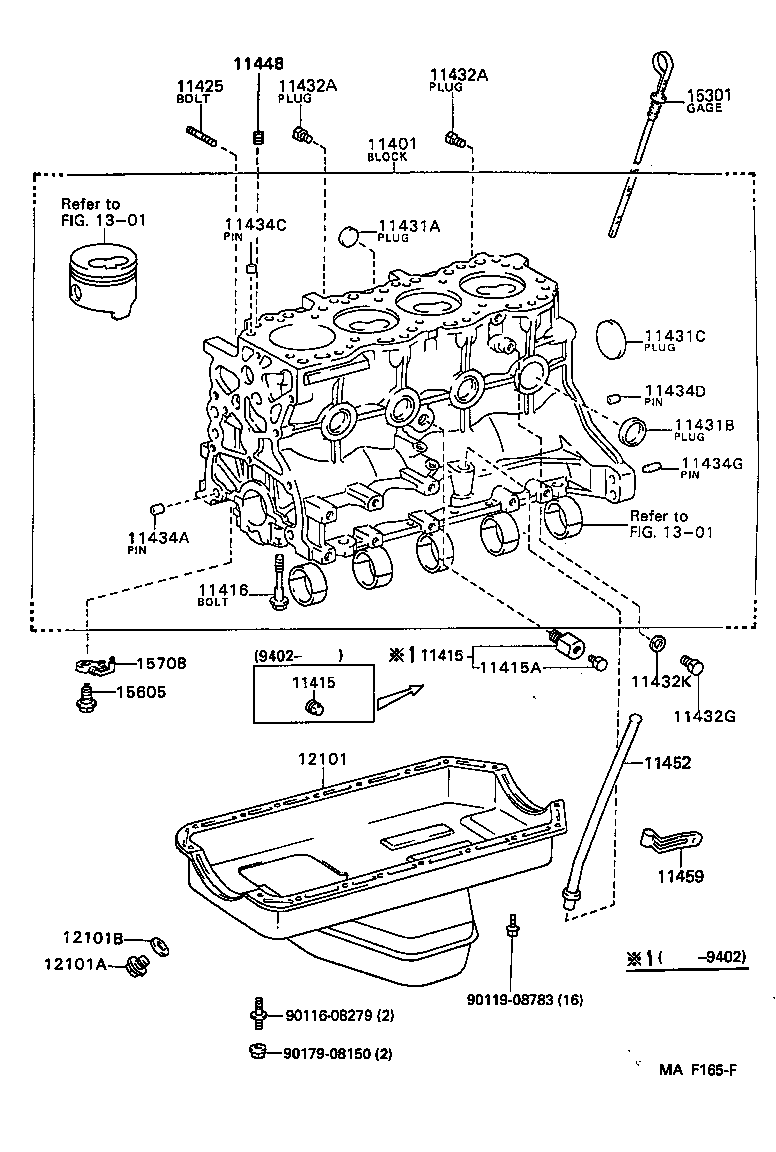

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12151 1301 1301 15301 15605 15708 9011608279 9011608279 9011908571 9011908571 9017908038 9017908038
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59247

2L..LS130

 1
11401-59246

2L..LS130

 1
11401-59345

2L..LS130

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

2L..LS130

 1
96431-53828

2L..LS130

 1
96431-53828

2L..LS130

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

2L..LS130

 1
96432-23814

2L..LS130

 1
96432-23814

2L..LS130

 1
90345-53030

2L..LS130

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02061

2L..LS130

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-08157

2L..LS130

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2L..LS130

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2L..LS130

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

2L..LS130

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51006

2L..LS130

 1
90345-51006

2L..LS130

 2
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53002

2L..LS130

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11001

2L..LS130

L=11,OD=11

 2
90253-11021

2L..LS130

L=8,OD=11

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

2L..LS130

L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90253-11021

2L..LS130

L=8,OD=11

 2
90253-11001

2L..LS130

L=11,OD=11

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

2L..LS130

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-54020

2L..LS130

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-54030

2L..LS130

 1
11452-54080

2L..LS130

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
90929-01204

2L..LS130

 1
90461-10658

2L..LS130

 1
12101 - PAN SUB-ASSY, OIL
12101-54032

2L..LS130

 1
12101-54140

2L..LS130

 1
12101-54142

2L..LS130

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2L..LS130

 1
90341-12012

2L..LS130

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18013

2L..LS130

 1
90430-12027

2L..LS130

 1
90430-12027

2L..LS130

 1
90430-18026

2L..LS130

 1
90430-18013

2L..LS130

 1
12151 - GASKET, OIL PAN
12151-54020

2L..LS130

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-54040

2L..LS130

 1
15301-54070

2L..LS130

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

2L..LS130

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-54060

2L..LS130

 4
15708-54010

2L..LS130

 4
Common parts
90116-08279
90119-08571
90179-08038
Linked diagrams
1301

(8908- )2L

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432A 11432G 11432K 11434A 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 1301 1301 15301 15605 15708 9011608279 9011908783 9011908877 9017908038
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59247

2L..LS130

 1
11401-59246

2L..LS130

 1
11401-59345

2L..LS130

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

2L..LS130

 1
96431-53828

2L..LS130

 1
96431-53828

2L..LS130

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

2L..LS130

 1
96432-23814

2L..LS130

 1
96432-23814

2L..LS130

 1
90345-53030

2L..LS130

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02061

2L..LS130

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-08157

2L..LS130

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2L..LS130

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2L..LS130

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

2L..LS130

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51006

2L..LS130

 1
90345-51006

2L..LS130

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51006

2L..LS130

 1
90345-51006

2L..LS130

 2
11432G - PLUG, W/HEAD STRAIGHT SCREW, NO.5
90341-12006

2L..LS130

 1
11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-12221

2L..LS130

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11001

2L..LS130

L=11,OD=11

 2
90253-11021

2L..LS130

L=8,OD=11

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

2L..LS130

L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90253-11021

2L..LS130

L=8,OD=11

 2
90253-11001

2L..LS130

L=11,OD=11

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

2L..LS130

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-54020

2L..LS130

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-54030

2L..LS130

 1
11452-54080

2L..LS130

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
90929-01204

2L..LS130

 1
90461-10658

2L..LS130

 1
12101 - PAN SUB-ASSY, OIL
12101-54032

2L..LS130

 1
12101-54140

2L..LS130

 1
12101-54142

2L..LS130

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2L..LS130

 1
90341-12012

2L..LS130

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18013

2L..LS130

 1
90430-12027

2L..LS130

 1
90430-12027

2L..LS130

 1
90430-18026

2L..LS130

 1
90430-18013

2L..LS130

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-54040

2L..LS130

 1
15301-54070

2L..LS130

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

2L..LS130

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-54060

2L..LS130

 4
15708-54010

2L..LS130

 4
Common parts
90116-08279
90119-08783
90119-08877
90179-08038
Linked diagrams
1301

(9110-9512)2L

Click highlighted areas on diagram

diagram 11401 11415 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432A 11432G 11432K 11434A 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 1301 1301 15301 15605 15708 9011608279 9011908783 9017908150
Part # Description Qty Price
Common parts
90116-08279
90119-08783
90179-08150
Linked diagrams
1301
