LS130L-AEKBS (1987)
Toyota Crown

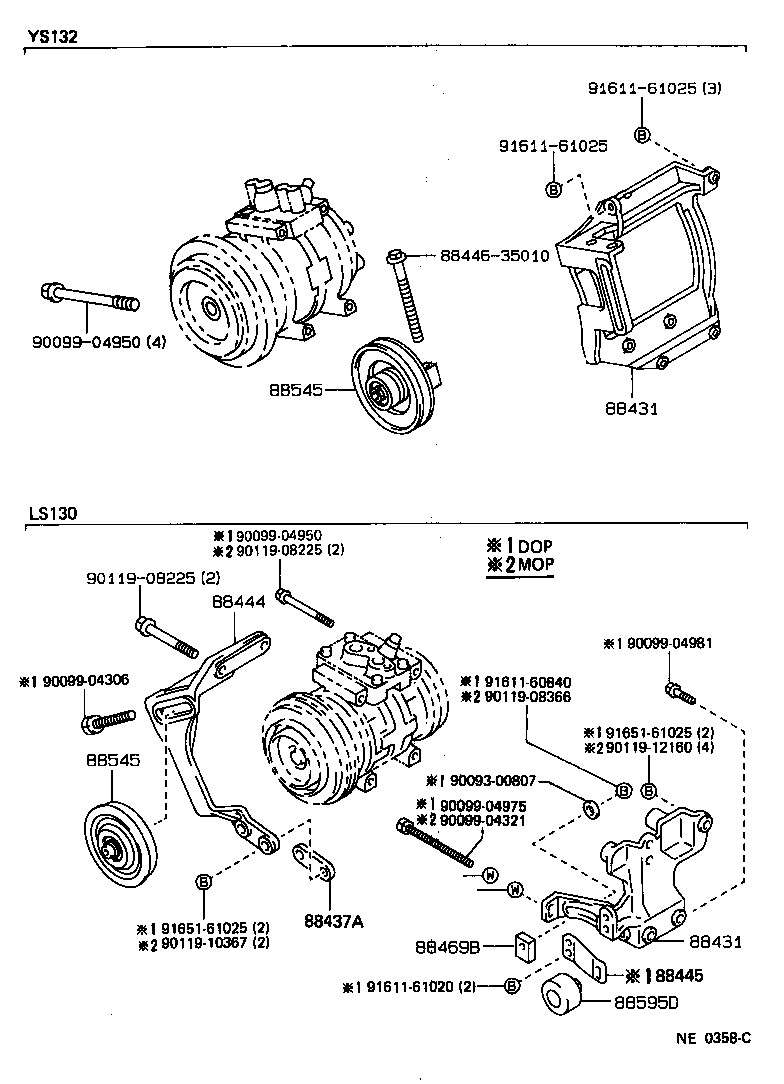

ILLUST NO. 2 OF 3(8709- )LS130,YS132
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22270 |
LS130 |
1 | ||
| 88431-26170 |
LS130..LHD |
1 | ||
| 88431-30610 |
LS130..4F |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22270 |
LS130 |
1 | ||
| 88431-26170 |
LS130..LHD |
1 | ||
| 88431-30610 |
LS130..4F |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-22050 |
LS130 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-30280 |
LS130 |
1 | ||
| 88444-22060 |
LS130 |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26070 |
LS130 |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LS130 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LS130 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LS130 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LS130 |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 90093-00807 | ||||
| 90099-04306 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90099-04975 | ||||
| 90099-04981 | ||||
| 90119-08225 | ||||
| 90119-08366 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-61025 | ||||

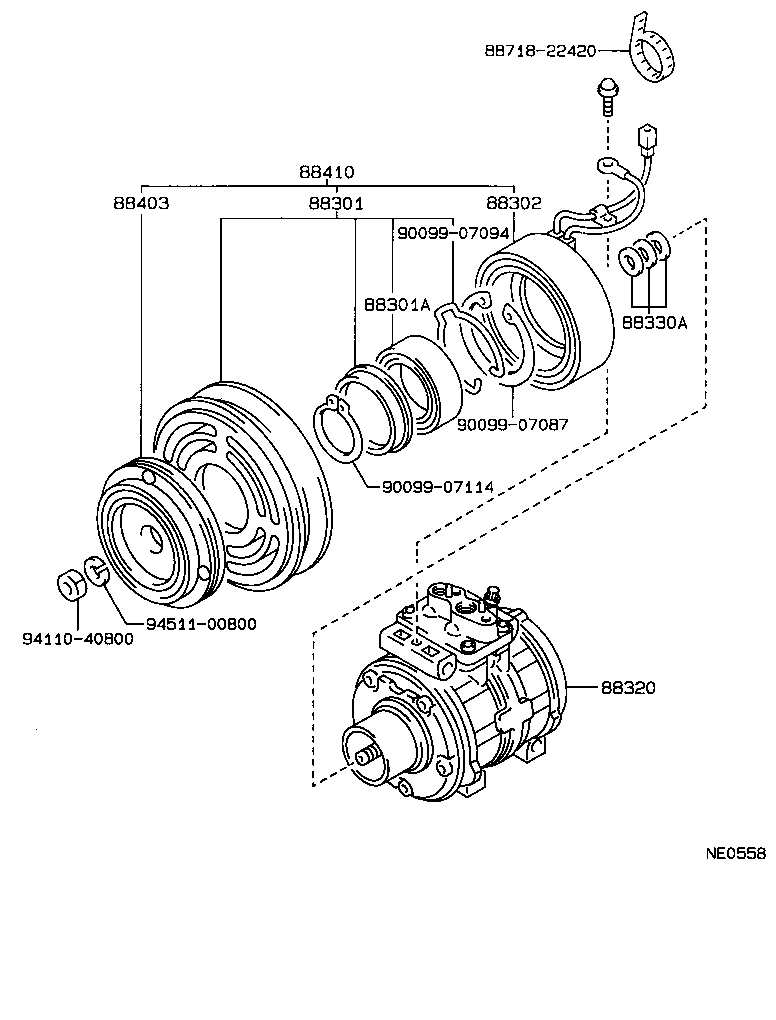

ILLUST NO. 1 OF 3(8709- )LS130,YS132
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-27010 |
LS130 |
1 | ||
| 88412-22030 |
LS130,YS132 |
1 | ||
| 88301A - BEARING (FOR MAGNET CLUTCH) | ||||
| 90099-10133 |
LS130,YS132 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30510 |
LS130 |
1 | ||
| 88411-14050 |
LS130 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30470 |
LS130..LHD |
1 | ||
| 88320-30550 |
LS130 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
LS130,YS132 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
LS130,MS132,135;MS133..SAL,SALEX |
1 | ||
| 88403-14030 |
LS130..LHD |
1 | ||
| 88403-12030 |
LS130..LHD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-27020 |
LS130 |
1 | ||
| 88410-22080 |
LS130 |
1 | ||
| Common parts | ||||
| 88718-22420 | ||||
| 90099-07087 | ||||
| 90099-07094 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 3 OF 3(8709- )LS130,MS13#,YS132
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LS130,YS132 FRONT |
1 | ||
| 88322-14020 |
LS130 REAR |
1 | ||
| 88321-14021 |
LS130 FRONT |
1 | ||
| 88322-14011 |
LS130,YS132 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LS130,YS132 FRONT |
1 | ||
| 88322-14020 |
LS130 REAR |
1 | ||
| 88321-14021 |
LS130 FRONT |
1 | ||
| 88322-14011 |
LS130,YS132 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
LS130 REAR |
1 | ||
| 88342-14010 |
LS130,YS132 REAR |
1 | ||
| 88341-14020 |
LS130 FRONT |
1 | ||
| 88341-14010 |
LS130,YS132 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
LS130 REAR |
1 | ||
| 88342-14010 |
LS130,YS132 REAR |
1 | ||
| 88341-14020 |
LS130 FRONT |
1 | ||
| 88341-14010 |
LS130,YS132 FRONT |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04370 |
LS130 |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12030 |
LS130,YS132 |
1 | ||
| 88335-14010 |
LS130 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
LS130,YS132 |
2 | ||
| 88343-14020 |
LS130 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
LS130,YS132 |
2 | ||
| 88343-14020 |
LS130 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
LS130,YS132 |
2 | ||
| 88344-14020 |
LS130 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
LS130,YS132 |
2 | ||
| 88344-14020 |
LS130 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN |
1 | ||
| 90096-90022 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
LS130,YS132 |
1 | ||
| 88360-14030 |
MS135;MS133..SAL..GEN;LS130,MS132..GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-30420 |
LS130 |
1 | ||
| 88371-22350 |
LS130 |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
1 | ||
| 88374-12020 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MS132..4F;LS130,MS135,YS132;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 DISCHARGE |
1 | ||
| 88376-22010 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN DISCHARGE |
1 | ||
| 88376-22020 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 SUCTION |
1 | ||
| 88376-22020 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 DISCHARGE |
1 | ||
| 88376-22010 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN DISCHARGE |
1 | ||
| 88376-22020 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 SUCTION |
1 | ||
| 88376-22020 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN SUCTION |
1 | ||
| Common parts | ||||
| 90099-04255 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 90099-13024 | ||||

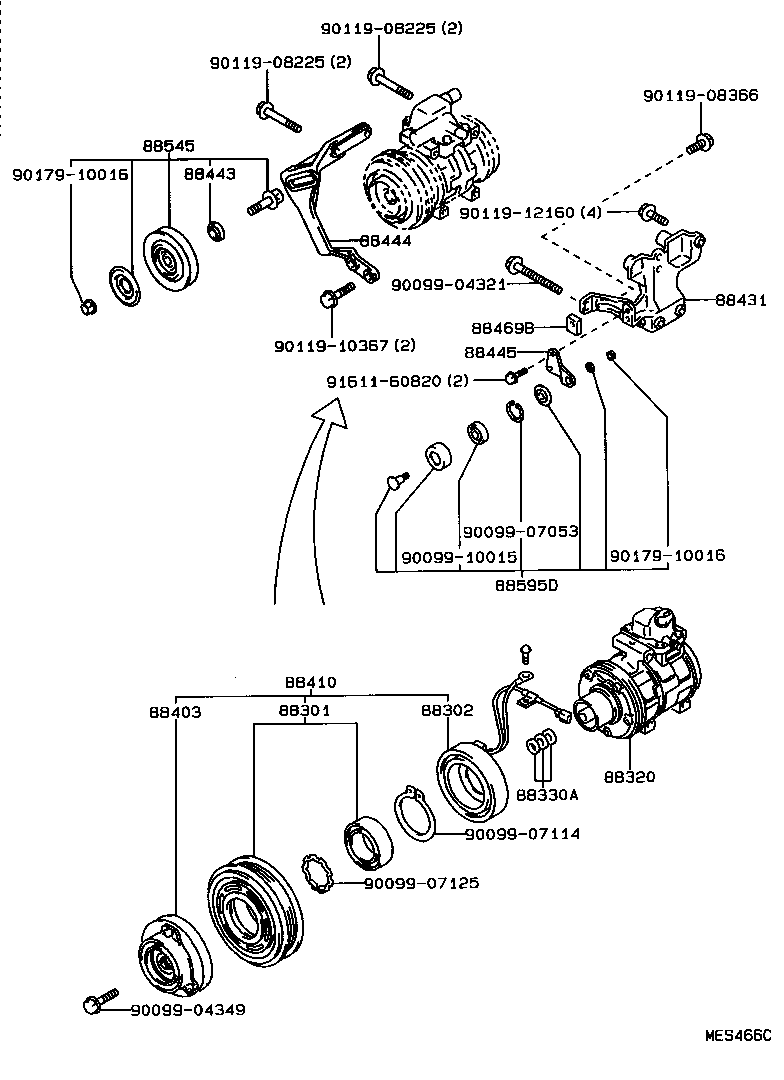

ILLUST NO. 1 OF 2(9110-9308)LS130..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04321 | ||||
| 90099-04349 | ||||
| 90099-07053 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-10015 | ||||
| 90119-08225 | ||||
| 90119-08366 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 90179-10016 | ||||
| 91611-60820 | ||||
