LS130L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)LS130

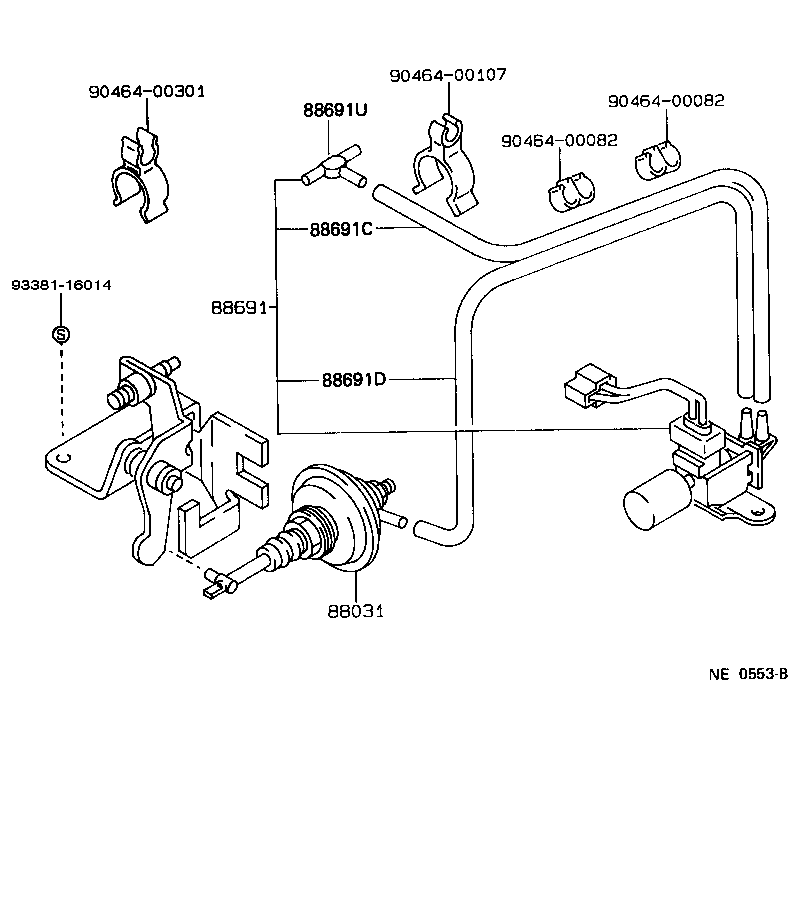

Click highlighted areas on diagram

diagram 88031 88691 88691C 88691D 88691U 9046400082 9046400082 9046400107 9046400301 9338116014
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LS130..LHD

 1
88031-30060

LS130

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-30680

LS130..LHD

 1
88691-90K02

LS130

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LS130

*H,L=300

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92003

LS130

L=600

 1
90999-92003

LS130

L=600

 1
88691U - WAY(FOR VACUUM HOSE)
90413-04001

LS130,MS132..GEN

 1
Common parts
90464-00082
90464-00107
90464-00301
93381-16014
