LS130L-AEKBS (1987)
Toyota Crown

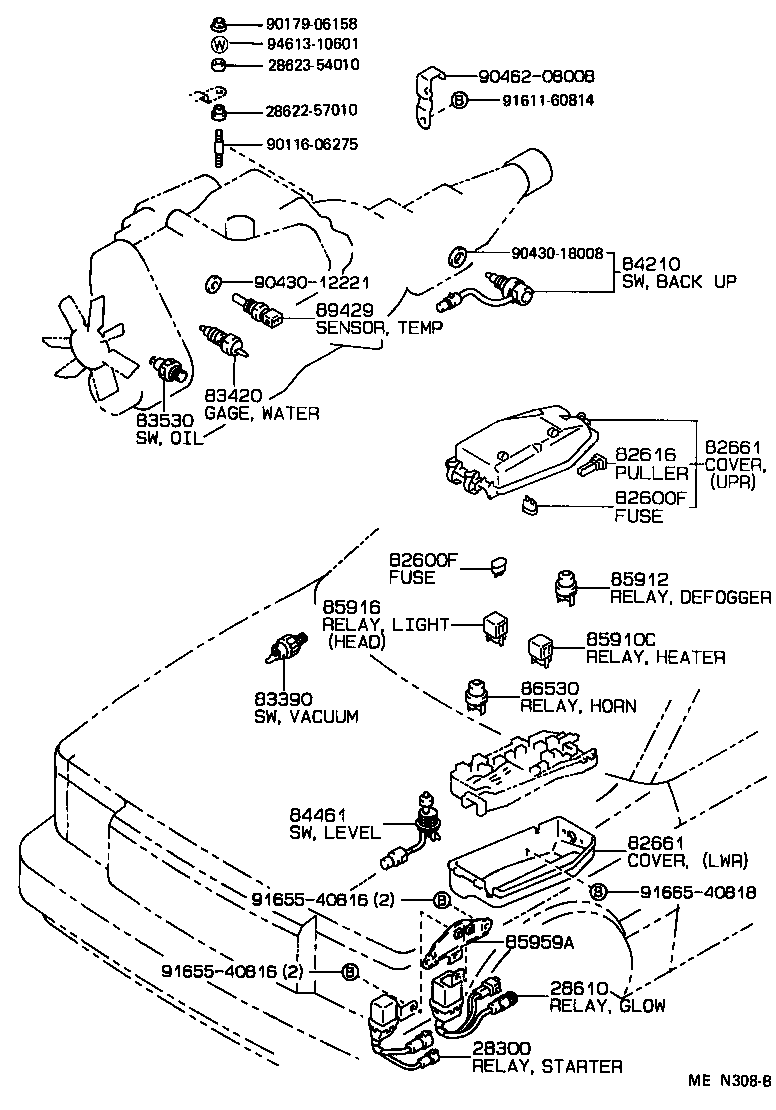

ILLUST NO. 1 OF 8(8709- )LS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54080 |
2L..LS130 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54300 |
2L..LS130 |
1 | ||
| 28610-54250 |
2L..LS130 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
GS131,LS130,MS13#,YS132 7.5A |
1 | ||
| 90982-09005 |
MS135..RHD;GS131,LS130,MS132,133,YS132 7.5A |
2 | ||
| 90982-09004 |
GS131,LS130,MS13#,YS132 20A,YELLOW |
1 | ||
| 90982-09005 |
LS130 7.5A |
6 | ||
| 90982-09003 |
LS130,MS132 15A |
5 | ||
| 90982-09003 |
GS131,LS130,MS13#,YS132 15A |
1 | ||
| 90982-09005 |
GS131,LS130,MS13#,YS132 7.5A |
1 | ||
| 90982-09003 |
LS130,MS132 15A |
5 | ||
| 90982-09003 |
GS131,LS130,MS13#,YS132 15A |
7 | ||
| 90982-09005 |
MS135..RHD;GS131,LS130,MS132,133,YS132 7.5A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
GS131,LS130,MS13#,YS132 7.5A |
1 | ||
| 90982-09005 |
MS135..RHD;GS131,LS130,MS132,133,YS132 7.5A |
2 | ||
| 90982-09004 |
GS131,LS130,MS13#,YS132 20A,YELLOW |
1 | ||
| 90982-09005 |
LS130 7.5A |
6 | ||
| 90982-09003 |
LS130,MS132 15A |
5 | ||
| 90982-09003 |
GS131,LS130,MS13#,YS132 15A |
1 | ||
| 90982-09005 |
GS131,LS130,MS13#,YS132 7.5A |
1 | ||
| 90982-09003 |
LS130,MS132 15A |
5 | ||
| 90982-09003 |
GS131,LS130,MS13#,YS132 15A |
7 | ||
| 90982-09005 |
MS135..RHD;GS131,LS130,MS132,133,YS132 7.5A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-30090 |
LS130,MS13#,YS132..LHD UPPER |
1 | ||
| 82663-30030 |
GS131,LS130,MS13#,YS132..LHD LOWER |
1 | ||
| 82662-30091 |
GS131,LS130,MS13#,YS132..LHD UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-30090 |
LS130,MS13#,YS132..LHD UPPER |
1 | ||
| 82663-30030 |
GS131,LS130,MS13#,YS132..LHD LOWER |
1 | ||
| 82662-30091 |
GS131,LS130,MS13#,YS132..LHD UPPER |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LS130 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LS130 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
LS130 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
MS132..4F;MS132..DLX,ROY,SAL;GS131,LS130,MS133,135,YS132 |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS131,LS130,MS13#,YS132 HEADLAMP |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 90987-02008 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-30040 |
LS130 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LS130 |
1 | ||
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06275 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 91611-60814 | ||||
| 91655-40816 | ||||
| 91665-40818 | ||||
| 94613-10601 | ||||
ILLUST NO. 3 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30110 |
LS130;MS132..LHD..SED..MTM..GEN TAXI SPEC |
1 | ||
| 81980-12070 |
MS135..SED..GCC;MS132..DLX,SAL,STD;GS131,LS130,MS133,YS132..SED |
1 | ||
| 81980-30120 |
LS130,MS132..SED..MTM..GEN TAXI SPEC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
GS131,LS130,MS13#,YS132 7.5A |
1 | ||
| 90982-09005 |
MS135..RHD;GS131,LS130,MS132,133,YS132 7.5A |
2 | ||
| 90982-09004 |
GS131,LS130,MS13#,YS132 20A,YELLOW |
1 | ||
| 90982-09005 |
LS130 7.5A |
6 | ||
| 90982-09003 |
LS130,MS132 15A |
5 | ||
| 90982-09003 |
GS131,LS130,MS13#,YS132 15A |
1 | ||
| 90982-09005 |
GS131,LS130,MS13#,YS132 7.5A |
1 | ||
| 90982-09003 |
LS130,MS132 15A |
5 | ||
| 90982-09003 |
GS131,LS130,MS13#,YS132 15A |
7 | ||
| 90982-09005 |
MS135..RHD;GS131,LS130,MS132,133,YS132 7.5A |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30080 |
MS132,135..RHD;LS130,MS133,YS132..GEN;MS132..LHD..SED..(SAL,STD)..GEN W(UPPER TYPE LICENSE PLATE LAMP) |
1 | ||
| 82641-30030 |
LS130,MS132,133,YS132..(DLX,STD)..GEN |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
MS13#..RHD;GS131,LS130,YS132..ROY,STD 30A |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS131,LS130,MS13#,YS132 HEADLAMP |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 90987-02008 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS131,LS130,MS13#,YS132 HEADLAMP |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 90987-02008 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS131,LS130,MS13#,YS132 HEADLAMP |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 90987-02008 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS131,LS130,MS13#,YS132 HEADLAMP |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 90987-02008 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GS131,LS130,MS13#,YS132 HEADLAMP |
1 | ||
| 90987-02004 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 90987-02008 |
GS131,LS130,MS13#,YS132 TAIL LAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30120 |
GS131,LS130,MS13#,YS132..LHD NO.1 |
1 | ||
| 85940-30120 |
LS130,MS13#,YS132..LHD NO.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30120 |
GS131,LS130,MS13#,YS132..LHD NO.1 |
1 | ||
| 85940-30120 |
LS130,MS13#,YS132..LHD NO.2 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30270 |
GS131,LS130,MS13#,YS132..LHD LH COWL SIDE UPPER |
1 | ||
| 85999-30300 |
GS131,LS130,MS13#,YS132..LHD LH COWL SIDE LOWER |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30270 |
GS131,LS130,MS13#,YS132..LHD LH COWL SIDE UPPER |
1 | ||
| 85999-30300 |
GS131,LS130,MS13#,YS132..LHD LH COWL SIDE LOWER |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30270 |
GS131,LS130,MS13#,YS132..LHD LH COWL SIDE UPPER |
1 | ||
| 85999-30300 |
GS131,LS130,MS13#,YS132..LHD LH COWL SIDE LOWER |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 91651-40612 | ||||
| 91655-40620 | ||||
| 91665-40616 | ||||
ILLUST NO. 6 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84231-12060 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
MS135..GEN;LS130,MS132,133,YS132 MATSUSHITA |
1 | ||
| 84340-32010 |
MS135..GEN;LS130,MS132,133,YS132 TOKAIRIKA |
1 | ||
| 84340-30040 |
MS135..GEN;GS131,LS130,MS132,133,YS132 TOKAIRIKA |
1 | ||
| 84340-30030 |
MS135..GEN;GS131,LS130,MS132,133,YS132 |
2 | ||
| 84340-30030 |
MS135..GEN;GS131,LS130,MS132,133,YS132 MATSUSHITA |
1 | ||
| 84340-30030 |
MS135..GEN;LS130,MS132,133,YS132 |
1 | ||
| 84340-32030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-3010004 |
LS130,YS132 BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84840-30060 |
GS131,LS130,MS13#,YS132..HT,SED GROVE BOX |
1 | ||
| 84840-3010004 |
LS130,MS132,133,YS132..STD BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
LS130,YS132..4F MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
LS130,YS132 MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
LS130,MS132,133,YS132..(DLX,STD)..GEN INSTRUMENT PANEL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS131,LS130,MS13#,YS132 FRONT |
1 | ||
| 85500-30410 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) REAR |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS131,LS130,MS13#,YS132 FRONT |
1 | ||
| 85500-30410 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) REAR |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 85513-28010 |
GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD)..GEN |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GS131,LS130,MS13#,YS132 NO.2,FRONT |
1 | ||
| 85533-30020 |
GS131,LS130,MS13#,YS132 NO.1,FRONT |
1 | ||
| 85533-26010 |
MS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD) |
1 | ||
| 85533-30040 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GS131,LS130,MS13#,YS132 NO.2,FRONT |
1 | ||
| 85533-30020 |
GS131,LS130,MS13#,YS132 NO.1,FRONT |
1 | ||
| 85533-26010 |
MS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD) |
1 | ||
| 85533-30040 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GS131,LS130,MS13#,YS132 NO.2,FRONT |
1 | ||
| 85533-30020 |
GS131,LS130,MS13#,YS132 NO.1,FRONT |
1 | ||
| 85533-26010 |
MS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD) |
1 | ||
| 85533-30040 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90168-40043 | ||||
| 90463-12970 | ||||
| 90468-05014 | ||||
| 93315-14014 | ||||
| 93385-16018 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||

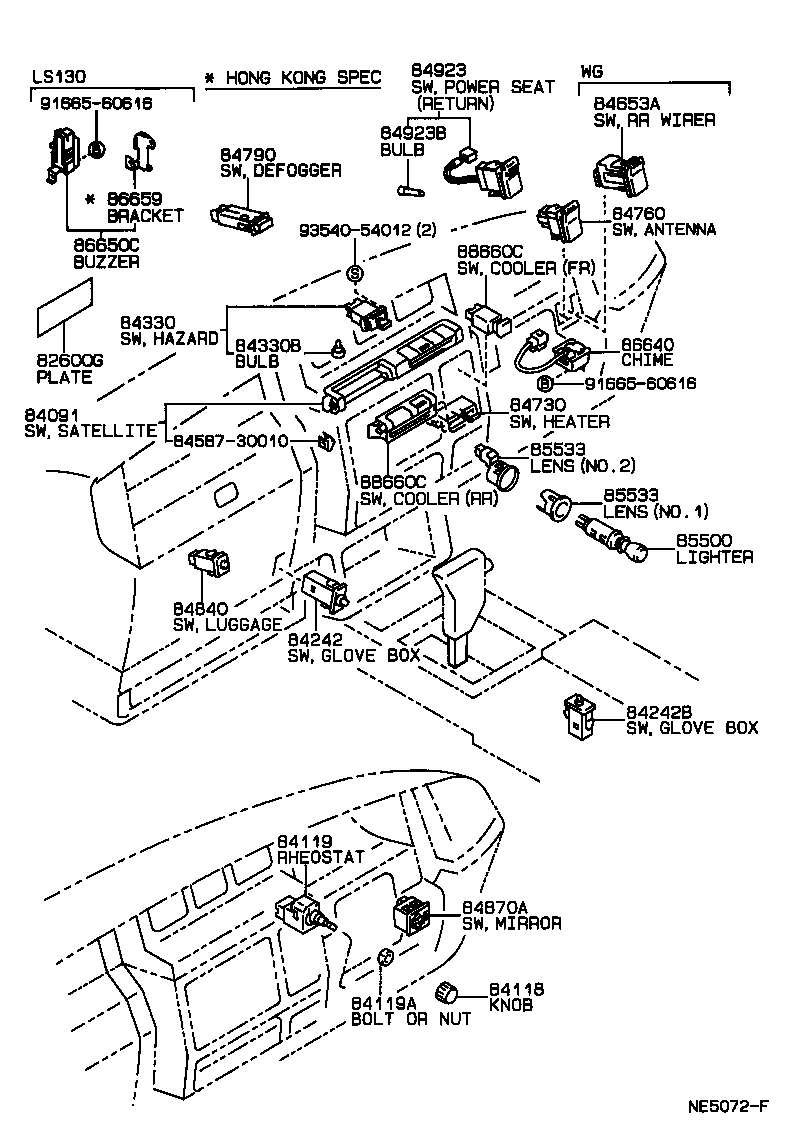

ILLUST NO. 2 OF 8(8709- )LS130..LHD ; (8709- )GS131,MS13#,YS132
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30221 |
YS132;GS131,LS130,MS13#..4F,4FC,4HC,5F |
1 | ||
| 84332-30220 |
YS132;GS131,LS130,MS13#..4F,4FC,4HC,5F |
1 | ||
| 84332-30200 |
LS130..LHD;GS131,MS13#,YS132 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10310 |
LS130..LHD;GS131,MS13#,YS132 14V 0.91W |
1 | ||
| 84999-10420 |
YS132;GS131,LS130,MS13#..4F,4FC,4HC,5F 14V 0.84W |
1 | ||
| 84999-10090 |
LS130..LHD;GS131,MS13#,YS132 12V 1.8W |
1 | ||
| 84999-10170 |
LS130..LHD;GS131,MS13#,YS132 12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30220 |
GS131,LS130,YS132..LHD;MS132,133..DLX,SAL,SALEX,STD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30171 |
GS131,LS130,MS132,133,YS132..DLX,SAL,SALEX,STD |
1 | ||
| 84790-30170 |
LS130,MS132,133,YS132..DLX,SAL,SALEX,STD |
1 | ||
| 84790-30170 |
MS132..4F;MS132..DLX,SAL;LS130,MS133,YS132 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-3010004 |
LS130,YS132 BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84840-30060 |
GS131,LS130,MS13#,YS132..HT,SED GROVE BOX |
1 | ||
| 84840-3010004 |
LS130,MS132,133,YS132..STD BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
LS130,YS132..4F MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
LS130,YS132 MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
LS130,MS132,133,YS132..(DLX,STD)..GEN INSTRUMENT PANEL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
GS131,LS130,MS13#,YS132 FRONT |
1 | ||
| 85500-30410 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) REAR |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GS131,LS130,MS13#,YS132 NO.2,FRONT |
1 | ||
| 85533-30020 |
GS131,LS130,MS13#,YS132 NO.1,FRONT |
1 | ||
| 85533-26010 |
MS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD) |
1 | ||
| 85533-30040 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GS131,LS130,MS13#,YS132 NO.2,FRONT |
1 | ||
| 85533-30020 |
GS131,LS130,MS13#,YS132 NO.1,FRONT |
1 | ||
| 85533-26010 |
MS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD) |
1 | ||
| 85533-30040 |
MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-30080 |
LS130..LHD |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-30090 |
MS132..GCC;MS132..STD;LS130,MS133,YS132..LHD |
1 | ||
| 84660-30090 |
MS132..4F,4HC;MS132..DLX..GCC;LS130,YS132..LHD |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-30090 |
MS132..GCC;MS132..STD;LS130,MS133,YS132..LHD |
1 | ||
| 84660-30090 |
MS132..4F,4HC;MS132..DLX..GCC;LS130,YS132..LHD |
1 | ||
| Common parts | ||||
| 84587-30010 | ||||
| 91665-60616 | ||||
| 93540-54012 | ||||
ILLUST NO. 4 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-54370 |
2L..LS130 |
1 | ||
| 28521-54320 |
2L..LS130 |
1 | ||
| 28521-54420 |
2L..LS130 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54140 |
2L..LS130 |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-30020 |
LS130..LHD |
1 | ||
| Common parts | ||||
| 90159-50240 | ||||
| 91651-40612 | ||||
| 91666-40618 | ||||
| 93567-55016 | ||||
ILLUST NO. 5 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39515 |
LS130,MS132,133,YS132..LHD..(DLX,SAL,STD) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30110 |
MS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30680 |
LS130,MS132,133,YS132..LHD..(DLX,SAL,STD) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GS131..4FC;GS131..SAL;LS130,MS13#,YS132 |
1 | ||
| 84312-12040 |
MS135..V;MS135..SED;GS131,LS130,MS132,133,YS132 |
1 | ||
| 84312-12040 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30181 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 84450-30220 |
LS130,MS132,133,YS132..STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30230 |
MS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 7 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84231-30080 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84231-20120 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84231-30080 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 84231-20120 |
GS131,LS130,MS13#,YS132 |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
ILLUST NO. 8 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39835 |
LS130 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39835 |
LS130 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-30070 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 84231-30090 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-30070 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 84231-30090 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-30070 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90159-50048 | ||||
| 90170-10179 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
| 93319-14010 | ||||

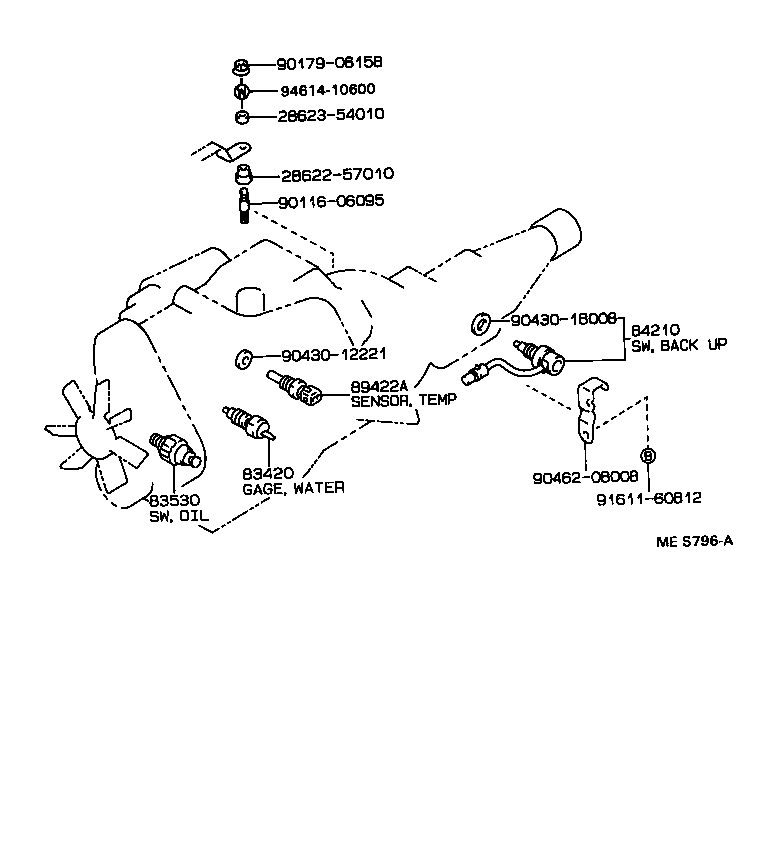

ILLUST NO. 1 OF 8(9110-9512)LS130
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06095 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 94614-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
