LS130L-AEKBS (1987)
Toyota Crown
(8709- )LS130

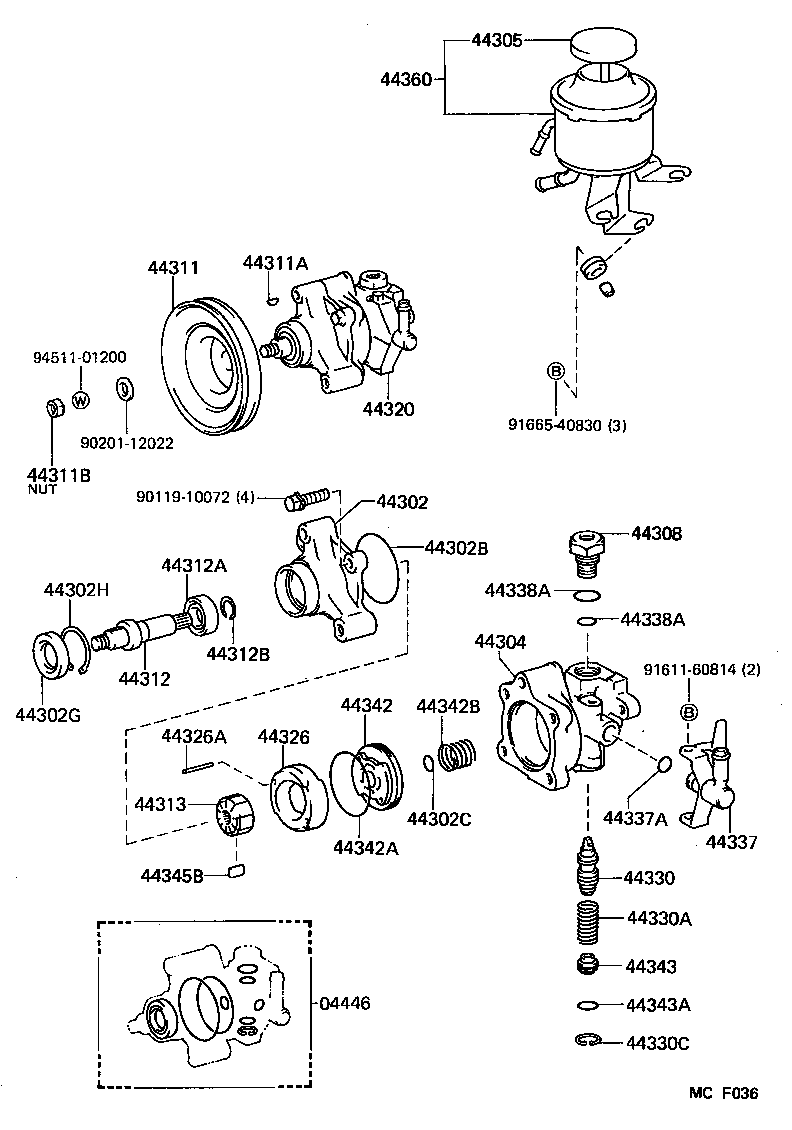

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30060 |
LS130,MS132,133 |
1 | ||
| 04446-30060 |
LS130,MS132,133,YS132 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22020 |
LS130 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
LS130,MS132,133,YS132 |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
LS130,MS132,133,YS132 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24006 |
LS130,MS132,133,YS132 |
1 | ||
| 90311-24006 |
LS130,MS132,133 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
LS130,MS132,133,YS132 |
1 | ||
| 90521-44002 |
LS130,MS132,133 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-30051 |
LS130 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 44305-12010 |
LS130,MS13#,YS132 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-30060 |
LS130,MS132,133,YS132 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22070 |
LS130 |
1 | ||
| 44311-30040 |
LS130 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 90280-05008 |
GS131,LS130,MS13# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90170-12011 |
LS130,MS132,133 |
1 | ||
| 90170-12011 |
LS130,MS132,133,YS132 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
LS130,MS132,133 |
1 | ||
| 44312-12010 |
LS130,MS132,133,YS132 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
LS130,MS132,133,YS132 |
1 | ||
| 90363-17004 |
LS130,MS132,133 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
LS130,MS132,133,YS132 |
1 | ||
| 90520-15001 |
LS130,MS132,133 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12050 |
LS130,MS132,133,YS132 MARK 4 |
1 | ||
| 44313-12010 |
LS130,MS13#,YS132 NO MARK |
1 | ||
| 44313-12020 |
LS130,MS132,133,YS132 MARK 1 |
1 | ||
| 44313-12040 |
LS130,MS13#,YS132 MARK 3 |
1 | ||
| 44313-12010 |
LS130,MS132,133,YS132 NO MARK |
1 | ||
| 44313-12030 |
LS130,MS13#,YS132 MARK 2 |
1 | ||
| 44313-12020 |
LS130,MS13#,YS132 MARK 1 |
1 | ||
| 44313-12030 |
LS130,MS132,133,YS132 MARK 2 |
1 | ||
| 44313-22070 |
GS131,LS130,MS13#,YS132 MARK 3 |
1 | ||
| 44313-12050 |
LS130,MS13#,YS132 MARK 4 |
1 | ||
| 44313-22060 |
GS131,LS130,MS13#,YS132 MARK 2 |
1 | ||
| 44313-22040 |
GS131,LS130,MS13#,YS132 NO MARK |
1 | ||
| 44313-22080 |
GS131,LS130,MS13#,YS132 MARK 4 |
1 | ||
| 44313-22050 |
GS131,LS130,MS13#,YS132 MARK 1 |
1 | ||
| 44313-12040 |
LS130,MS132,133,YS132 MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30340 |
LS130 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12040 |
LS130,MS132,133,YS132 MARK 3 |
1 | ||
| 44325-12010 |
LS130,MS132,133,YS132 NO MARK |
1 | ||
| 44325-12030 |
LS130,MS132,133,YS132 MARK 2 |
1 | ||
| 44325-12050 |
LS130,MS132,133,YS132 MARK 4 |
1 | ||
| 44325-12020 |
LS130,MS132,133,YS132 MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
LS130,MS132,133,YS132 L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30100 |
GS131,LS130,MS13#,YS132 MARK A |
1 | ||
| 44330-30110 |
GS131,LS130,MS13#,YS132 MARK B |
1 | ||
| 44330-30150 |
GS131,LS130,MS13#,YS132 MARK F |
1 | ||
| 44330-30130 |
GS131,LS130,MS13#,YS132 MARK D |
1 | ||
| 44330-30140 |
GS131,LS130,MS13#,YS132 MARK E |
1 | ||
| 44330-32130 |
GS131,LS130,MS13#,YS132 MARK A |
1 | ||
| 44330-32150 |
GS131,LS130,MS13#,YS132 MARK C |
1 | ||
| 44330-32180 |
GS131,LS130,MS13#,YS132 MARK F |
1 | ||
| 44330-32160 |
GS131,LS130,MS13#,YS132 MARK D |
1 | ||
| 44330-32140 |
GS131,LS130,MS13#,YS132 MARK B |
1 | ||
| 44330-30120 |
GS131,LS130,MS13#,YS132 MARK C |
1 | ||
| 44330-32170 |
GS131,LS130,MS13#,YS132 MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GS131,LS130,MS132,133,YS132 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-30010 |
LS130 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
LS130,MS135 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
LS130,MS13#,YS132 OD=25.5,ID=22.5,OUTER |
1 | ||
| 96711-19014 |
LS130,MS13#,YS132 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
LS130,MS13#,YS132 OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
LS130,MS13#,YS132 OD=17.0,ID=13.0,INNER |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
LS130,MS13#,YS132 OD=25.5,ID=22.5,OUTER |
1 | ||
| 96711-19014 |
LS130,MS13#,YS132 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
LS130,MS13#,YS132 OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
LS130,MS13#,YS132 OD=17.0,ID=13.0,INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
LS130,MS132,133,YS132 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
LS130,MS132,133,YS132 |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
LS130,MS132,133,YS132 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
GS131,LS130,MS132,133,YS132 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
GS131,LS130,MS132,133,YS132 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
GS131,LS130,MS13#,YS132 L=14.995 |
10 | ||
| 44345-12030 |
GS131,LS130,MS13#,YS132 L=14.993 |
10 | ||
| 44345-12010 |
GS131,LS130,MS13#,YS132 L=14.997 |
10 | ||
| 44345-12040 |
GS131,LS130,MS13#,YS132 L=14.991 |
10 | ||
| 44345-12050 |
GS131,LS130,MS13#,YS132 L=14.989 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-30110 |
LS130..LHD |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90201-12022 | ||||
| 91611-60814 | ||||
| 91665-40830 | ||||
| 94511-01200 | ||||
