LS130L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)YS132 ; (8709-8908)GS131,LS130,MS132,133..4F,5F

Click highlighted areas on diagram

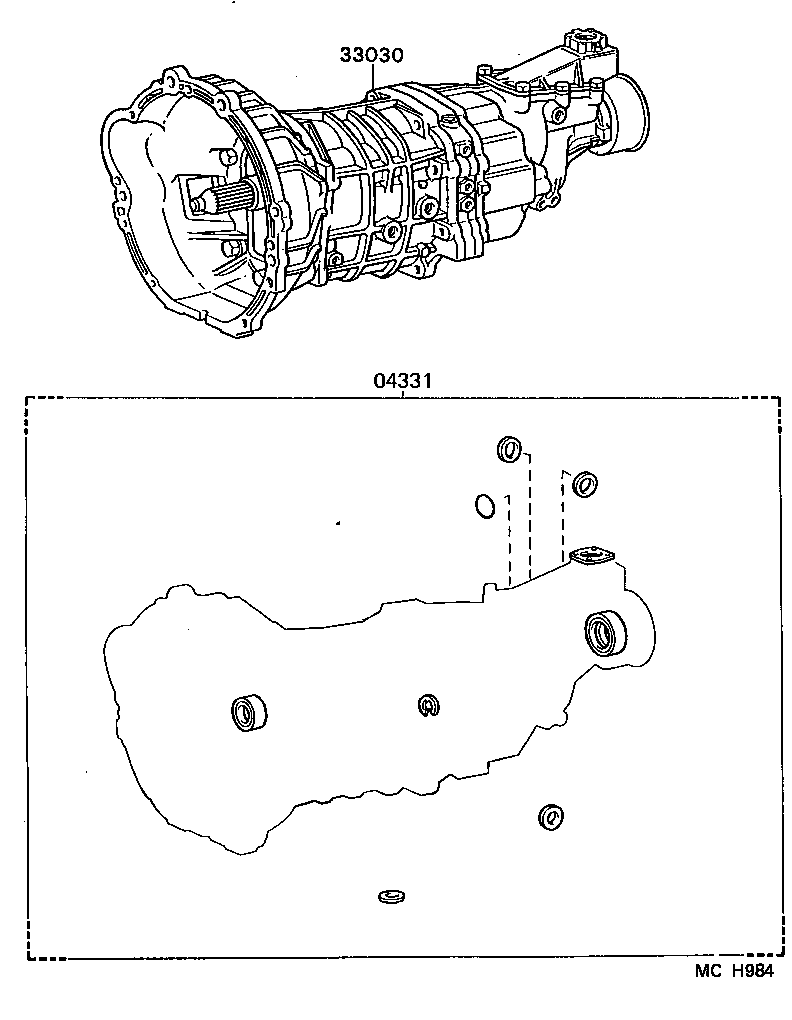

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-20050

YS132;GS131,LS130,MS132,133..4F,5F

 1
04331-22040

YS132;GS131,LS130,MS132,133..4F,5F

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-3A290

LS130..4F

 1

(8908- )YS132 ; (8908- )GS131,LS130,MS132,133..4F,5F

Click highlighted areas on diagram

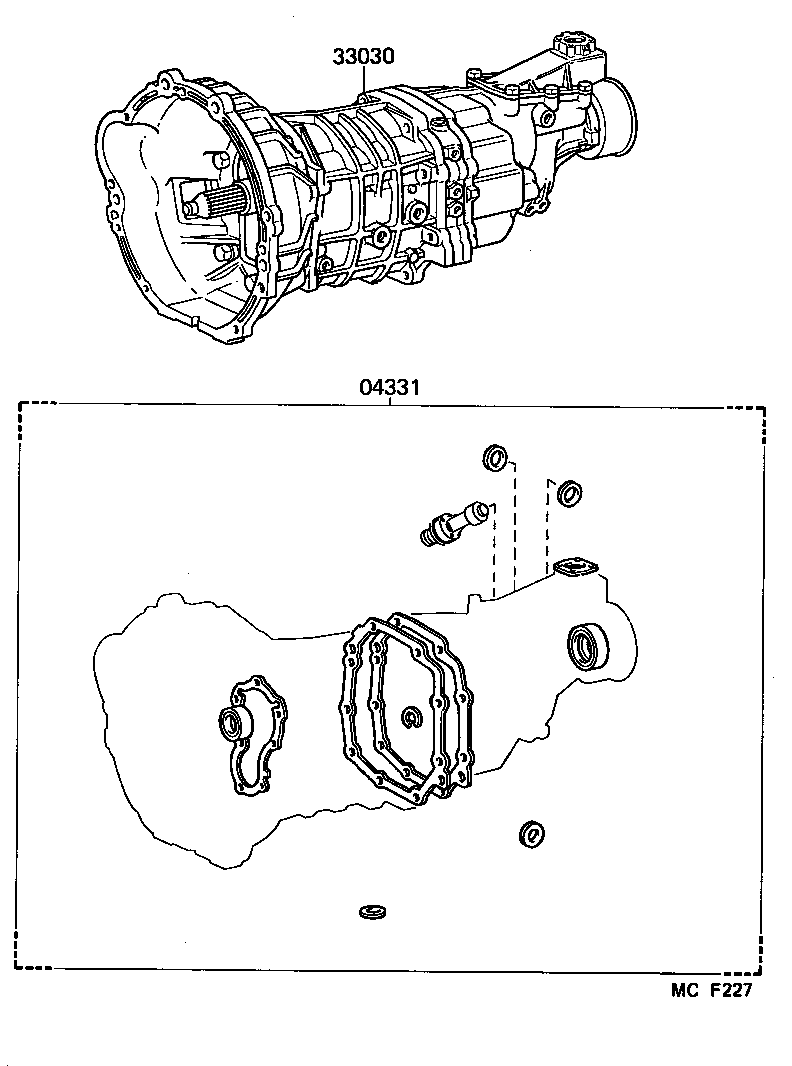

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-20050

YS132;GS131,LS130,MS132,133..4F,5F

 1
04331-22040

YS132;GS131,LS130,MS132,133..4F,5F

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-3A290

LS130..4F

 1
