Toyota Crown LS130 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
GR
CROWN
LS130L-AEKBS (1987)
1106 - TIMING GEAR COVER & REAR END PLATE

LS130L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 2L

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8709-8908)2L

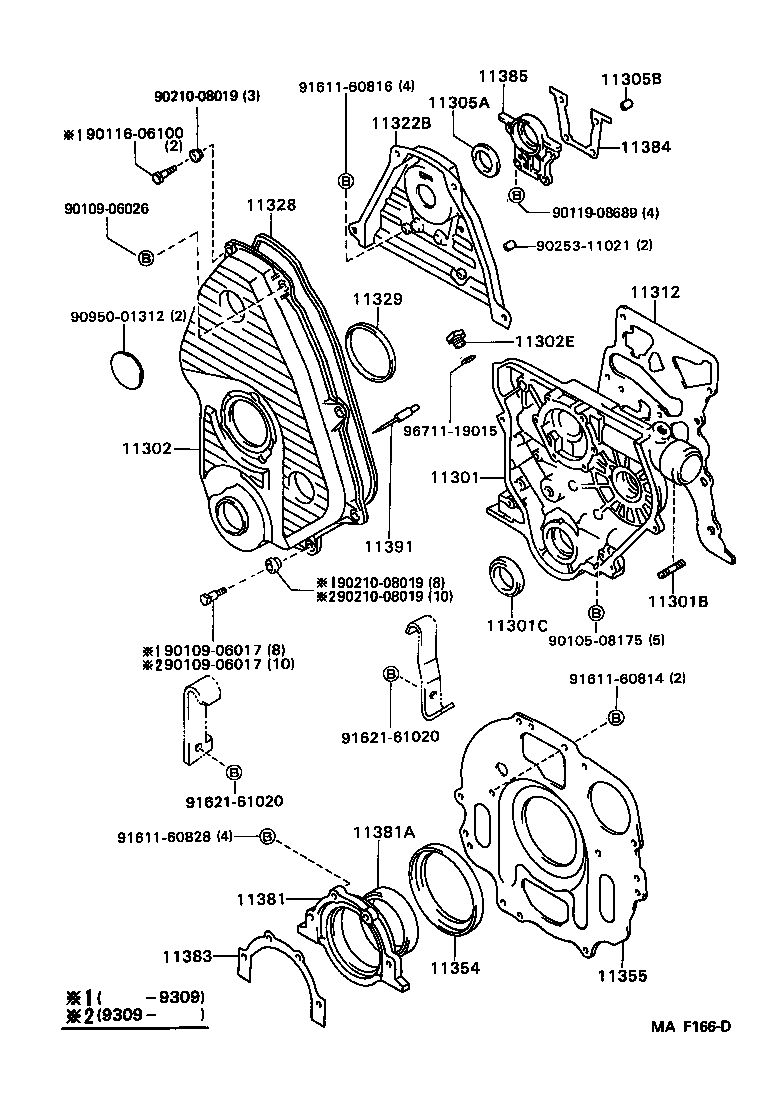

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54050	2L..LS130	08/1989 - 08/1991	1
11311-54022	2L..LS130	09/1987 - 08/1989	1
11311-54051	2L..LS130	08/1991 - 10/1991	1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
92132-60828	2L..LS130	09/1987 - 10/1991	2
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42026	2L..LS130	02/1991 - 10/1991	1
90311-42012	2L..LS130	08/1989 - 02/1991	1
90311-42012	2L..LS130	09/1987 - 08/1989	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-54020	2L..LS130	08/1989 - 10/1991	1
11321-54014	2L..LS130	09/1987 - 08/1989	1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004	2L..LS130	09/1987 - 10/1991	1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017	2L..LS130	02/1991 - 10/1991	1
90311-42003	2L..LS130	09/1987 - 08/1989	1
90311-32001	2L..LS130	08/1989 - 02/1991	1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11001	2L..LS130	09/1987 - 08/1989	2
90253-11021	2L..LS130	08/1989 - 10/1991	2
11312 - GASKET, FRONT END PLATE
11312-54013	2L..LS130	09/1987 - 08/1989	1
11312-54021	2L..LS130	08/1989 - 10/1991	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54010	2L..LS130	09/1987 - 08/1989	1
11328-54021	2L..LS130	08/1989 - 10/1991	1
11329 - GASKET, TIMING GEAR REAR COVER
11329-54011	2L..LS130	09/1987 - 08/1989	1
11329-54021	2L..LS130	08/1989 - 10/1991	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010	2L..LS130	09/1987 - 10/1991	1
11355 - PLATE, REAR END
11355-54030	2L..LS130	09/1987 - 10/1991	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-54010	2L..LS130	09/1987 - 08/1988	1
11381-54020	2L..LS130	08/1988 - 10/1991	1
11381A - SEAL, ENGINE REAR OIL
90311-85006	2L..LS130	02/1991 - 10/1991	1
90311-85004	2L..LS130	09/1987 - 02/1991	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-54030	2L..LS130	07/1991 - 10/1991	1
11383-54020	2L..LS130	08/1988 - 07/1991	1
11383-54010	2L..LS130	09/1987 - 08/1988	1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-54030	2L..LS130	07/1991 - 10/1991	1
11384-54020	2L..LS130	08/1989 - 07/1991	1
11384-54010	2L..LS130	09/1987 - 08/1989	1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-54010	2L..LS130	09/1987 - 08/1989	1
11382-54020	2L..LS130	08/1989 - 10/1991	1
11391 - POINTER, TIMING
11391-54020	2L..LS130	08/1989 - 10/1991	1
11391-54010	2L..LS130	09/1987 - 08/1989	1
11492A - PLATE, WATER SEAL
11492-54010	2L..LS130	09/1987 - 08/1989	1
Common parts
90105-08175
90109-06017
90109-06026
90210-08019
90480-07001
90950-01312
91611-60814
91611-60828
91611-60830
91611-60840
91611-G1020
96711-19015

(8908- )2L

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54050	2L..LS130	08/1989 - 08/1991	1
11311-54022	2L..LS130	09/1987 - 08/1989	1
11311-54051	2L..LS130	08/1991 - 10/1991	1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
92132-60828	2L..LS130	09/1987 - 10/1991	2
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42026	2L..LS130	02/1991 - 10/1991	1
90311-42012	2L..LS130	08/1989 - 02/1991	1
90311-42012	2L..LS130	09/1987 - 08/1989	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-54020	2L..LS130	08/1989 - 10/1991	1
11321-54014	2L..LS130	09/1987 - 08/1989	1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004	2L..LS130	09/1987 - 10/1991	1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017	2L..LS130	02/1991 - 10/1991	1
90311-42003	2L..LS130	09/1987 - 08/1989	1
90311-32001	2L..LS130	08/1989 - 02/1991	1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11001	2L..LS130	09/1987 - 08/1989	2
90253-11021	2L..LS130	08/1989 - 10/1991	2
11312 - GASKET, FRONT END PLATE
11312-54013	2L..LS130	09/1987 - 08/1989	1
11312-54021	2L..LS130	08/1989 - 10/1991	1
11322B - COVER, TIMING BELT, NO.2
11322-54020	2L..LS130	08/1989 - 10/1991	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54010	2L..LS130	09/1987 - 08/1989	1
11328-54021	2L..LS130	08/1989 - 10/1991	1
11329 - GASKET, TIMING GEAR REAR COVER
11329-54011	2L..LS130	09/1987 - 08/1989	1
11329-54021	2L..LS130	08/1989 - 10/1991	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010	2L..LS130	09/1987 - 10/1991	1
11355 - PLATE, REAR END
11355-54030	2L..LS130	09/1987 - 10/1991	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-54010	2L..LS130	09/1987 - 08/1988	1
11381-54020	2L..LS130	08/1988 - 10/1991	1
11381A - SEAL, ENGINE REAR OIL
90311-85006	2L..LS130	02/1991 - 10/1991	1
90311-85004	2L..LS130	09/1987 - 02/1991	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-54030	2L..LS130	07/1991 - 10/1991	1
11383-54020	2L..LS130	08/1988 - 07/1991	1
11383-54010	2L..LS130	09/1987 - 08/1988	1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-54030	2L..LS130	07/1991 - 10/1991	1
11384-54020	2L..LS130	08/1989 - 07/1991	1
11384-54010	2L..LS130	09/1987 - 08/1989	1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-54010	2L..LS130	09/1987 - 08/1989	1
11382-54020	2L..LS130	08/1989 - 10/1991	1
11391 - POINTER, TIMING
11391-54020	2L..LS130	08/1989 - 10/1991	1
11391-54010	2L..LS130	09/1987 - 08/1989	1
Common parts
90105-08175
90109-06017
90109-06026
90116-06100
90119-08689
90210-08019
90253-11021
90480-07001
90950-01312
91611-60814
91611-60816
91611-60828
91611-G1020
96711-19015

(9110-9512)2L

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-08175
90109-06017
90109-06026
90116-06100
90119-08689
90210-08019
90253-11021
90950-01312
91611-60814
91611-60816
91611-60828
91621-61020
96711-19015

LS130L-AEKBS (1987)

(8709-8908)2L

(8908- )2L

(9110-9512)2L

Part Price Details
