LS120R-SEMGS (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS120 ; (8401- )RHD..4FC..SAL

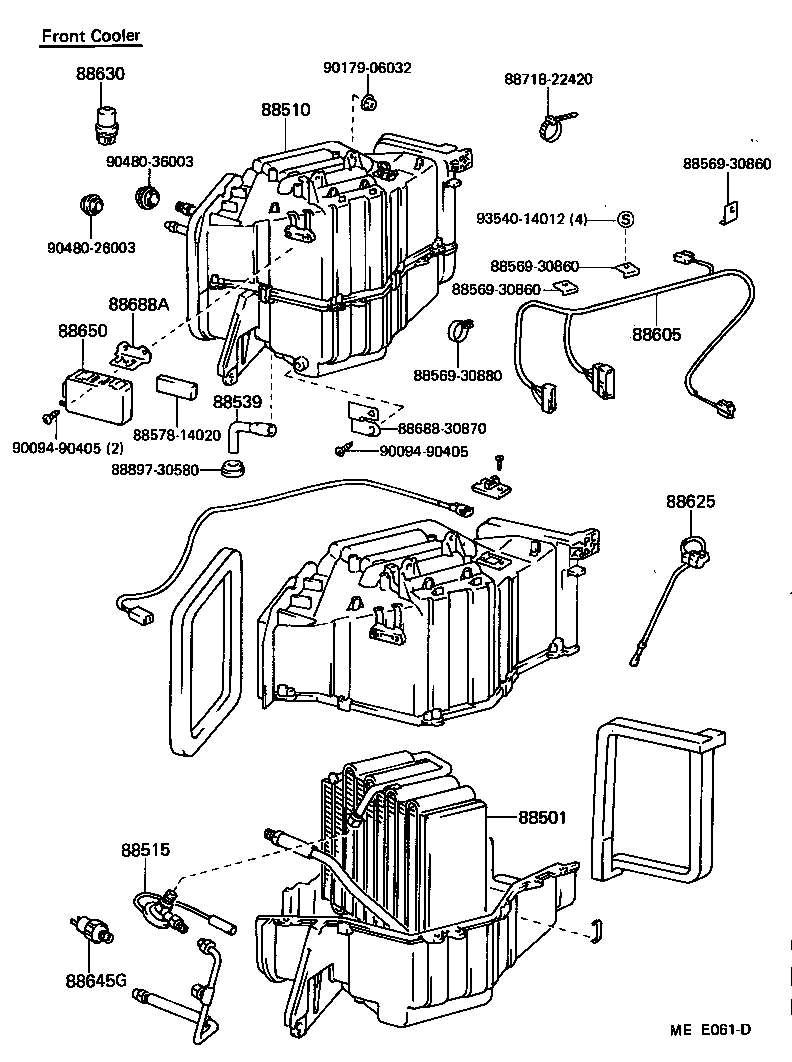

Click highlighted areas on diagram

SINGAPORE SPEC

diagram 88501 88510 88515 88539 8856930860 8856930860 8856930860 8856930880 8857814020 88605 88625 88630 88645G 88650 8868830870 88688A 8871822420 8889730580 9009490405 9009490405 9017906032 9048026003 9048036003 9354014012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30610

LS120..RHD

 1
88510 - UNIT ASSY, COOLER
88510-3A070

LS120..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

LS120,YS120

FR COOLER

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30590

LS120,MS12#,YS120

FR COOLER

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30500

YS120;LS120..4F,5F;LS120..LHD..STD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20040

LS120,YS120

FR COOLER

 1
88630 - RELAY ASSY, COOLER
90987-03001

LS120,MS12#,YS120

B4 TYPE,FR COOLER

 3
88645G - SWITCH, PRESSURE
88645-12010

LS120

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14051

LS120..4F,5F;LS120..LHD..STD

FR COOLER

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-30830

LS120

 1
Common parts
88569-30860
88569-30880
88578-14020
88688-30870
88718-22420
88897-30580
90094-90405
90179-06032
90480-26003
90480-36003
93540-14012
