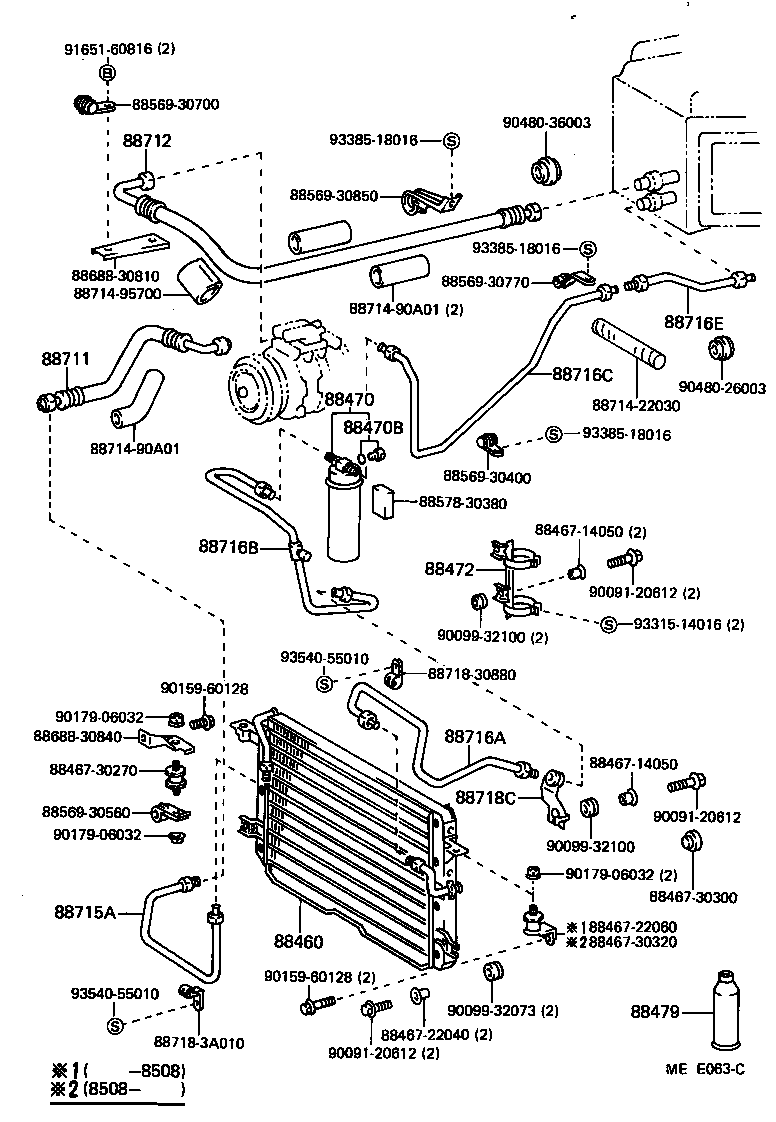

Toyota Crown LS120 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-30490	LS120	08/1983 - 09/1985	1
88460-30530	LS120	09/1985 - 08/1987	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30310	LS120..RHD	03/1987 - 08/1987	1
88470-14010	LS120	08/1983 - 03/1987	1
88470B - BOLT, FUSE
88475-12020	LS120,MS12#,YS120	08/1983 - 08/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30270	LS120	08/1983 - 08/1987	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	LS120,MS12#,YS120 400G,400G	08/1983 - 08/1987	3
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30600	LS120	08/1983 - 08/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30800	LS120..RHD	08/1983 - 08/1987	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30330	LS120,YS120	08/1983 - 08/1987	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30720	LS120,YS120	08/1983 - 08/1987	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30691	LS120,YS120	09/1985 - 08/1987	1
88726-30690	LS120,MS12#,YS120	08/1983 - 09/1985	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30700	LS120,YS120..RHD	08/1983 - 09/1985	1
88726-30700	LS120..RHD	09/1985 - 08/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30840	LS120..RHD	08/1983 - 08/1987	1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-3A040	LS120	08/1983 - 08/1987	1
Common parts
88467-14050
88467-22040
88467-22060
88467-30270
88467-30300
88467-30320
88569-30400
88569-30560
88569-30700
88569-30770
88569-30850
88578-30380
88688-30810
88688-30840
88714-22030
88714-90A01
88714-95700
88718-30880
88718-3A010
90091-20612
90099-32073
90099-32100
90159-60128
90179-06032
90480-26003
90480-36003
91651-60816
93315-14016
93385-18016
93540-55010

LS120R-SEKBS (1983)

(8308- )LS120..RHD
