LS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )SED,WG

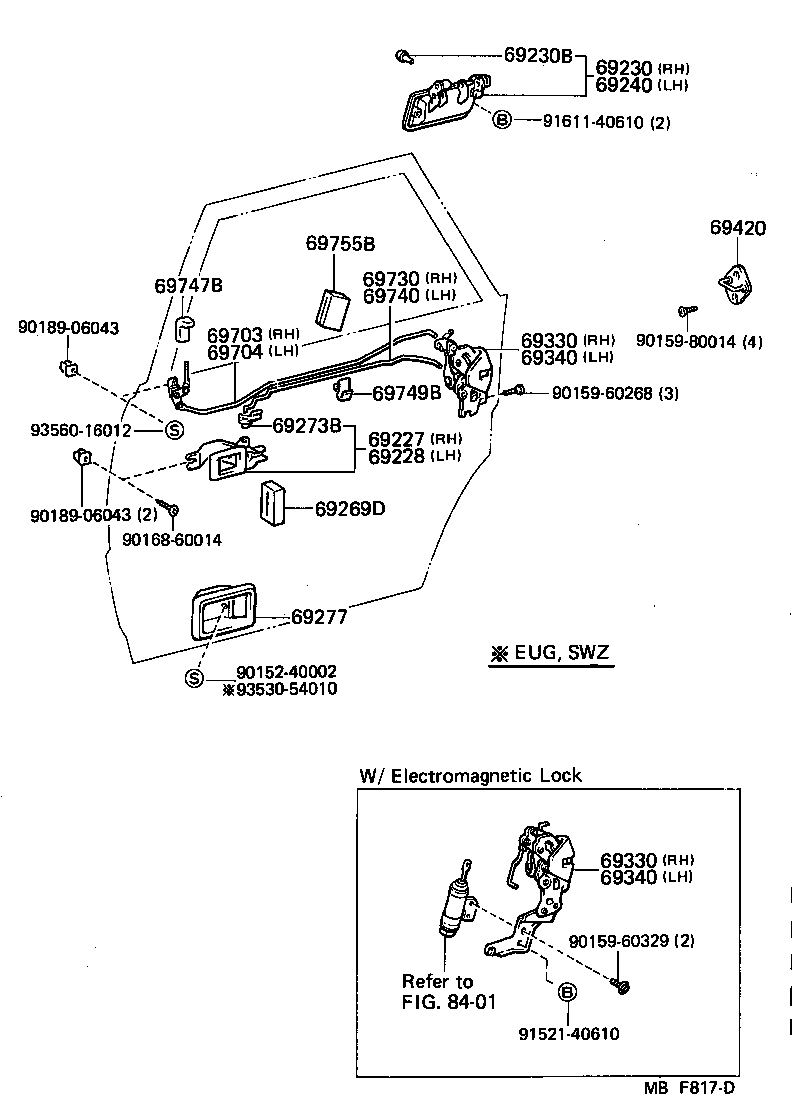

Click highlighted areas on diagram

diagram 69227 69228 69230 69230B 69240 69269D 69273B 69277 69330 69330 69340 69340 69420 69703 69704 69730 69740 69747B 69749B 69755B 8401 9015240002 9015960268 9015960329 9015980014 9016860014 9018906043 9018906043 9152140610 9161140610 9353054010 9356016012
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-30020

LS120,MS12#,YS120

 1
69205-30030

LS120,MS12#,YS120

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-30020

LS120,MS12#,YS120

 1
69206-30030

LS120,MS12#,YS120

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-30070

LS120,MS12#,YS120..SED,WG

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

LS120,MS12#,YS120

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-30080

LS120,MS12#,YS120..SED,WG

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69759-24020

LS120,MS12#,YS120

LH

 1
69759-24010

LS120,MS12#,YS120

RH

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-30040

LS120,MS12#,YS120..ARL,GEN,SAA

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-30240

LS120,YS120

 1
69330-30170

LS120,YS120..STD

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-30240

LS120,YS120

 1
69330-30170

LS120,YS120..STD

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30170

LS120,YS120..STD

 1
69340-30240

LS120,YS120

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30170

LS120,YS120..STD

 1
69340-30240

LS120,YS120

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

LS120,MS12#,YS120

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-30090

LS120,MS12#,YS120

 1
69770-30110

LS120,MS12#,YS120..SED,WG

 2
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-30080

LS120,MS12#,YS120..SED,WG

 2
69780-30060

LS120,MS12#,YS120

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-30060

LS120,MS12#,YS120..SED,WG

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-30060

LS120,MS12#,YS120..SED,WG

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3003004

LS120,MS12#,YS120

BLUE,BLUE,TRIM8#

 2
69741-3003014

LS120,MS12#,YS120

BLUE,BLUE,TRIM8#

 2
69741-3003005

MS12#,YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 2
69741-3003006

LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)

BROWN,BROWN,TRIM4#

 2
69741-3003004

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30020

LS120,MS12#,YS120..SED,WG

 2
69755B - SILENCER, REAR DOOR LOCK LINK
69759-30021

LS120,MS12#,YS120

 2
Common parts
90152-40002
90159-60268
90159-60329
90159-80014
90168-60014
90189-06043
91521-40610
91611-40610
93530-54010
93560-16012
Linked diagrams
8401
