LS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

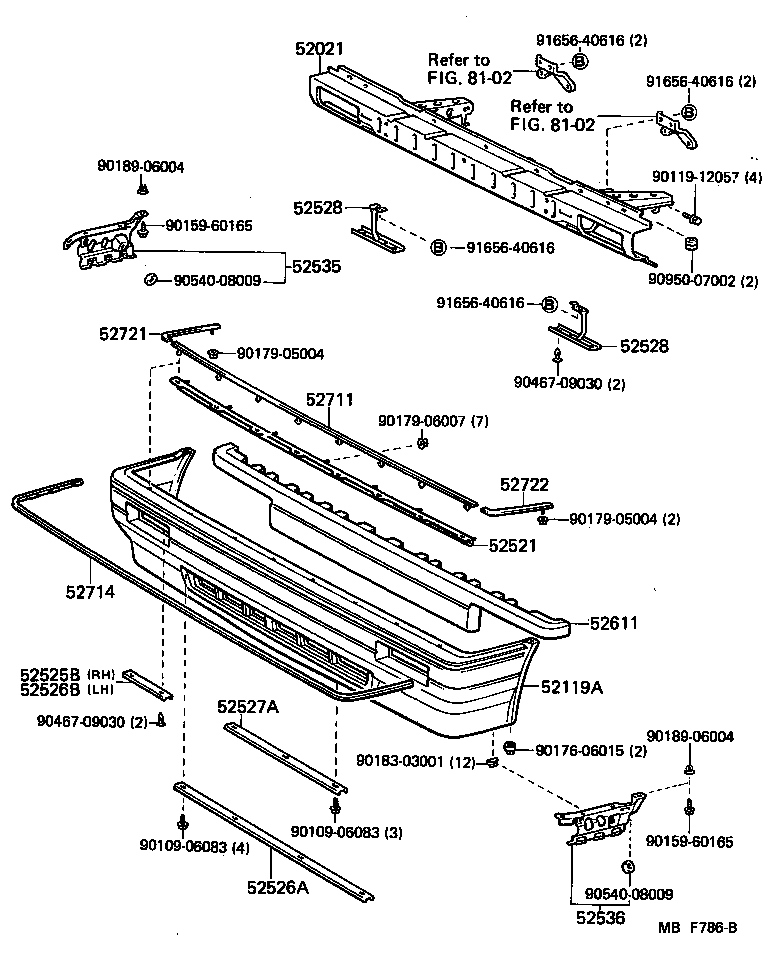

(8308- )WG ; (8308- )LS120 ; (8308- )MS122,YS120..DLX,STD

Click highlighted areas on diagram

diagram 52021 52119A 52521 52525B 52526A 52526B 52527A 52528 52528 52535 52536 52611 52711 52714 52721 52722 8102 8102 9010906083 9010906083 9011912057 9015960165 9015960165 9017606015 9017905004 9017905004 9017906007 9018303001 9018906004 9018906004 9046709030 9046709030 9054008009 9054008009 9095007002 9165640616 9165640616 9165640616 9165640616
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-30070

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52119A - COVER, FRONT BUMPER
52119-30904

LS120;MS122..WG;YS120..STD

 1
52119-30904

MS122..WG;LS120,MS122,YS120..DLX,STD

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-30020

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52567-30010

LS120;MS122..WG;YS120..STD

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-30021

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52526-30020

LS120;MS122..WG;YS120..STD

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52567-30010

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-30010

LS120,MS12#,YS120

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-30010

LS120;MS122..WG;YS120..STD

 2
52528-30011

LS120;MS122..WG;MS122,YS120..DLX,STD

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-30010

LS120;MS122..WG;YS120..STD

 2
52528-30011

LS120;MS122..WG;MS122,YS120..DLX,STD

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30040

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-30040

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30020

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52711 - MOULDING, FRONT BUMPER
52711-30020

LS120,MS12#,YS120

 1
52714 - PLUG, FRONT BUMPER MOULDING, LH
52714-30010

LS120;MS122..WG;MS122,YS120..DLX,STD

 1
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-30010

LS120,MS12#,YS120

 1
52722 - MOULDING, FRONT BUMPER EXTENSION, LH
52722-30010

LS120,MS12#,YS120

 1
Common parts
90109-06083
90119-12057
90159-60165
90176-06015
90179-05004
90179-06007
90183-03001
90189-06004
90467-09030
90540-08009
90950-07002
91656-40616
Linked diagrams
8102

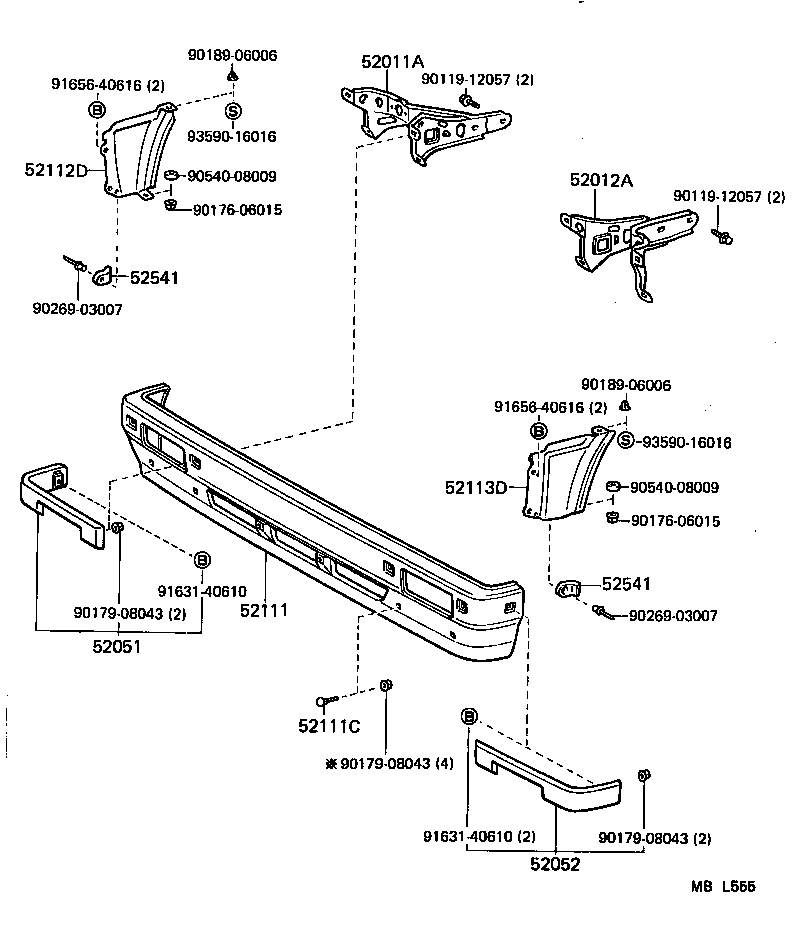

(8308-8611)YS120..STD ; (8308-8611)LS120,MS122..SED..DLX,SAL,STD..GEN

Click highlighted areas on diagram

diagram 52011A 52012A 52051 52052 52111 52111C 52112D 52113D 52541 52541 9011912057 9011912057 9017606015 9017606015 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9026903007 9054008009 9054008009 9163140610 9163140610 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30140

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30150

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-39075

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-39055

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52111 - BUMPER ASSY, FRONT
52111-39415

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52111-30160

LS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 4
52112D - EXTENSION, FRONT BUMPER, RH
52112-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-30010

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 2
Common parts
90119-12057
90176-06015
90179-08043
90189-06006
90269-03007
90540-08009
91631-40610
91656-40616
93590-16016

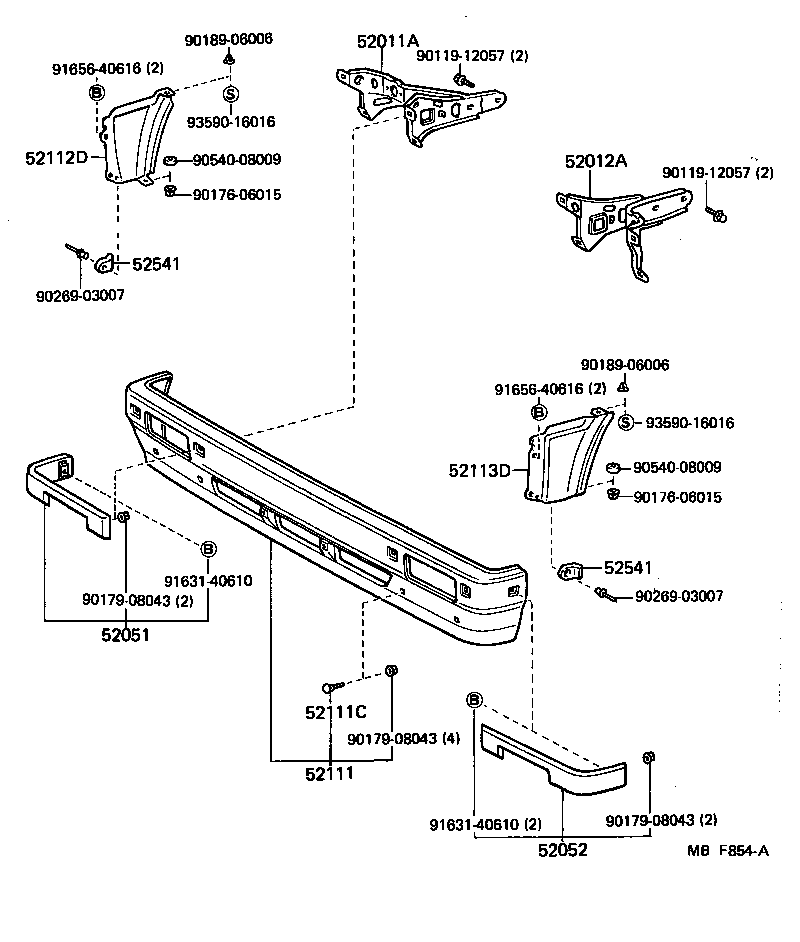

(8611- )SED..DLX,SAL,STD

Click highlighted areas on diagram

diagram 52011A 52012A 52051 52052 52111 52111C 52112D 52113D 52541 52541 9011912057 9011912057 9017606015 9017606015 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9026903007 9054008009 9054008009 9163140610 9163140610 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30140

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30150

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-39075

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-39055

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52111 - BUMPER ASSY, FRONT
52111-39415

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52111-30160

LS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 4
52112D - EXTENSION, FRONT BUMPER, RH
52112-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-30010

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 2
Common parts
90119-12057
90176-06015
90179-08043
90189-06006
90269-03007
90540-08009
91631-40610
91656-40616
93590-16016
