LS120R-SEKBS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2L
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )LS120..4F,5F ; (8308- )LS120..LHD..STD ; (8308- )MS122,123,YS120..

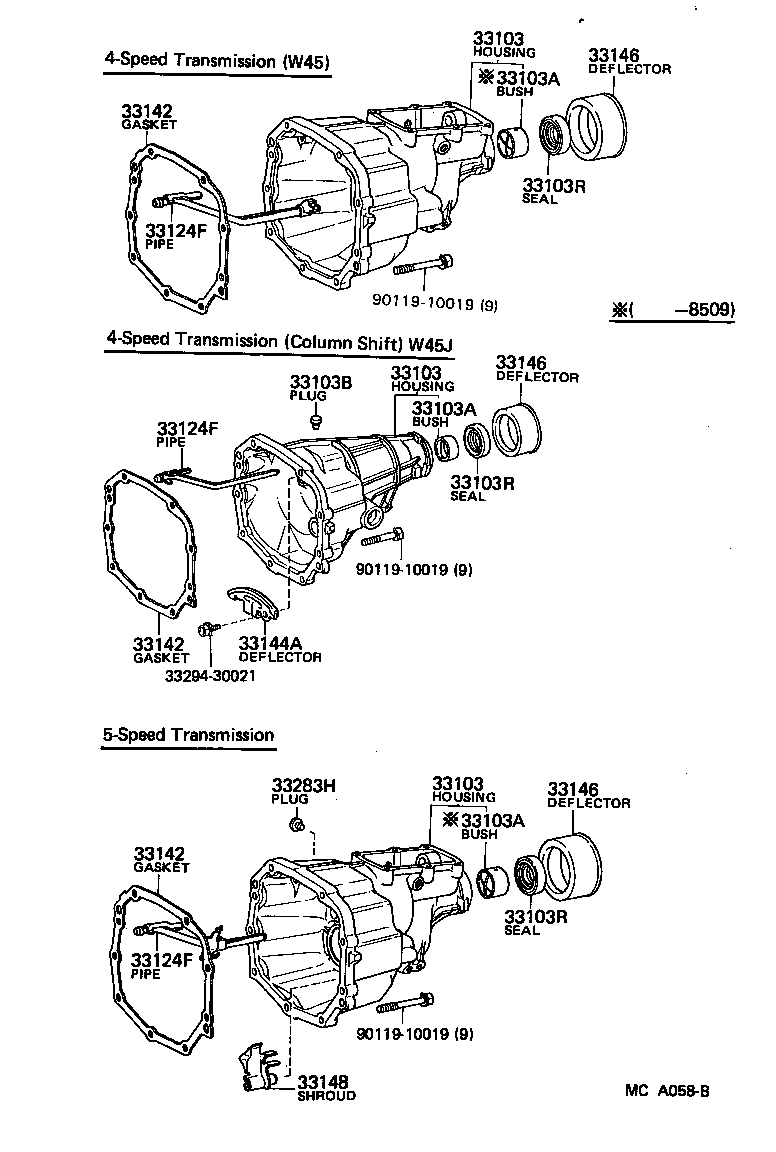

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-22100 |
LS120,MS122,YS120..4F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-22100 |
LS120,MS122,YS120..4F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-22100 |
LS120,MS122,YS120..4F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 90999-73105 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 90999-73105 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 90999-73105 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-22020 |
LS120,MS122,YS120..4F |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-22020 |
LS120,MS122,YS120..4F |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-22020 |
LS120,MS122,YS120..4F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-22010 |
LS120,MS122,123,YS120..4F,5F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-22010 |
LS120,MS122,123,YS120..4F,5F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-22010 |
LS120,MS122,123,YS120..4F,5F |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LS120,MS122,123,YS120..MTM |
1 | ||
| Common parts | ||||
| 33294-30021 | ||||
| 90119-10019 | ||||
