LS120R-SEKBS (1983)
Toyota Crown
(8308- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

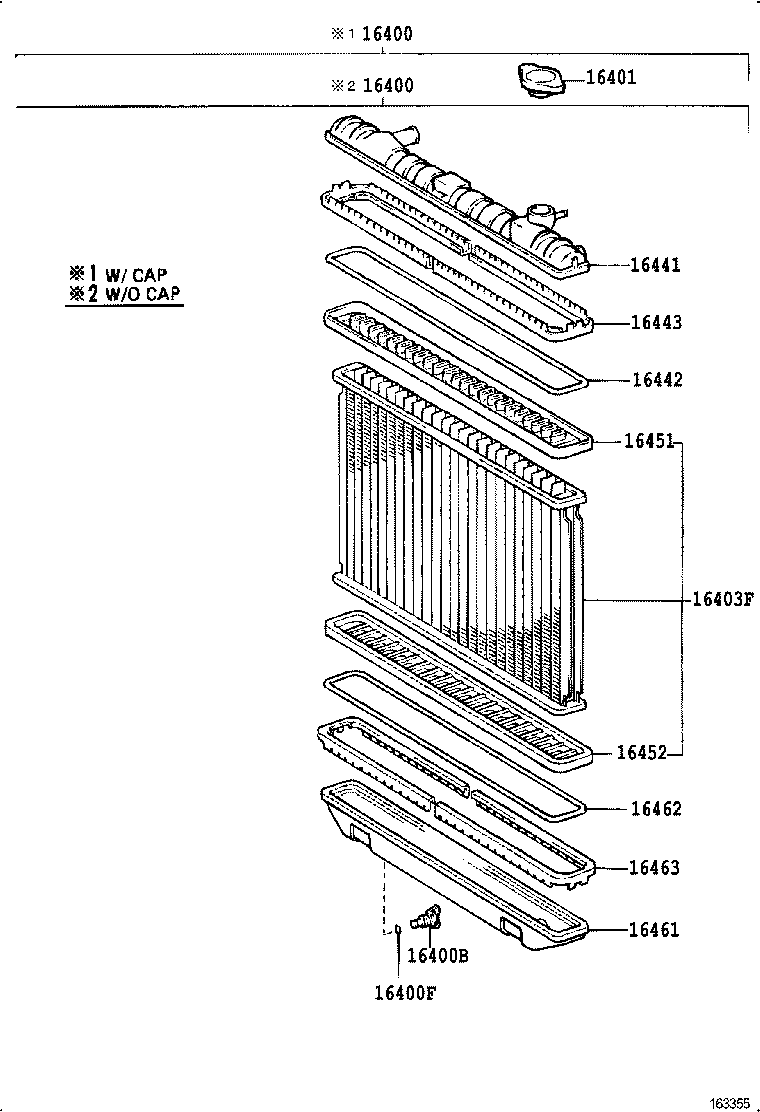

| 16400 - RADIATOR ASSY | ||||
| 16410-54300 |
2L..LS120 W/O CAP |
1 | ||
| 16400-54300 |
2L..LS120 W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54300 |
2L..LS120 W/O CAP |
1 | ||
| 16400-54300 |
2L..LS120 W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2L..LS120 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2L..LS120 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L..LS120 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-54300 |
2L..LS120 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-43120 |
2L..LS120 |
1 | ||
| 16441-43120 |
2L..LS120 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
2L..LS120 |
1 | ||
| 16442-63030 |
2L..LS120 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
2L..LS120 |
2 | ||
| 16443-15321 |
2L..LS120 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
2L..LS120 |
1 | ||
| 16451-63030 |
2L..LS120 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
2L..LS120 |
1 | ||
| 16452-63030 |
2L..LS120 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-54310 |
2L..LS120 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
2L..LS120 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
2L..LS120 |
2 | ||
(8308- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

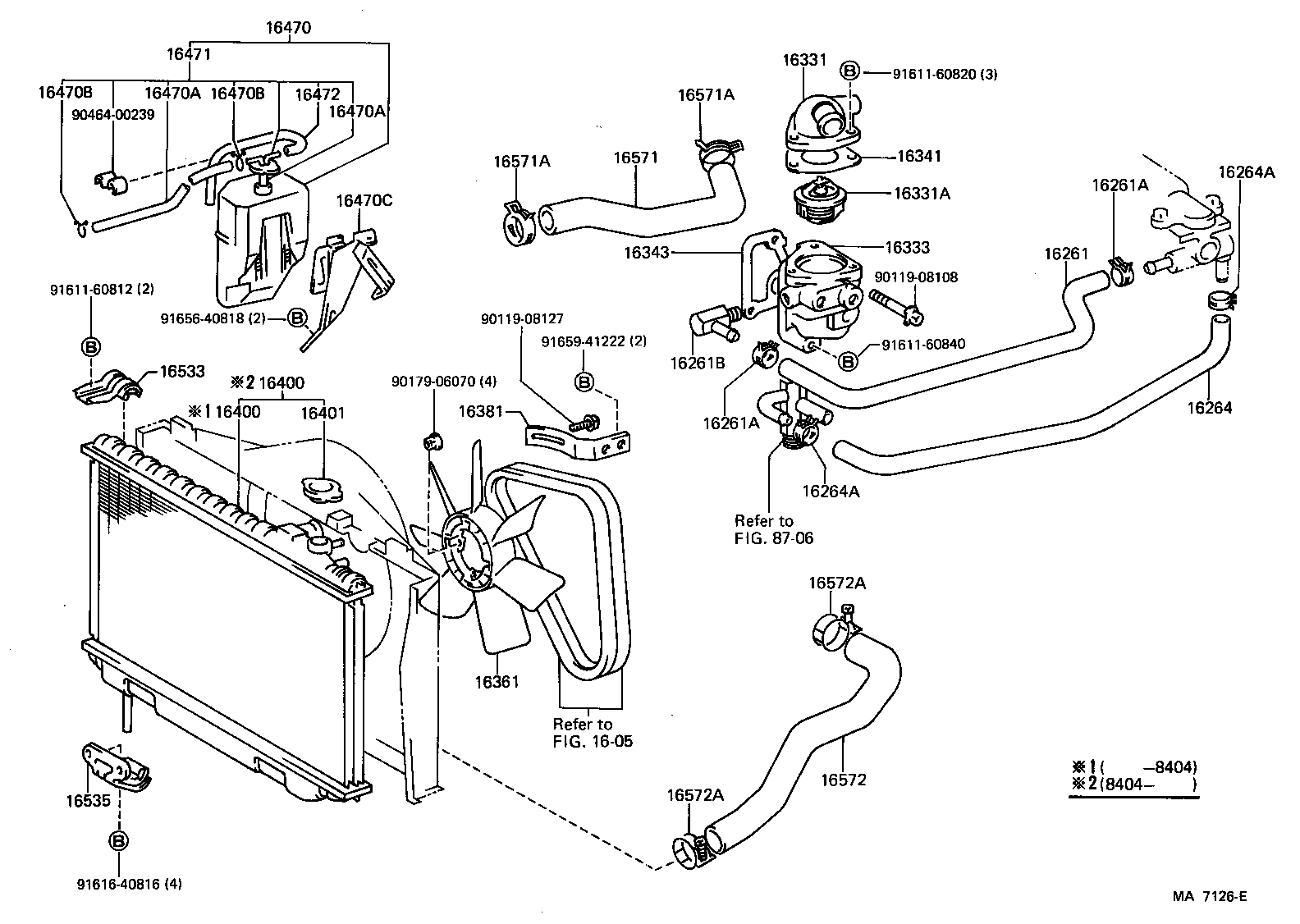

| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54021 |
2L..LS120 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L..LS120 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L..LS120 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52015 |
2L..LS120 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54020 |
2L..LS120 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L..LS120 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L..LS120 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2L..LS120 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
2L..LS120 *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54030 |
2L..LS120 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
2L..LS120 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L..LS120 |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
2L..LS120 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
2L..LS120 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54300 |
2L..LS120 W/O CAP |
1 | ||
| 16400-54300 |
2L..LS120 W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-54300 |
2L..LS120 W/O CAP |
1 | ||
| 16400-54300 |
2L..LS120 W/CAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L..LS120 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-41150 |
2L..LS120 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12138 |
2L..LS120 *H,L=350 |
1 | ||
| 90445-12078 |
2L..LS120 *H,L=350,NO.1 |
1 | ||
| 90445-12078 |
2L..LS120 *H,L=230,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12138 |
2L..LS120 *H,L=350 |
1 | ||
| 90445-12078 |
2L..LS120 *H,L=350,NO.1 |
1 | ||
| 90445-12078 |
2L..LS120 *H,L=230,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LS120 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L..LS120 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-41070 |
2L..LS120 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41080 |
2L..LS120 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-41150 |
2L..LS120 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
2L..LS120 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16506-41010 |
2L..LS120 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54150 |
2L..LS120 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LS120 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L..LS120 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54150 |
2L..LS120 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2L..LS120 RADIATOR SIDE |
1 | ||
| 96111-10490 |
2L..LS120 WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2L..LS120 RADIATOR SIDE |
1 | ||
| 96111-10490 |
2L..LS120 WATER PUMP SIDE |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 90464-00239 | ||||
| 91611-60812 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91616-40816 | ||||
| 91656-40818 | ||||
| 91659-41222 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8706 | ||||
(8308- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

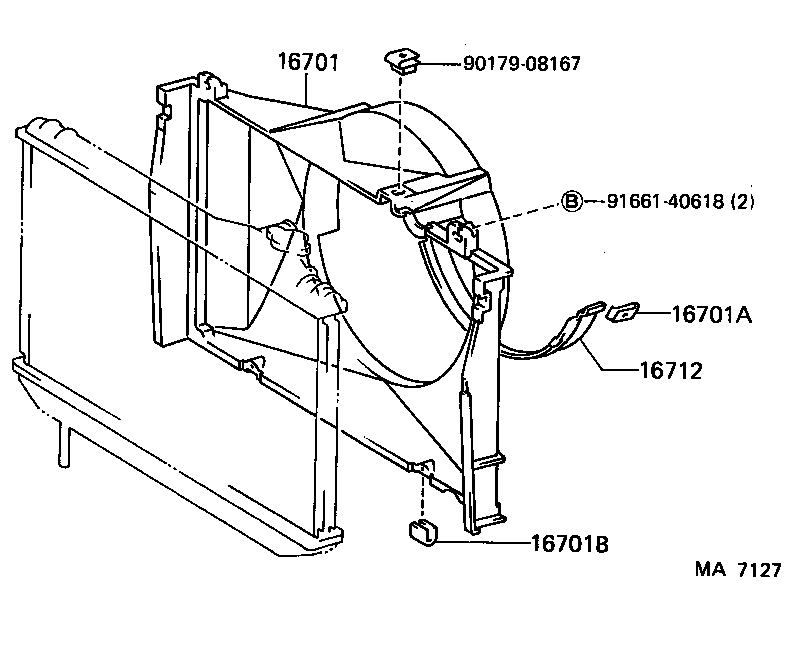

| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54130 |
2L..LS120 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2L..LS120 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2L..LS120 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
2L..LS120 |
1 | ||
| Common parts | ||||
| 90179-08167 | ||||
| 91661-40618 | ||||
