LS120R-SEBBS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

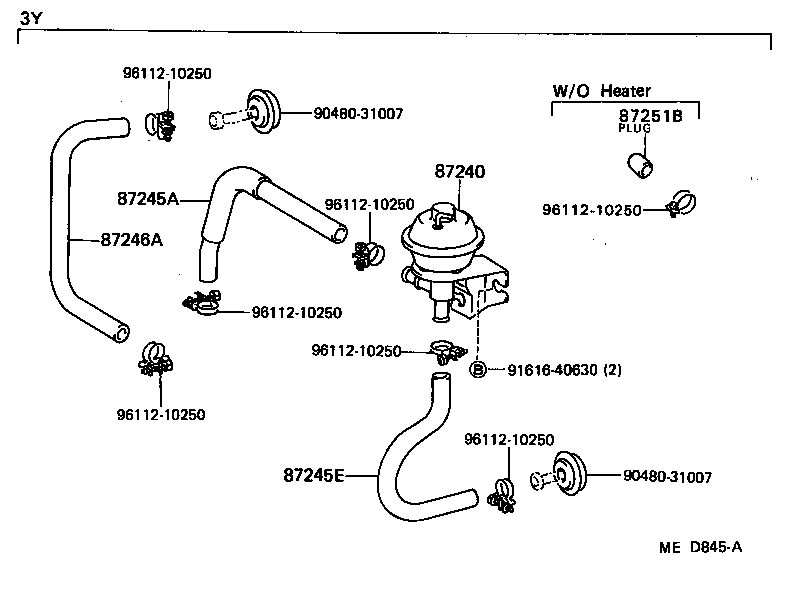

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30480 |
LS120..RHD..4H |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3A140 |
LS120..RHD..4H |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3A150 |
LS120..RHD..4H |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3A210 |
LS120,MS12#..RHD |
1 | ||
| Common parts | ||||
| 90480-31007 | ||||
| 91616-40630 | ||||
| 96112-10250 | ||||
(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
LS120,MS12# |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
LS120,MS12# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30480 |
LS120..RHD..4H |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30480 |
LS120..RHD..4H |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30480 |
LS120..RHD..4H |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3A140 |
LS120..RHD..4H |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3A140 |
LS120..RHD..4H |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3A150 |
LS120..RHD..4H |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3A150 |
LS120..RHD..4H |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3A210 |
LS120,MS12#..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3A210 |
LS120,MS12#..RHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87209-30271 |
LS120 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 90404-54023 |
LS120 |
1 | ||
| Common parts | ||||
| 90480-31006 | ||||
| 90480-31007 | ||||
| 90959-01151 | ||||
| 91616-40612 | ||||
| 91616-40630 | ||||
| 91651-40814 | ||||
| 96112-10250 | ||||
