LS120R-SEBBS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2L
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )SED,WG

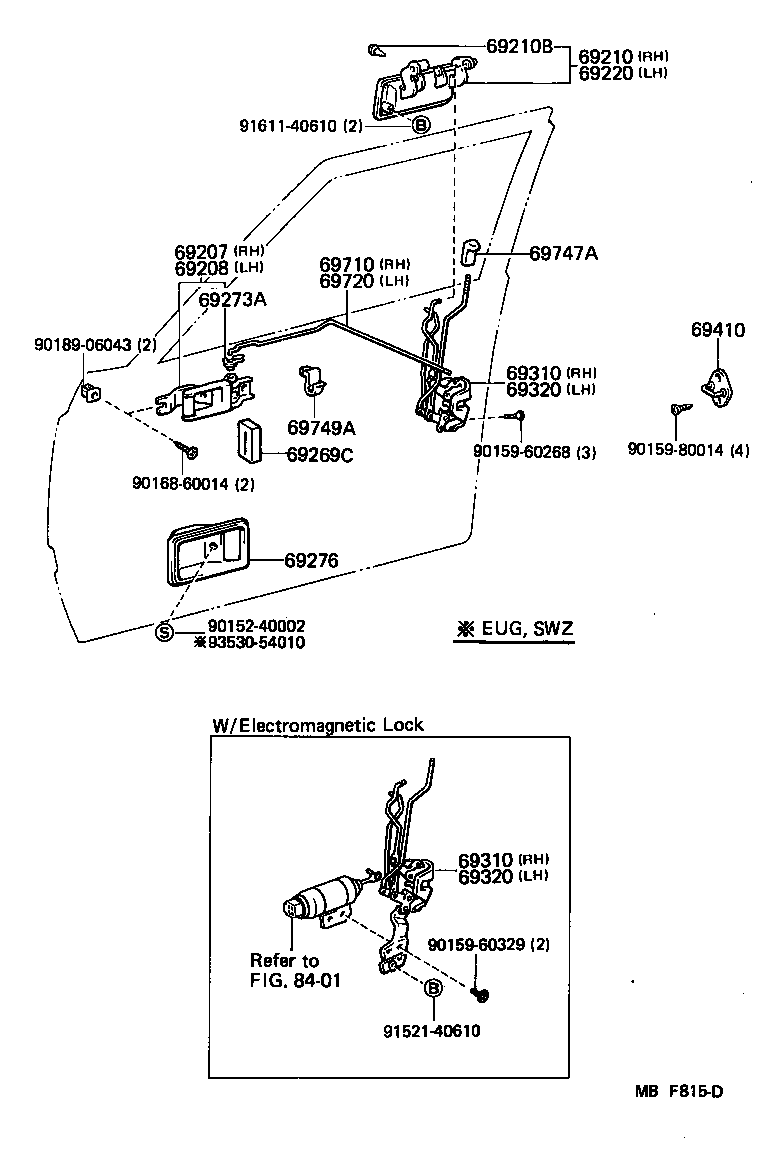

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30030 |
LS120,MS12#,YS120 |
1 | ||
| 69205-30020 |
LS120,MS12#,YS120 |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30030 |
LS120,MS12#,YS120 |
1 | ||
| 69206-30020 |
LS120,MS12#,YS120 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30170 |
LS120,MS12#,YS120 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
LS120,MS12#,YS120 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-30140 |
LS120,MS12#,YS120 |
1 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69759-24010 |
LS120,MS12#,YS120 RH |
1 | ||
| 69759-24020 |
LS120,MS12#,YS120 LH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-30040 |
LS120,MS12#,YS120..ARL,GEN,SAA |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-30290 |
LS120,YS120..RHD |
1 | ||
| 69310-30460 |
LS120,YS120..RHD..STD |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-30290 |
LS120,YS120..RHD |
1 | ||
| 69310-30460 |
LS120,YS120..RHD..STD |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-30520 |
LS120,YS120..RHD |
1 | ||
| 69320-30440 |
LS120,YS120..RHD..STD |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-30520 |
LS120,YS120..RHD |
1 | ||
| 69320-30440 |
LS120,YS120..RHD..STD |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
LS120,MS12#,YS120 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-30080 |
LS120,MS12#,YS120..SED,WG |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-30090 |
LS120,MS12#,YS120..SED,WG |
1 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-3003014 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3003004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3003004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-30020 |
LS120,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90152-40002 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80014 | ||||
| 90168-60014 | ||||
| 90189-06043 | ||||
| 91521-40610 | ||||
| 91611-40610 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
