LS120R-SEBBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS120..STD ; (8308- )YS120..4F,5F; (8509- )DLX

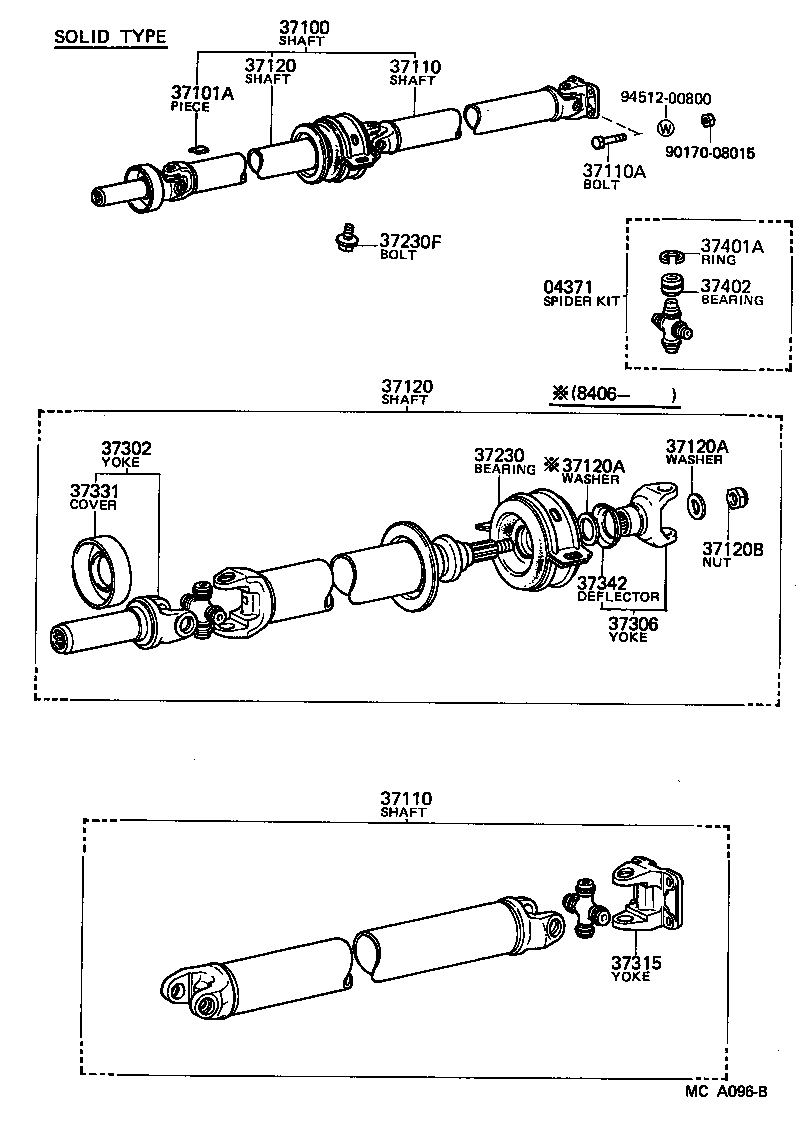

Click highlighted areas on diagram

diagram 04371 37100 37101A 37110 37110 37110A 37120 37120 37120A 37120A 37120B 37230 37230F 37302 37306 37315 37331 37342 37401A 37402 9017008015 9451200800
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-22010

YS120;LS120..STD

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-30100

LS120

SHELL TYPE

 1
37100-30150

LS120..STD

SOLID TYPE

 1
37100-30120

LS120

SHELL TYPE

 1
37100-30170

LS120

SOLID TYPE

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01153

LS120,MS12#,YS120

16G,L=33.2,16G

 1
90937-01136

LS120,MS12#,YS120

20G,L=41.4,20G

 1
90937-01140

LS120,MS12#,YS120

30G,L=62.2,30G

 1
90937-01154

LS120,MS12#,YS120

18G,L=37.3,18G

 1
90937-01156

LS120,MS12#,YS120

24G,L=49.7,24G

 1
90937-01158

LS120,MS12#,YS120

28G,L=58.1,28G

 1
90937-01155

LS120,MS12#,YS120

22G,L=45.6,22G

 1
90937-01147

LS120,MS12#,YS120

2G,T=2.0,2G

 1
90937-01148

LS120,MS12#,YS120

4G,T=2.0,4G

 1
90937-01157

LS120,MS12#,YS120

26G,L=53.9,26G

 1
90937-01151

LS120,MS12#,YS120

12G,L=24.9,12G

 1
90937-01152

LS120,MS12#,YS120

14G,L=29.0,14G

 1
90937-01150

LS120,MS12#,YS120

8G,L=16.6,8G

 1
90937-01132

LS120,MS12#,YS120

10G,L=20.7,10G

 1
90937-01149

LS120,MS12#,YS120

6G,L=12.4,6G

 1
37110 - SHAFT ASSY, PROPELLER
37110-30080

LS120..STD

SOLID TYPE

 1
37110-30070

MS122..DLX..GEN;LS120,MS122,123..ROY,SAL,STD

SHELL TYPE

 1
37110 - SHAFT ASSY, PROPELLER
37110-30080

LS120..STD

SOLID TYPE

 1
37110-30070

MS122..DLX..GEN;LS120,MS122,123..ROY,SAL,STD

SHELL TYPE

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08082

LS120,MS122,123,YS120

*8-1.25PX25-12

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-30150

LS120..STD

SOLID TYPE

 1
37120-30180

LS120

SHELL TYPE

 1
37120-30120

LS120

SHELL TYPE

 1
37120-30170

LS120

SOLID TYPE

 1
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-30150

LS120..STD

SOLID TYPE

 1
37120-30180

LS120

SHELL TYPE

 1
37120-30120

LS120

SHELL TYPE

 1
37120-30170

LS120

SOLID TYPE

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-26005

LS120,MS12#;YS120..4F,5F

OD=36.6,T=0.8,OD=36.6,T=0.8

 1
90201-18182

LS120,MS12#;YS120..4F,5F

OD=33.5,T=4.0,OD=33.5,T=4

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-26005

LS120,MS12#;YS120..4F,5F

OD=36.6,T=0.8,OD=36.6,T=0.8

 1
90201-18182

LS120,MS12#;YS120..4F,5F

OD=33.5,T=4.0,OD=33.5,T=4

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

LS120,MS12#;YS120..4F,5F

 1
90179-18009

LS120,MS12#;YS120..4F,5F

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-30040

LS120,MS122;YS120..4F,5F

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10046

LS120,MS12#;YS120..4F,5F

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-20040

YS120;LS120..STD

 1
37306 - YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER
37306-20010

LS120..STD

 1
37306-20011

LS120..STD

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-20020

YS120;LS120..STD

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LS120,MS122,123,YS120

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

LS120..STD

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29071

YS120;LS120..STD

T=2.425-2.475,T=2.45

 12
90521-29070

YS120;LS120..STD

T=2.375-2.425,T=2.40

 12
90521-29073

YS120;LS120..STD

T=2.525-2.575,T=2.55

 12
90521-29072

YS120;LS120..STD

T=2.475-2.525,T=2.50

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

YS120;LS120..STD

 12
Common parts
90170-08015
94512-00800
