LS120L-SEJBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS120..LHD

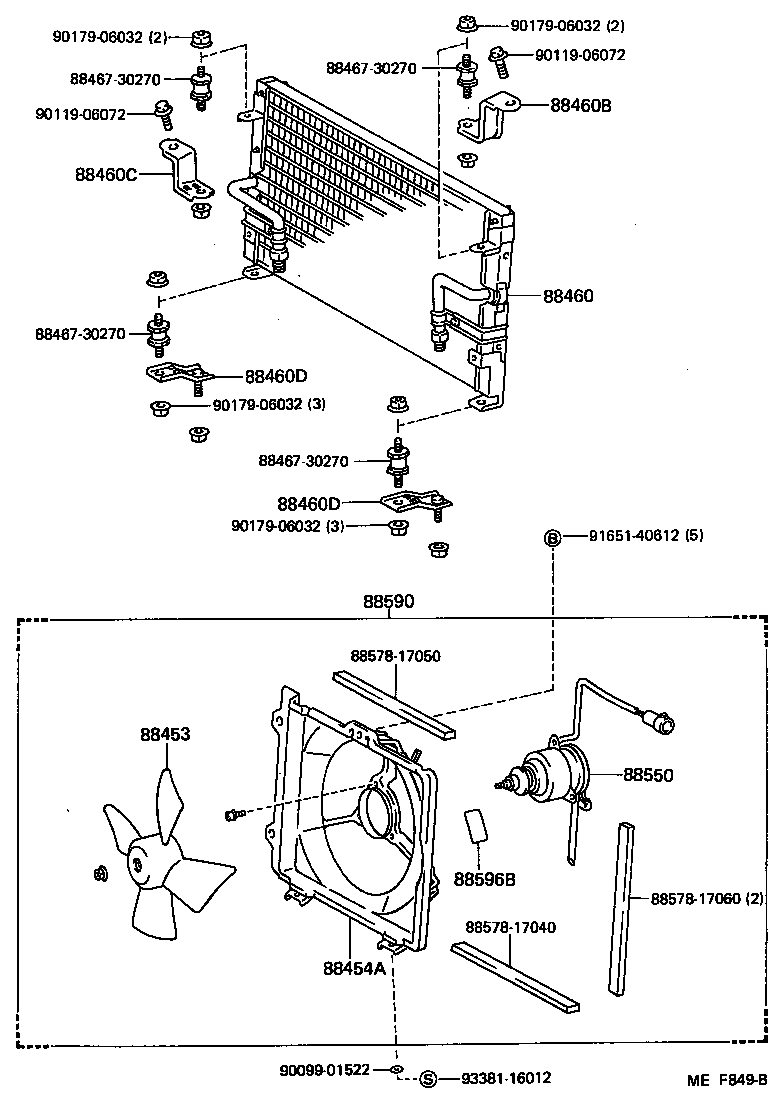

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 88460C 88460D 88460D 8846730270 8846730270 8846730270 8846730270 88550 8857817040 8857817050 8857817060 88590 88596B 9009901522 9011906072 9011906072 9017906032 9017906032 9017906032 9017906032 9165140612 9338116012
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-30490

LS120

 1
88460-30530

LS120

 1
Common parts
88467-30270
88578-17040
88578-17050
88578-17060
90099-01522
90119-06072
90179-06032
91651-40612
93381-16012
