LS120L-SEJBS (1983)
Toyota Crown
(8308- )DLX,STD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-30070 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-44001 |
LS120,MS122,YS120..(DLX,STD)..GEN |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-44001 |
LS120,MS122,YS120..(DLX,STD)..GEN |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-30060 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-30100 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-34001 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 90310-34006 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-30120 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-30140 |
LS120,YS120..LHD..STD MARK 3 |
1 | ||
| 45304-30150 |
LS120,YS120..LHD..STD MARK 4 |
1 | ||
| 45304-30170 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN MARK 1 |
1 | ||
| 45304-30120 |
LS120,YS120..LHD..STD MARK 1 |
1 | ||
| 45304-30130 |
LS120,YS120..LHD..STD MARK 2 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-30090 |
LS120,YS120..LHD..STD |
1 | ||
| 45332-30090 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
LS120,MS122,YS120..(DLX,STD)..GEN T=2.00,T=2.00 |
1 | ||
| 45352-14030 |
LS120,MS122,YS120..(DLX,STD)..GEN T=2.08,T=2.08 |
1 | ||
| 45352-14060 |
LS120,MS122,YS120..(DLX,STD)..GEN T=2.20,T=2.20 |
1 | ||
| 45352-14040 |
LS120,MS122,YS120..(DLX,STD)..GEN T=2.12,T=2.12 |
1 | ||
| 45352-14020 |
LS120,MS122,YS120..(DLX,STD)..GEN T=2.04,T=2.04 |
1 | ||
| 45352-14050 |
LS120,MS122,YS120..(DLX,STD)..GEN T=2.16,T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39225 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
LS120,MS122,YS120..(DLX,STD)..GEN |
1 | ||
| Common parts | ||||
| 90105-12004 | ||||
| 90105-12079 | ||||
| 90105-12120 | ||||
| 90179-12024 | ||||
| 90179-12051 | ||||
| 91619-61225 | ||||
| 94120-41000 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39155 |
LS120,MS12#,YS120 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
LS120,MS12#,YS120 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39155 |
LS120,MS12#,YS120 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39105 |
LS120,MS12#,YS120 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
LS120,MS12#,YS120 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39105 |
LS120,MS12#,YS120 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90105-12003 |
LS120,MS12#,YS120 L=91.5 |
1 | ||
| 90105-12004 |
LS120,MS12#,YS120 L=101 |
1 | ||
| 90105-12105 |
LS120,MS12#,YS120 *12-1.25PX91.5-38,L=91.5 |
1 | ||
| 90105-12120 |
LS120,MS12#,YS120 *12-1.25PX104-44,L=101 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
LS120,MS12#,YS120 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
LS120,MS12#,YS120 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LS120,MS12#,YS120 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LS120,MS12#,YS120 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LS120,MS12#,YS120 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LS120,MS12#,YS120 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-30190 |
LS120,MS12#,YS120..LHD W/POWER STEERING |
1 | ||
| 45451-30210 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39195 |
LS120,MS12#,YS120 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35010 |
LS120,MS12#,YS120 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LS120,MS12#,YS120 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LS120,MS12#,YS120 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39195 |
LS120,MS12#,YS120 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39215 |
LS120,MS12#,YS120..LHD W/POWER STEERING |
1 | ||
| 45490-39235 |
LS120,MS122,YS120..LHD..(DLX,STD)..GEN |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
LS120,MS12#,YS120 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-30110 |
YS120..LHD;LS120,MS12# W/POWER STEERING |
1 | ||
| 45611-30100 |
LS120,YS120..STD |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10002 |
LS120,MS12#,YS120 |
2 | ||
| 90106-10032 |
LS120,MS12#,YS120 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-30100 |
LS120,YS120..STD |
1 | ||
| 45612-30110 |
YS120..LHD;LS120,MS12# W/POWER STEERING |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
LS120,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-12024 | ||||
| 90179-12051 | ||||
| 91111-70835 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||

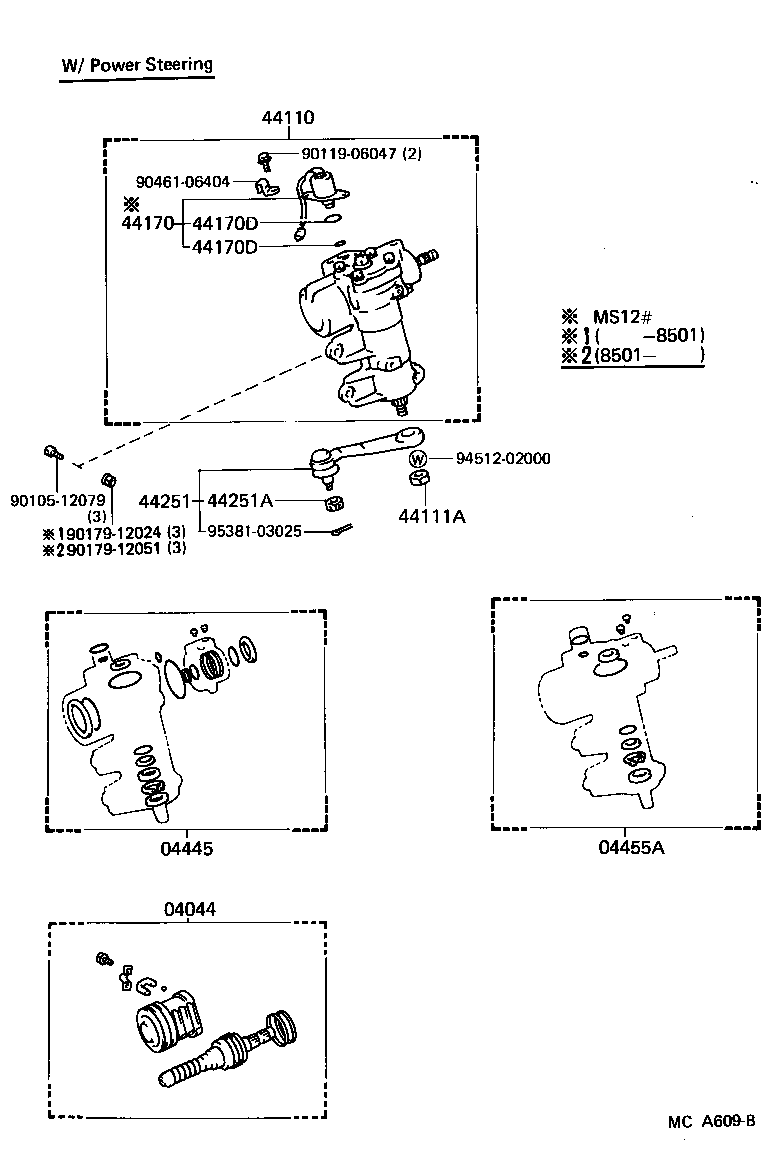

(8308- )YS120..LHD ; (8308- )LS120,MS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-30120 |
LS120,MS12#,YS120..LHD |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-30080 |
YS120..LHD;LS120,MS12# |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-30010 |
YS120..LHD;LS120,MS12# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30190 |
LS120,MS122,YS120..LHD..(DLX,STD) |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90562-67002 |
LS120,MS12# |
1 | ||
| 90170-20147 |
YS120..LHD;LS120,MS12# |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-39245 |
LS120,MS12#,YS120..LHD |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
YS120..LHD;LS120,MS12# |
1 | ||
| Common parts | ||||
| 90105-12079 | ||||
| 90119-06047 | ||||
| 90179-12024 | ||||
| 90179-12051 | ||||
| 90461-06404 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
