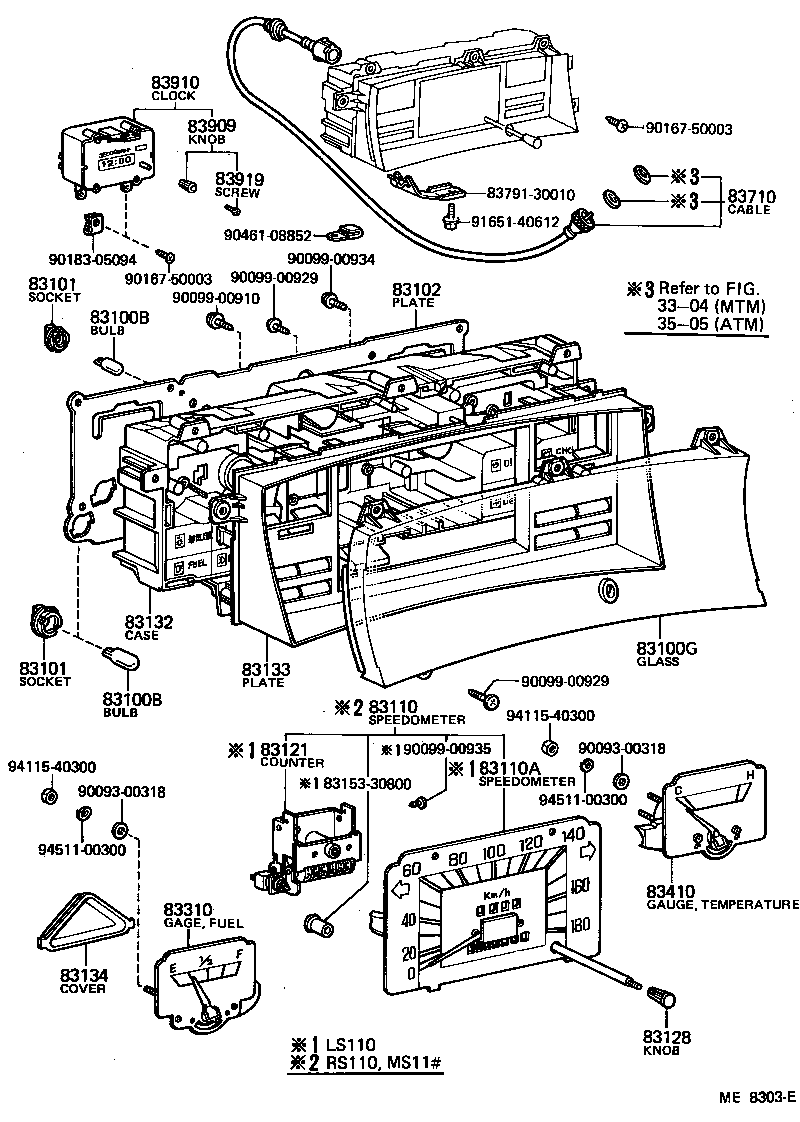

LS110RG-SWKBS (1979)
Toyota Crown
(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS110,MS11#,RS110 12V 1.2W W/O SOCKET,12V 1.4W |
2 | ||
| 99132-12034 |
LS110,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS110,MS11#,RS110 12V 1.2W W/O SOCKET,12V 1.4W |
2 | ||
| 99132-12034 |
LS110,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30820 |
LS110..RHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LS110,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14040 |
LS110,MS11#,RS110 12V 1.4W |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LS110,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14040 |
LS110,MS11#,RS110 12V 1.4W |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30851 |
LS110 |
1 | ||
| 83247-30850 |
LS110 |
1 | ||
| 83110A - SPEEDOMETER SUB-ASSY | ||||
| 83111-30811 |
LS110 KM |
1 | ||
| 83111-30810 |
LS110 KM |
1 | ||
| 83111-30820 |
LS110..RHD MILE & KM |
1 | ||
| 83111-30821 |
LS110..RHD MILE & KM |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30801 |
LS110 KM |
1 | ||
| 83121-30800 |
LS110 KM |
1 | ||
| 83121-30810 |
LS110..RHD MILE & KM |
1 | ||
| 83121-30811 |
LS110..RHD MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
LS110,MS11#,RS110 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30840 |
LS110..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30840 |
LS110..RHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-30800 |
RS110;LS110,MS11#..BTP,DLX W/O TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30800 |
RS110;LS110,MS11#..BTP,DLX W/O TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30800 |
RS110;LS110,MS11#..BTP,DLX W/O TACHOMETER |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30431 |
LS110,MS111,RS110..RHD..4F L=1330 |
1 | ||
| 83710-30431 |
LS110,RS110..RHD..4F L=1330 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30240 |
LS110,MS11#,RS110..BTP,DLX,SAL |
1 | ||
| Common parts | ||||
| 83153-30800 | ||||
| 83791-30010 | ||||
| 90093-00318 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 90099-00935 | ||||
| 90167-50003 | ||||
| 90183-05094 | ||||
| 90461-08852 | ||||
| 91651-40612 | ||||
| 94115-40300 | ||||
| 94511-00300 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
