LS110R-SEKBS (1980)

Toyota Crown

Production Aug 1980 - Jul 1983
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)

Click highlighted areas on diagram

diagram 53031 53031A 53031E 53031F 53032 53032A 53032E 53032F 53111 53111 53111J 53111J 9016740013 9020903001 9046713005 9046713005 9356054020
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53031-30020

LS110,MS11#,RS110..GEN

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53139-30030

LS110,MS11#,RS110

 1
53031E - PAD, HEADLAMP DOOR, RH
53158-30010

LS110,MS11#,RS110

 1
53031F - CLIP, HEADLAMP DOOR, RH
53189-30020

LS110,MS11#,RS110

 2
53032 - HOUSING, HEADLAMP, LH
53032-30020

LS110,MS11#,RS110..GEN

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53139-30030

LS110,MS11#,RS110

 1
53032E - PAD,HEADLAMP DOOR, LH
53159-30020

LS110,MS11#,RS110

 1
53032F - CLIP, HEADLAMP DOOR, LH
53189-30020

LS110,MS11#,RS110

 2
53111 - GRILLE, RADIATOR
53111-30220

LS110,MS11#,RS110..BTP..GEN

 1
53111-30270

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111-30271

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111 - GRILLE, RADIATOR
53111-30220

LS110,MS11#,RS110..BTP..GEN

 1
53111-30270

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111-30271

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111J - PROTECTOR, RADIATOR GRILLE
53119-30040

LS110,MS11#,RS110

 2
53119-30070

LS110,MS112,RS110..BTP,DLX

 2
53111J - PROTECTOR, RADIATOR GRILLE
53119-30040

LS110,MS11#,RS110

 2
53119-30070

LS110,MS112,RS110..BTP,DLX

 2
Common parts
90167-40013
90209-03001
90467-13005
93560-54020

(8108- )

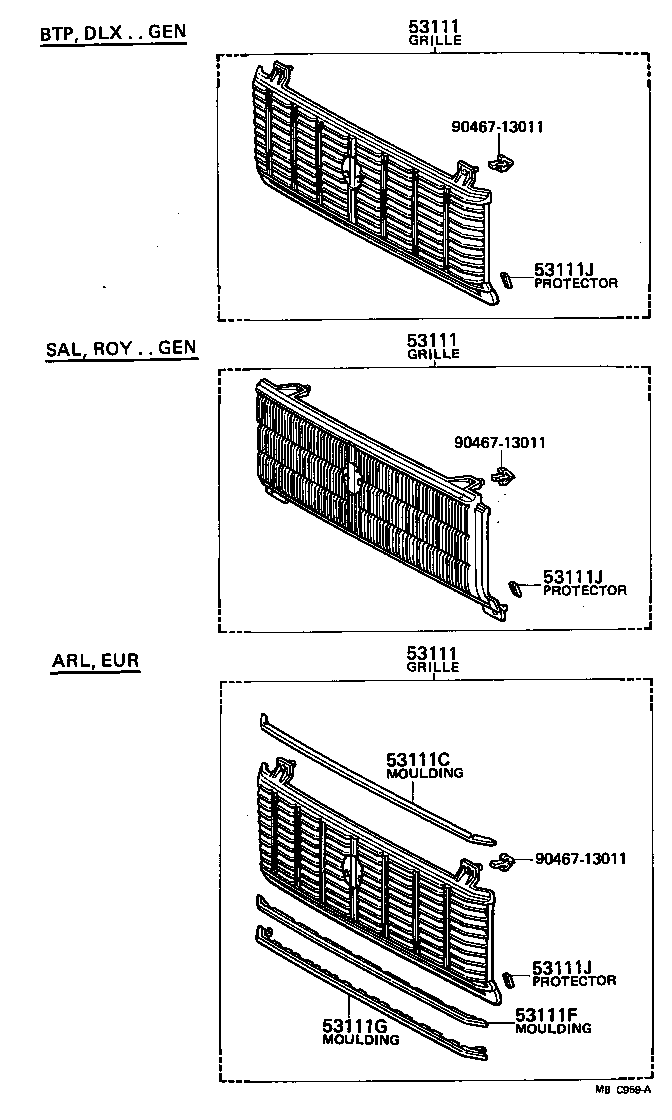

Click highlighted areas on diagram

diagram 53111 53111 53111 53111C 53111F 53111G 53111J 53111J 53111J 9046713011 9046713011 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-30220

LS110,MS11#,RS110..BTP..GEN

 1
53111-30270

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111-30271

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111 - GRILLE, RADIATOR
53111-30220

LS110,MS11#,RS110..BTP..GEN

 1
53111-30270

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111-30271

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111 - GRILLE, RADIATOR
53111-30220

LS110,MS11#,RS110..BTP..GEN

 1
53111-30270

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111-30271

LS110,MS112,RS110..(BTP,DLX)..GEN

 1
53111J - PROTECTOR, RADIATOR GRILLE
53119-30040

LS110,MS11#,RS110

 2
53119-30070

LS110,MS112,RS110..BTP,DLX

 2
53111J - PROTECTOR, RADIATOR GRILLE
53119-30040

LS110,MS11#,RS110

 2
53119-30070

LS110,MS112,RS110..BTP,DLX

 2
53111J - PROTECTOR, RADIATOR GRILLE
53119-30040

LS110,MS11#,RS110

 2
53119-30070

LS110,MS112,RS110..BTP,DLX

 2
Common parts
90467-13011
