LS110LG-SWMBSW (1979)
Toyota Crown

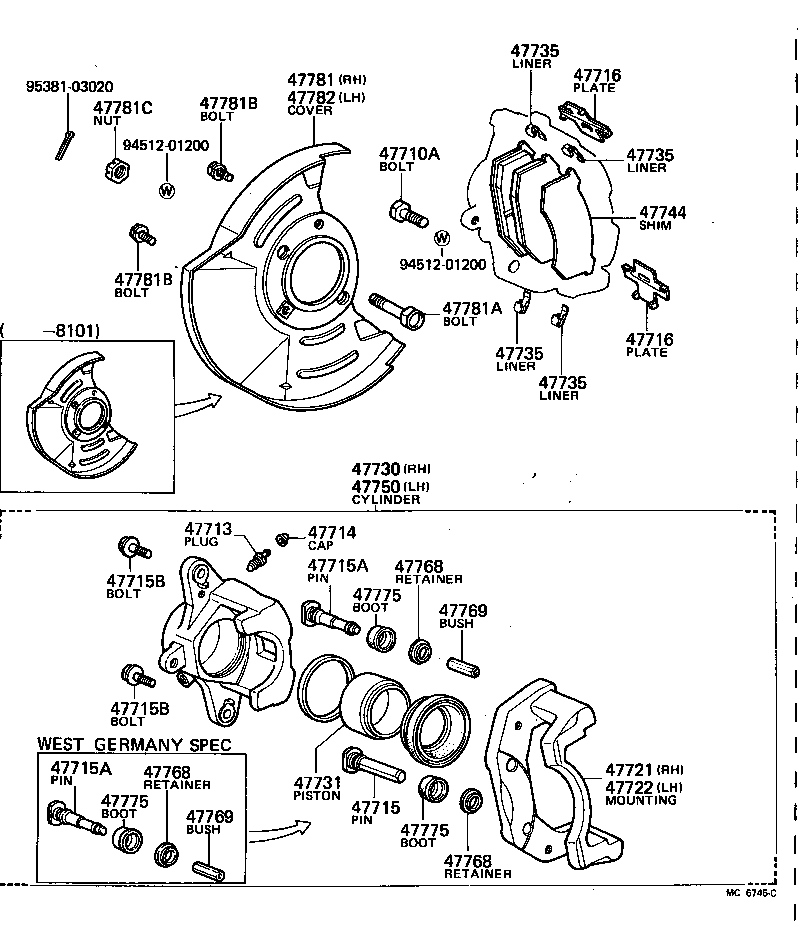

ILLUST NO. 1 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12030 |
LS110,MS11#,RS110 *12-1.25PX31-20 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12030 |
LS110,MS11#,RS110 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LS110,MS11#,RS110 |
2 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-30010 |
LS110,MS11#,RS110 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-39015 |
LS110,MS11#,RS110 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-39015 |
LS110,MS11#,RS110 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08019 |
LS110,MS11#,RS110 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08019 |
LS110,MS11#,RS110 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-30020 |
LS110,MS11#,RS110 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-30020 |
LS110,MS11#,RS110 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-30020 |
LS110,MS11#,RS110 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-30020 |
LS110,MS11#,RS110 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-30110 |
LS110,MS11#,RS110 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30050 |
LS110,MS11#,RS110 |
2 | ||
| 47735 - LINER, FRONT BRAKE PAD GUIDE | ||||
| 47736-30030 |
LS110,MS11#,RS110 |
8 | ||
| 47735 - LINER, FRONT BRAKE PAD GUIDE | ||||
| 47736-30030 |
LS110,MS11#,RS110 |
8 | ||
| 47735 - LINER, FRONT BRAKE PAD GUIDE | ||||
| 47736-30030 |
LS110,MS11#,RS110 |
8 | ||
| 47735 - LINER, FRONT BRAKE PAD GUIDE | ||||
| 47736-30030 |
LS110,MS11#,RS110 |
8 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-30110 |
LS110,MS11#,RS110 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-30110 |
LS110,MS11#,RS110 |
1 | ||
| 47768 - RETAINER, DUST SEAL | ||||
| 47768-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47768 - RETAINER, DUST SEAL | ||||
| 47768-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47768 - RETAINER, DUST SEAL | ||||
| 47768-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30010 |
LS110,MS11#,RS110 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-30070 |
LS110,MS112,RS110 |
1 | ||
| 47703-30061 |
LS110,MS11#,RS110 |
1 | ||
| 47703-30062 |
LS110,MS11#,RS110 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12044 |
LS110,MS11#,RS110 |
4 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91611-60812 |
LS110,MS11#,RS110 *8-1.25PX12-7,L=12 |
2 | ||
| 91611-60818 |
LS110,MS11#,RS110 *8-1.25PX18-18,L=18 |
2 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91611-60812 |
LS110,MS11#,RS110 *8-1.25PX12-7,L=12 |
2 | ||
| 91611-60818 |
LS110,MS11#,RS110 *8-1.25PX18-18,L=18 |
2 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
LS110,MS11#,RS110 |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-30061 |
LS110,MS11#,RS110 |
1 | ||
| 47704-30070 |
LS110,MS112,RS110 |
1 | ||
| 47704-30062 |
LS110,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-30060 |
LS110,MS112,RS110 |
1 | ||
| 04479-30050 |
LS110,MS11#,RS110 |
1 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-30060 |
LS110,MS112,RS110 |
1 | ||
| 04479-30050 |
LS110,MS11#,RS110 |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-30101 |
LS110,MS11#,RS110 |
1 | ||
| 47710N - SEAL KIT, DISC BRAKE, FRONT | ||||
| 04498-30020 |
LS110,MS11#,RS110 |
1 | ||

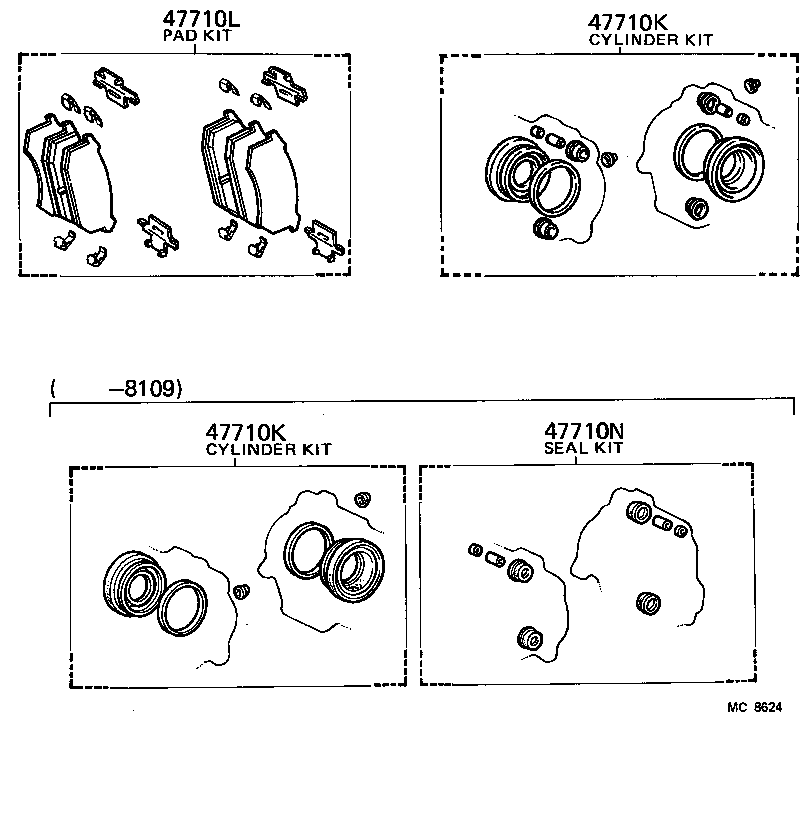

ILLUST NO. 2 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-30021 |
LS110,MS11#,RS110 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-30070 |
LS110,MS11#,RS110 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-30020 |
LS110,MS11#,RS110 |
1 | ||
