LS110LG-SWKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

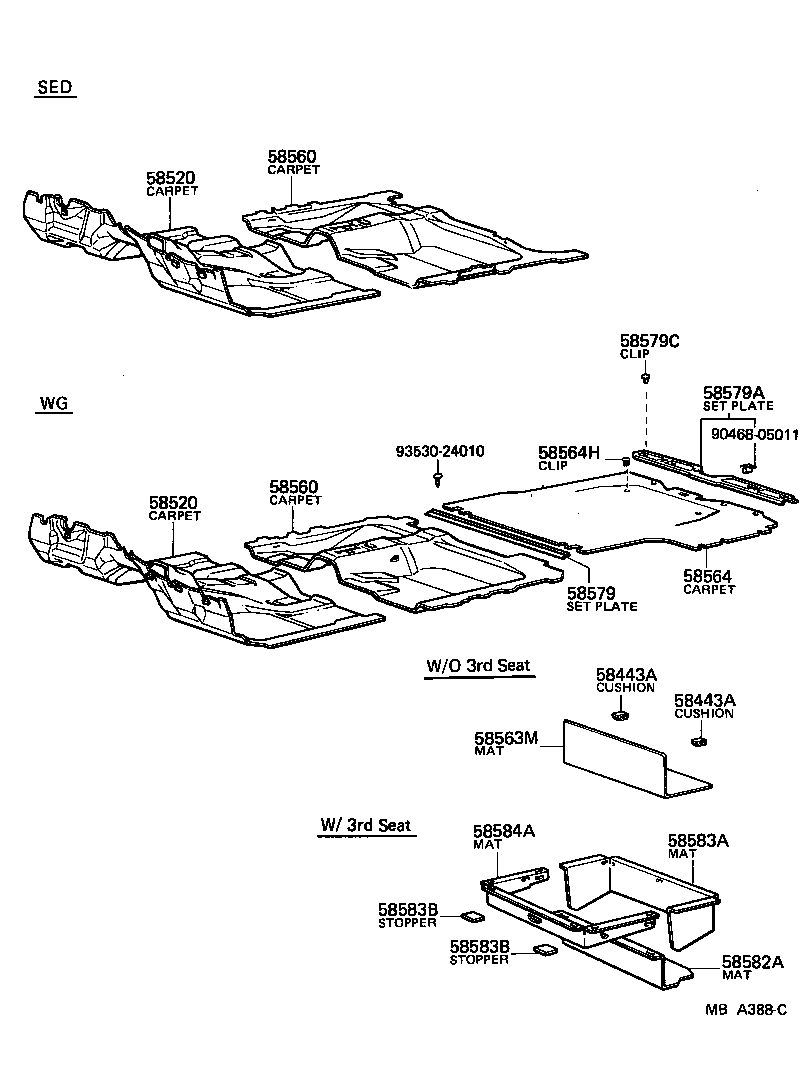

Click highlighted areas on diagram

diagram 58443A 58443A 58520 58520 58560 58560 58563M 58564 58564H 58579 58579A 58579C 58582A 58583A 58583B 58583B 58584A 9046805011 9353024010
Part # Description Qty Price
58443A - CUSHION, DECK COMPARTMENT BOX
58443-91701

LS110,MS11#..WG

 2
58443A - CUSHION, DECK COMPARTMENT BOX
58443-91701

LS110,MS11#..WG

 2
58520 - CARPET ASSY, FRONT FLOOR
58510-3058004

LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX)

W/*HEA,BLUE,BLUE,TRIM8#

 1
58510-3069004

LS110,MS11#,RS110..LHD..(3FC,4F,4FC)..(BTP,DLX)..GEN

W/*BV,BLUE,BLUE,TRIM8#

 1
58510-3058005

LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX)

W/*HEA,GREIGE,BEIGE,TRIM4#

 1
58510-3069005

LS110,MS11#,RS110..LHD..(3FC,4F,4FC)..(BTP,DLX)..GEN

W/*BV,GREIGE,BEIGE,TRIM4#

 1
58520 - CARPET ASSY, FRONT FLOOR
58510-3058004

LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX)

W/*HEA,BLUE,BLUE,TRIM8#

 1
58510-3069004

LS110,MS11#,RS110..LHD..(3FC,4F,4FC)..(BTP,DLX)..GEN

W/*BV,BLUE,BLUE,TRIM8#

 1
58510-3058005

LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX)

W/*HEA,GREIGE,BEIGE,TRIM4#

 1
58510-3069005

LS110,MS11#,RS110..LHD..(3FC,4F,4FC)..(BTP,DLX)..GEN

W/*BV,GREIGE,BEIGE,TRIM4#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-9174905

LS110,MS11#..WG..(3FC,4F,4FC,5F)

GREIGE,BEIGE,TRIM4#

 1
58540-9174904

LS110,MS11#..WG..(3FC,4F,4FC,5F)

BLUE,BLUE,TRIM8#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-9174905

LS110,MS11#..WG..(3FC,4F,4FC,5F)

GREIGE,BEIGE,TRIM4#

 1
58540-9174904

LS110,MS11#..WG..(3FC,4F,4FC,5F)

BLUE,BLUE,TRIM8#

 1
58563M - MAT, 3RD SEAT FLOOR
58582-9170205

LS110,MS11#..WG

GREIGE,BEIGE,TRIM4#

 1
58582-9170204

LS110,MS11#..WG

BLUE,BLUE,TRIM8#

 1
Common parts
90468-05011
93530-24010
