LS110LG-SWKBS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

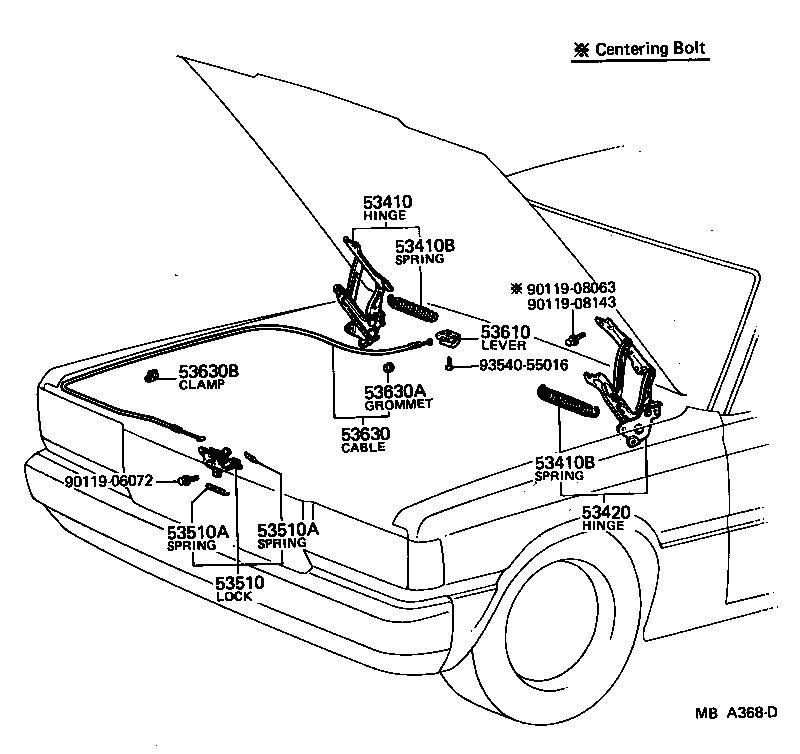

Click highlighted areas on diagram

diagram 53410 53410B 53410B 53420 53510 53510A 53510A 53610 53630 53630A 53630B 9011906072 9011908063 9011908143 9354055016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-30050

LS110,MS11#,RS110

 1
53410B - SPRING, TENSION(FOR HOOD HINGE)
90506-58001

LS110,MS11#,RS110

 2
53410B - SPRING, TENSION(FOR HOOD HINGE)
90506-58001

LS110,MS11#,RS110

 2
53420 - HINGE ASSY, HOOD, LH
53420-30050

LS110,MS11#,RS110

 1
53510 - LOCK ASSY, HOOD
53510-30090

LS110,MS11#,RS110..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09008

LS110,MS11#,RS110

WD=0.9,CW=21.25,WD=0.9,CW=21

 1
90506-18024

LS110,MS11#,RS110

WD=1.8,CW=18

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09008

LS110,MS11#,RS110

WD=0.9,CW=21.25,WD=0.9,CW=21

 1
90506-18024

LS110,MS11#,RS110

WD=1.8,CW=18

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-3003005

LS110,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 1
53601-3003004

LS110,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
53601-3003002

LS110,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-30080

LS110,MS11#,RS110

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
90480-15001

LS110,MS11#,RS110

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

LS110,MS11#,RS110

 2
Common parts
90119-06072
90119-08063
90119-08143
93540-55016
