LS110L-SEKDS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
L
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )L

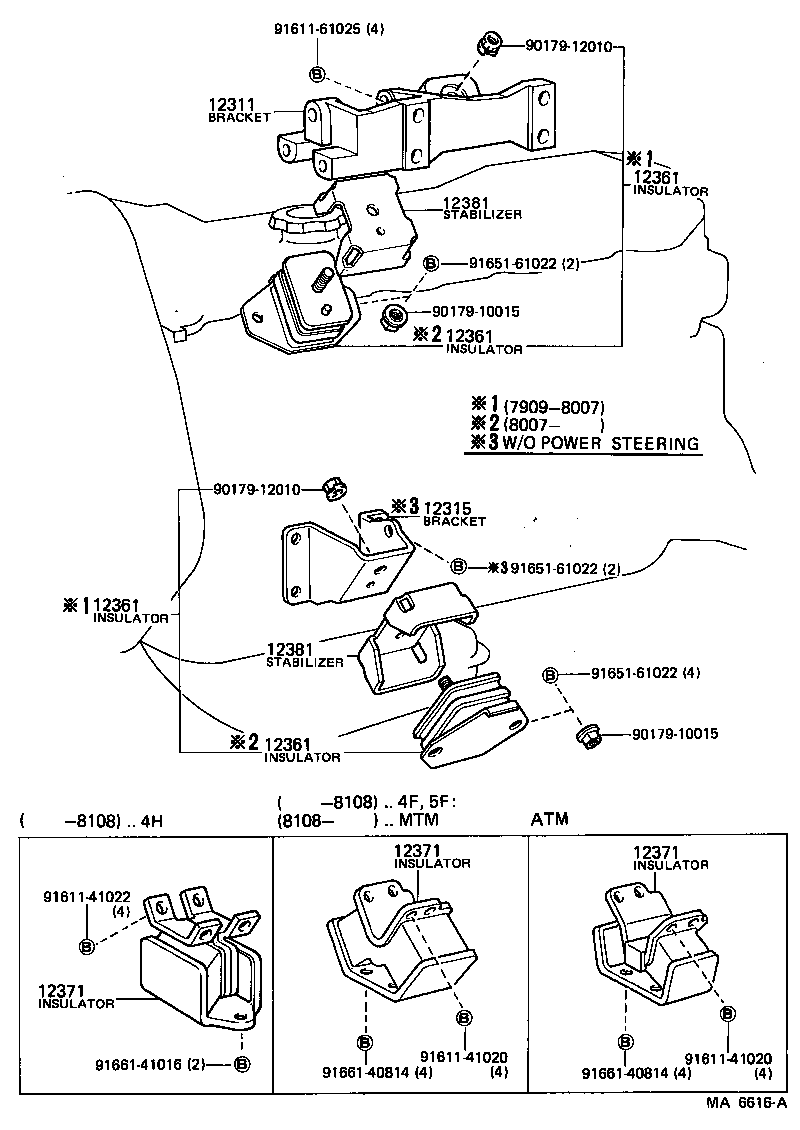

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-54060 |
L..LS110 |
1 | ||
| 12311-54010 |
L..LS110 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12312-54011 |
L..LS110 W/O POWER STEERING |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59046 |
L..LS110 RH |
1 | ||
| 12362-59016 |
L..LS110 LH |
1 | ||
| 12362-54012 |
L..LS110 LH |
1 | ||
| 12361-54012 |
L..LS110 RH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59046 |
L..LS110 RH |
1 | ||
| 12362-59016 |
L..LS110 LH |
1 | ||
| 12362-54012 |
L..LS110 LH |
1 | ||
| 12361-54012 |
L..LS110 RH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59046 |
L..LS110 RH |
1 | ||
| 12362-59016 |
L..LS110 LH |
1 | ||
| 12362-54012 |
L..LS110 LH |
1 | ||
| 12361-54012 |
L..LS110 RH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59046 |
L..LS110 RH |
1 | ||
| 12362-59016 |
L..LS110 LH |
1 | ||
| 12362-54012 |
L..LS110 LH |
1 | ||
| 12361-54012 |
L..LS110 RH |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34020 |
L..LS110..4F,5F |
1 | ||
| 12371-34020 |
L..LS110..4F,5F |
1 | ||
| 12371-34020 |
L..LS110..MTM |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34020 |
L..LS110..4F,5F |
1 | ||
| 12371-34020 |
L..LS110..4F,5F |
1 | ||
| 12371-34020 |
L..LS110..MTM |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34020 |
L..LS110..4F,5F |
1 | ||
| 12371-34020 |
L..LS110..4F,5F |
1 | ||
| 12371-34020 |
L..LS110..MTM |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54010 |
L..LS110 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54010 |
L..LS110 |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 91611-41020 | ||||
| 91611-41022 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91661-40814 | ||||
| 91661-41016 | ||||
