LS110L-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

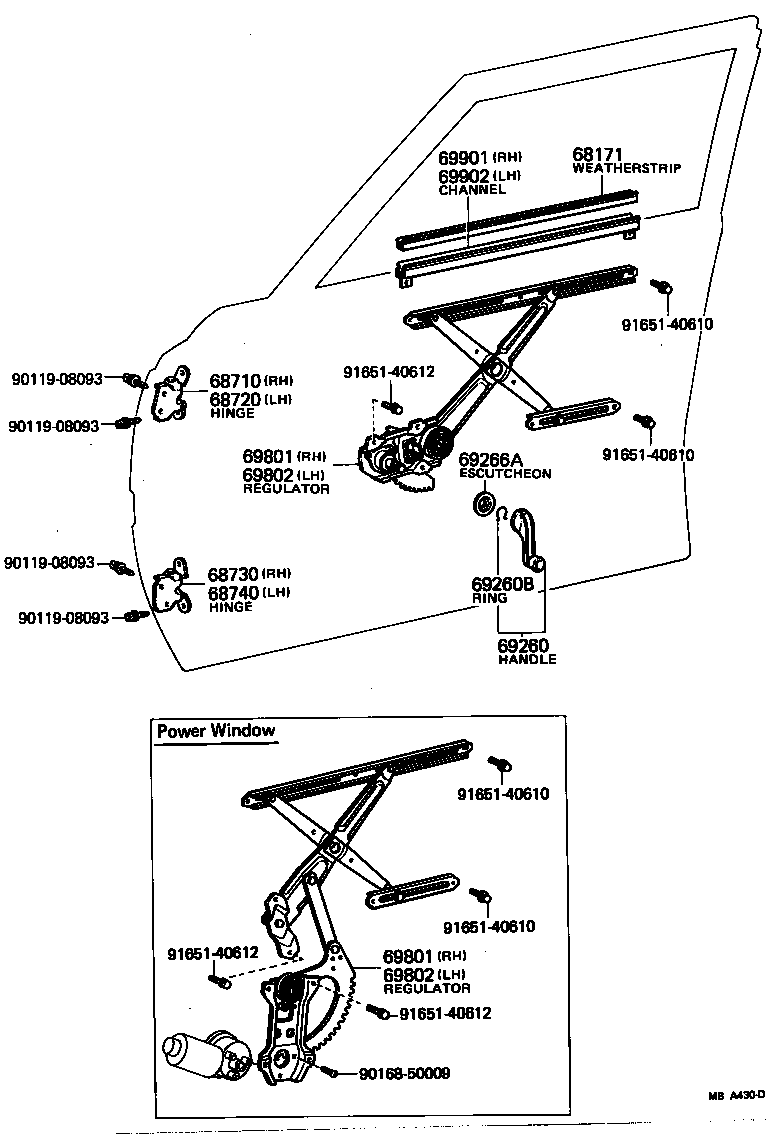

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69801 69802 69802 69901 69902 9011908093 9011908093 9011908093 9011908093 9016850009 9165140610 9165140610 9165140610 9165140610 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
69971-22010

LS110,MS11#,RS110

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-30070

LS110,MS11#,RS110

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-30010

LS110,MS11#,RS110

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20070

LS110,MS11#,RS110

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20070

LS110,MS11#,RS110

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2202003

LS110,MS112,RS110..BTP,DLX

GRAY,GRAY,TRIM1#

 2
69260-2202025

LS110,MS112,RS110..BTP,DLX

BEIGE,BEIGE,TRIM4#

 2
69260-2202015

LS110,MS11#,RS110..BTP,DLX

GREIGE,BEIGE,TRIM4#

 2
69260-2202004

LS110,MS11#,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 2
69260-2202004

LS110,MS112,RS110..BTP,DLX

BLUE,BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LS110,MS11#,RS110

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69272-30010

LS110,MS11#,RS110..BTP,DLX

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-30240

LS110,MS11#,RS110..BTP,DLX

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-30240

LS110,MS11#,RS110..BTP,DLX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-30170

LS110,MS11#,RS110..BTP,DLX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-30170

LS110,MS11#,RS110..BTP,DLX

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-22040

LS110,MS11#,RS110

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-22040

LS110,MS11#,RS110

 1
Common parts
90119-08093
90168-50009
91651-40610
91651-40612
