LS110L-SEHDSW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)MS111..ARL ; (7909-8108)MS112..WG..DLX ; (7909-8108)LS110,MS111..WG ; (7

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44642 44643 44645 44647 44657A 44662 44662B 44662C 44669 44696 44697 44697A 44730 44731A 9017908038 9331914008 9411070600
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-22090

LS110..SED

JKC,9INCHES

 1
44610 - BOOSTER ASSY, BRAKE
44610-30330

LS110..SED

JKC,9INCHES

 1
44610-30330

LS110

JKC,9INCHES

 1
44610K - BOOSTER KIT, BRAKE
04443-30270

LS110

JKC,9INCHES

 1
04443-30270

LS110..SED

JKC,9INCHES

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

LS110..SED

JKC,9INCHES

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

LS110..SED

JKC,9INCHES

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20020

LS110

 1
44730-24010

LS110

 1
44731A - GASKET, BRAKE BOOSTER BRACKET
44785-30020

LS110,MS11#,RS110

 1
Common parts
90179-08038
93319-14008
94110-70600

(7909-8108)LS110,MS111..SED ; (7909-8108)MS112,RS110..SED..ARL,GEN ; (8108- )

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 44696 44730 44731A 8401 9017908038
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LS110..SED

JKC,9INCHES

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-22090

LS110..SED

JKC,9INCHES

 1
44610 - BOOSTER ASSY, BRAKE
44610-30330

LS110..SED

JKC,9INCHES

 1
44610-30330

LS110

JKC,9INCHES

 1
44610K - BOOSTER KIT, BRAKE
04443-30270

LS110

JKC,9INCHES

 1
04443-30270

LS110..SED

JKC,9INCHES

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

LS110..SED

JKC,9INCHES

 1
44642 - PISTON, BRAKE BOOSTER
44642-30310

LS110..SED

JKC,9INCHES

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

LS110..SED

JKC,9INCHES

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

LS110..SED

JKC,9INCHES

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20020

LS110

 1
44730-24010

LS110

 1
44731A - GASKET, BRAKE BOOSTER BRACKET
44785-30020

LS110,MS11#,RS110

 1
Common parts
90179-08038
Linked diagrams
8401

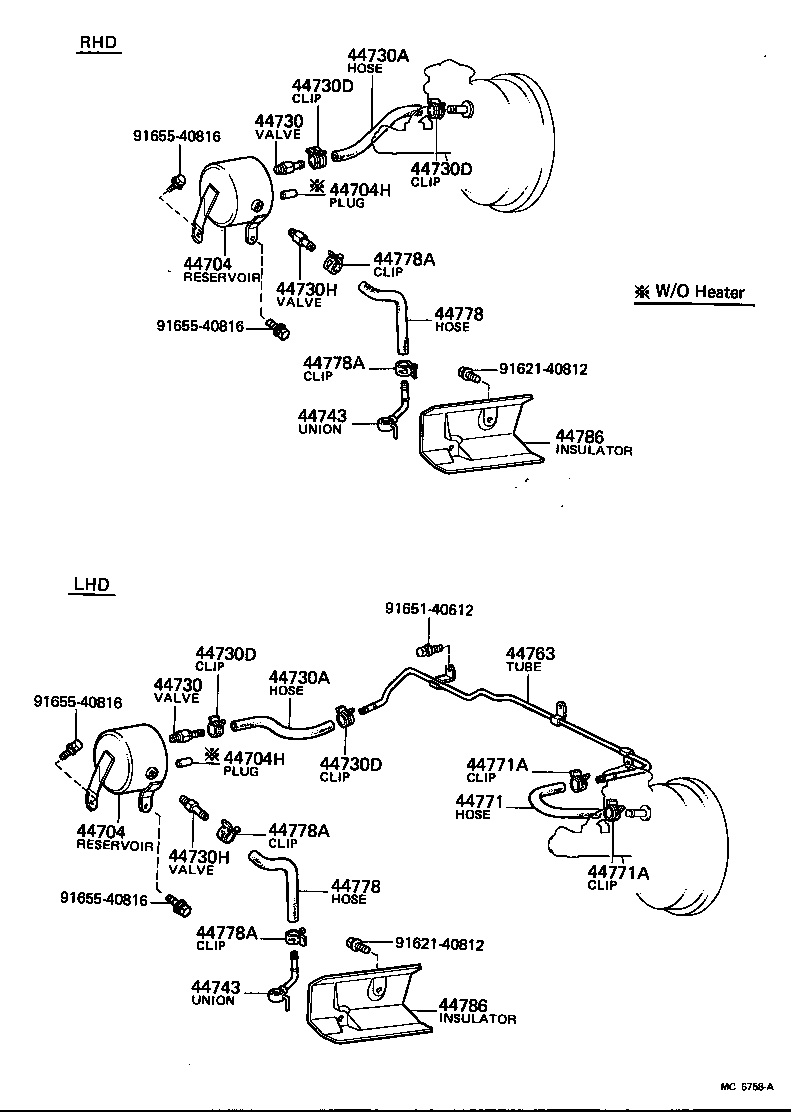

(7909- )LS110

Click highlighted areas on diagram

diagram 44704 44704 44704H 44704H 44730 44730 44730A 44730A 44730D 44730D 44730D 44730D 44730H 44730H 44743 44743 44763 44771 44771A 44771A 44778 44778 44778A 44778A 44778A 44778A 44786 44786 9162140812 9162140812 9165140612 9165540816 9165540816 9165540816 9165540816
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-30020

LS110

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-30020

LS110

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20020

LS110

 1
44730-24010

LS110

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20020

LS110

 1
44730-24010

LS110

 1
44730A - HOSE, VACUUM, NO.1
95441-09250

LS110

 1
90445-17895

LS110

 1
44730A - HOSE, VACUUM, NO.1
95441-09250

LS110

 1
90445-17895

LS110

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

LS110,MS112,RS110

 2
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

LS110,MS112,RS110

 2
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

LS110,MS112,RS110

 2
90467-16141

LS110,MS11#,RS110

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

LS110,MS112,RS110

 2
90467-16141

LS110,MS11#,RS110

 2
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-60040

LS110

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-60040

LS110

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09018

LS110

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09018

LS110

 1
44763 - TUBE, BOOSTER VACUUM
44763-30020

LS110..LHD

 1
44763-30050

LS110..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-30010

LS110..LHD

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16002

LS110..LHD

 2
90467-16141

LS110..LHD

 2
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16002

LS110..LHD

 2
90467-16141

LS110..LHD

 2
44778 - HOSE, CONNECTOR TO CHECK VALVE
44773-30260

LS110

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44773-30260

LS110

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

LS110

 2
90467-16141

LS110

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

LS110

 2
90467-16141

LS110

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

LS110

 2
90467-16141

LS110

 2
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

LS110

 2
90467-16141

LS110

 2
44786 - INSULATOR, HOSE HEAT
44786-26010

LS110

 1
44786 - INSULATOR, HOSE HEAT
44786-26010

LS110

 1
Common parts
91621-40812
91651-40612
91655-40816
