JZS155R-AEPQF (1995)

Toyota Crown

Production Dec 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )RHD..SED

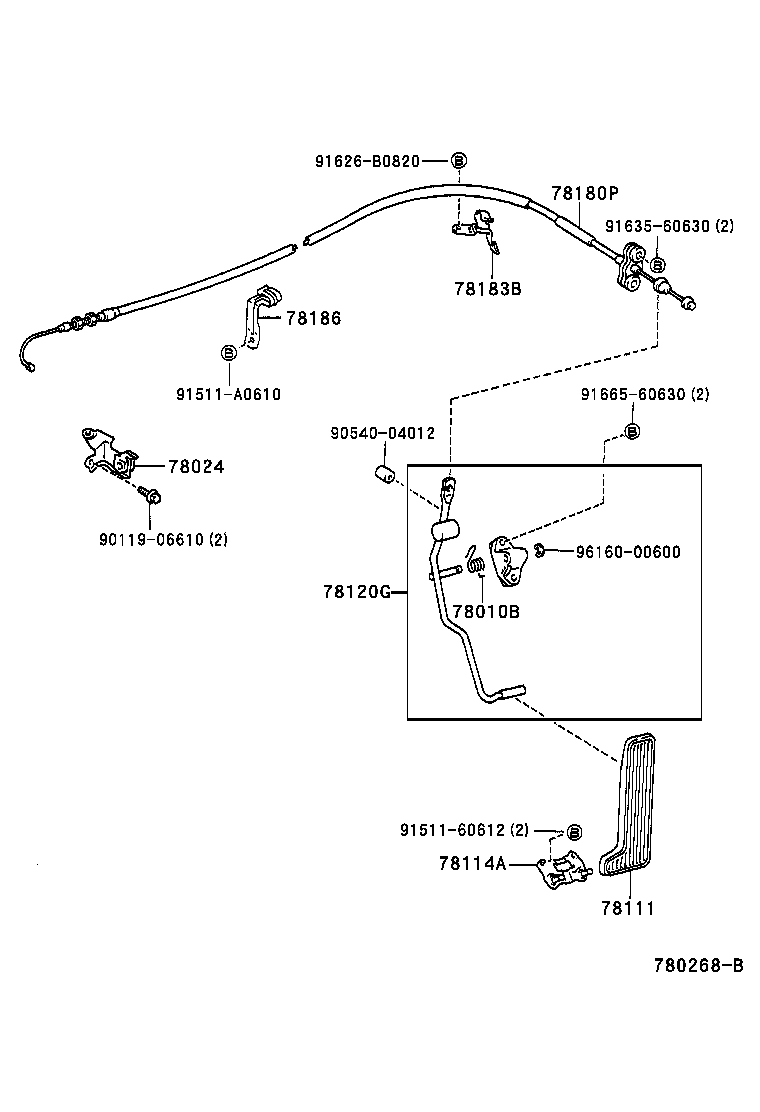

Click highlighted areas on diagram

diagram 78010B 78024 78111 78114A 78120G 78180P 78183B 78186 9011906610 9054004012 9151160612 91511A0610 91626B0820 9163560630 9166560630 9616000600
Part # Description Qty Price
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90959-03104

GS151,JZS155..RHD

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-24031

JZS155..4FC..SED

 1
78111 - PEDAL, ACCELERATOR
78111-30081

GS151,JZS155..RHD

 1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30050

GS151,JZS155..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30880

JZS155..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A480

JZS155..RHD

 1
78180-3A520

JZS155..RHD..SED

LEADED GASOLINE SPEC

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-30130

GS151,JZS155..RHD

 1
78183-30170

JZS155..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-30120

JZS155..RHD

 1
Common parts
90119-06610
90540-04012
91511-60612
91511-A0610
91626-B0820
91635-60630
91665-60630
96160-00600
