JZS155R-AEPQF (1995)
Toyota Crown

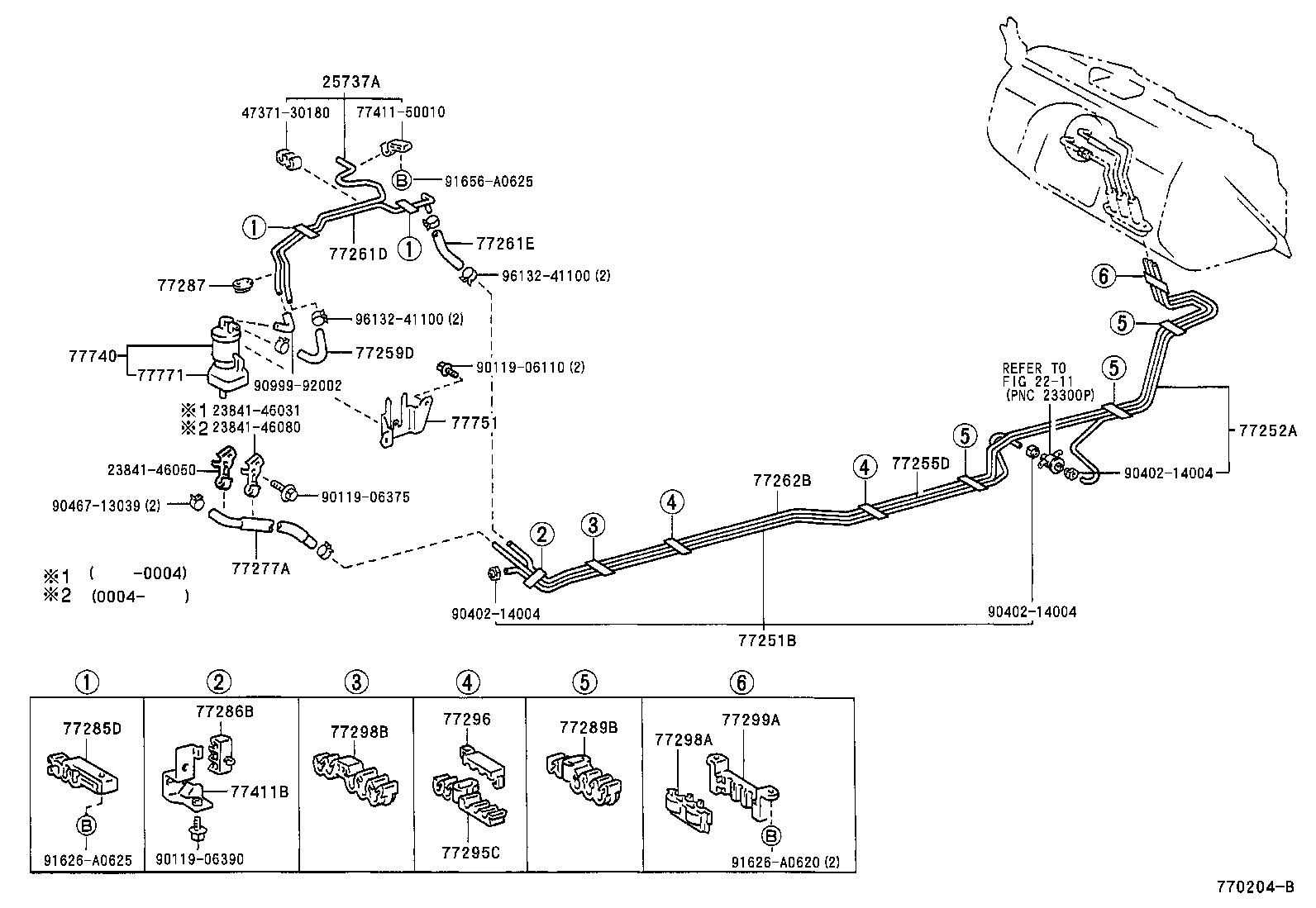

ILLUST NO. 2 OF 2(9512- )RHD..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25737A - FUEL TUBE, NO.1 | ||||
| 25737-46060 |
2JZGE..JZS155..GCC;1GFE,2JZGE..GS151,JZS155..RHD |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-30280 |
GS151,JZS155 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30440 |
GS151,JZS155 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-30110 |
GS151,JZS155..RHD |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-30140 |
JZS155..GCC;JZS155..RHD..SED |
1 | ||
| 77259-30160 |
JZS155..RHD THAILAND SPEC |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-30170 |
GS151,JZS155..RHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
JZS155..GCC;GS151,JZS155..RHD *H,L=120 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-30190 |
JZS155..RHD..SED LEADED GASOLINE SPEC |
1 | ||
| 77262-30120 |
GS151,JZS155..RHD |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-46170 |
JZS155..RHD |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-22020 |
JZS155..GCC;GS151,JZS155..RHD |
2 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-30060 |
GS151,JZS155..GEN |
1 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-22010 |
JZS155..GCC;GS151,JZS155..RHD |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30040 |
GS151,JZS155 |
3 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-30040 |
GS151,JZS155 |
2 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-30060 |
GS151,JZS155 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30110 |
GS151,JZS155 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30090 |
GS151,JZS155 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-30020 |
GS151,JZS155 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22020 |
GS151,JZS155 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30210 |
JZS155..GCC;JZS155..RHD..SED |
1 | ||
| 77740-30230 |
JZS155..RHD THAILAND SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-30080 |
JZS155..GCC;GS151,JZS155..RHD |
1 | ||
| 77771 - TANK, CHARCOAL CANISTER | ||||
| 77771-30030 |
JZS155..GCC;JZS155..RHD..SED |
1 | ||
| Common parts | ||||
| 23841-46031 | ||||
| 23841-46050 | ||||
| 23841-46080 | ||||
| 47371-30180 | ||||
| 77411-50010 | ||||
| 90119-06110 | ||||
| 90119-06375 | ||||
| 90119-06390 | ||||
| 90402-14004 | ||||
| 90467-13039 | ||||
| 90999-92002 | ||||
| 91626-A0620 | ||||
| 91626-A0625 | ||||
| 91656-A0625 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(9512- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-30090 |
GS151,JZS155 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30070 |
GS151,JZS155 |
1 | ||
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30250 |
GS151,JZS155 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77030-30080 |
GS151,JZS155 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30460 |
GS151,JZS155 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
GS151,JZS155 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
GS151,JZS155 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
GS151,JZS155 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
GS151,JZS155 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30240 |
JZS155..RHD..SED LEADED GASOLINE SPEC |
1 | ||
| 77201-30340 |
GS151,JZS155..RHD |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-30090 |
JZS155 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-30090 |
JZS155 |
1 | ||
| 77217B - HOSE, FUEL TANK INLET | ||||
| 77217-30060 |
GS151,JZS155 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-30040 |
JZS155..SED |
1 | ||
| 77296C - PLATE, FUEL HOSE GROMMET SUPPORT | ||||
| 77296-22070 |
GS151,JZS155 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-14090 |
GS151,JZS155 |
1 | ||
| 77310-48020 |
GS151,JZS155 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-14010 |
GS151,JZS155 |
1 | ||
| 77316-16010 |
GS151,JZS155 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30310 |
JZS155..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30020 |
JZS155..SED |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GS151,JZS155 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-22020 |
GS151,JZS155 |
1 | ||
| Common parts | ||||
| 90129-08006 | ||||
| 90149-60080 | ||||
| 90159-50069 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90179-10112 | ||||
| 90189-05151 | ||||
| 90460-22002 | ||||
| 90467-11085 | ||||
| 90467-13061 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 94130-60400 | ||||
| 94130-60500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 95311-13010 | ||||
| 96132-41100 | ||||
