JZS155R-AEPQF (1995)
Toyota Crown

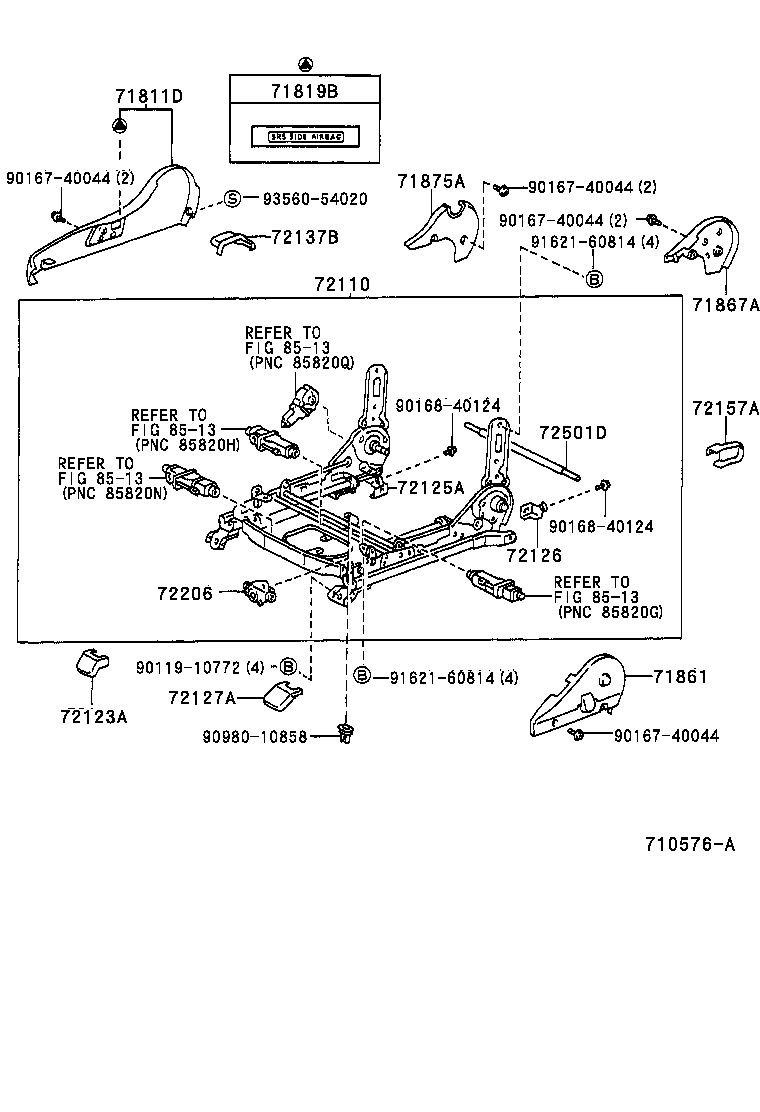

ILLUST NO. 2 OF 2(9512- )RHD..SED
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30260E0 |
JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71811-30260B1 |
JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71811-30340B1 |
JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71811-30340E0 |
JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020B5 |
JZS155..RHD DK.CHARCOAL,TRIM1# |
1 | ||
| 71819-12020B3 |
GS151,JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71819-12020E1 |
GS151,JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-30060B1 |
JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71861-30060E0 |
JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30060B1 |
JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71867-30060E0 |
JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-30080B2 |
JZS155..RHD BLUE GRAY,TRIM17 |
1 | ||
| 71875-30070B1 |
JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71875-30070E0 |
JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71875-30080E0 |
JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71875-30080B1 |
JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 72110 - REGULATOR ASSY, POWER SEAT, RH | ||||
| 72010-30010 |
JZS155..RHD |
1 | ||
| 72010-30030 |
JZS155..RHD |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130B3 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72123-20130E2 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-22010 |
JZS155..ROY |
1 | ||
| 72126 - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72126-22010 |
JZS155..ROY |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-30060E0 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72127-30060B1 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30100B1 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72137-30100E0 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30070B1 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72157-30070E0 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30050 |
JZS155..RHD |
1 | ||
| 72206-30060 |
JZS155..RHD |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-22030 |
JZS155..RHD |
1 | ||
| 72501-30090 |
JZS155..RHD |
1 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90168-40124 | ||||
| 90980-10858 | ||||
| 91621-60814 | ||||
| 93560-54020 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 1 OF 2(9512- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3F220B0 |
JZS155..RHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 71071-3F220E0 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 71071-3K030E0 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 71071-3K030B0 |
JZS155..RHD DK. BLUE GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3A530E9 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 71072-3A530B9 |
JZS155..RHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 71072-3F370E0 |
JZS155..RHD..SED ANTELOPE,TRIM4# |
1 | ||
| 71072-3F370B0 |
JZS155..RHD..SED DK. BLUE GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F530B0 |
JZS155..RHD DK. BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870E0 |
JZS155..ROY ANTELOPE,TRIM4# |
1 | ||
| 71073-3F530E0 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 71073-3A870B0 |
JZS155..ROY DK.BLUE GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3A870E0 |
JZS155..ROY ANTELOPE,TRIM4# |
1 | ||
| 71074-3A540B0 |
JZS155..RHD DK. BLUE GRAY,TRIM1# |
1 | ||
| 71073-3A870B0 |
JZS155..ROY DK.BLUE GRAY,TRIM1# |
1 | ||
| 71074-3A540E0 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3F400E0 |
JZS155..RHD ***,ANTELOPE,TRIM4# |
1 | ||
| 71410-3F400B0 |
JZS155..RHD ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3K240B0 |
JZS155..RHD ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71410-3K240E0 |
JZS155..RHD ***,ANTELOPE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3A590B9 |
JZS155..RHD ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3F420B0 |
JZS155..RHD..SED ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71420-3A590E9 |
JZS155..RHD ***,ANTELOPE,TRIM4# |
1 | ||
| 71420-3F420E0 |
JZS155..RHD..SED ***,ANTELOPE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3F850E0 |
JZS155..RHD ***,ANTELOPE,TRIM4# |
1 | ||
| 71040-30030B0 |
JZS155..RHD ***,DK. BLUE GRAY,TRIM1# |
1 | ||
| 71430-3F850B0 |
JZS155..RHD ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71040-30030E0 |
JZS155..RHD ***,ANTELOPE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F770B7 |
JZS155..RHD ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71440-3F770E7 |
JZS155..RHD ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-3K710B0 |
JZS155..RHD..SED ***,DK.BLUE GRAY,TRIM1# |
1 | ||
| 71440-3K710E0 |
JZS155..RHD..SED ***,ANTELOPE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30800 |
GS151,JZS155 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-30460 |
JZS155 |
1 | ||
| 71512-30560 |
GS151,JZS155..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30720 |
JZS155 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30720 |
JZS155 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30620 |
JZS155..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30290 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A220 |
JZS155..RHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-3A060 |
JZS155..RHD |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30390E0 |
JZS155..ROY QUARTZ,TRIM4# |
1 | ||
| 71705-30390B0 |
JZS155..ROY BLUE GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30390E0 |
JZS155..ROY QUARTZ,TRIM4# |
1 | ||
| 71705-30390B0 |
JZS155..ROY BLUE GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30720E0 |
JZS155..ROY QUARTZ,TRIM4# |
2 | ||
| 71910-3A090E0 |
JZS155..RHD..SED QUARTZ,TRIM4#,RH |
1 | ||
| 71910-3A090B0 |
JZS155..RHD..SED BLUE GRAY,TRIM1#,RH |
1 | ||
| 71920-30580E0 |
JZS155..RHD..SED QUARTZ,TRIM4#,LH |
1 | ||
| 71920-30580B0 |
JZS155..RHD..SED BLUE GRAY,TRIM1#,LH |
1 | ||
| 71910-30720B0 |
JZS155..ROY BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30100E0 |
GS151,JZS155 W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-30020B1 |
GS151,JZS155 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-30020E0 |
GS151,JZS155 W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71930-30100B1 |
GS151,JZS155 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30100E0 |
GS151,JZS155 W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-30020B1 |
GS151,JZS155 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-30020E0 |
GS151,JZS155 W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71930-30100B1 |
GS151,JZS155 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30190 |
JZS155..RHD |
1 | ||
| 72750-30191 |
JZS155..RHD |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-30020E0 |
JZS155..ROY QUARTZ,TRIM4# |
4 | ||
| 74617-30020B3 |
JZS155..ROY BLUE GRAY,TRIM1# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-30020E0 |
JZS155..ROY QUARTZ,TRIM4# |
4 | ||
| 74617-30020B3 |
JZS155..ROY BLUE GRAY,TRIM1# |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30050E0 |
JZS155..ROY QUARTZ,TRIM4# |
2 | ||
| 74620-30050B2 |
JZS155..ROY BLUE GRAY,TRIM1# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
JZS155..ROY |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
JZS155..ROY |
4 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-3F310 |
JZS155..RHD..SED LH |
1 | ||
| 82711-1E360 |
JZS155..RHD..SED RH |
1 | ||
| Common parts | ||||
| 90159-60084 | ||||
| 91116-50616 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 8513 | ||||

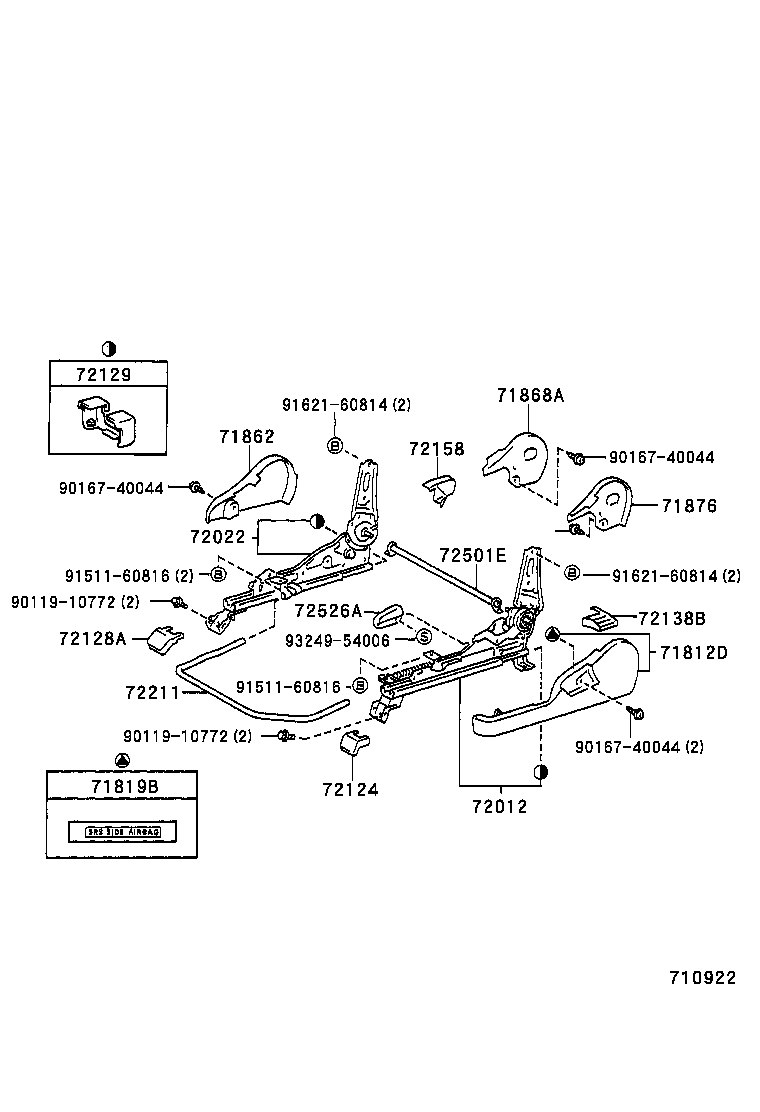

ILLUST NO. 2 OF 2(9512- )RHD..SED
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30240B1 |
GS151;JZS155..RHD..SED BLUE GRAY,TRIM1# |
1 | ||
| 71812-30160E0 |
JZS155..RHD;JZS155..SPSAL QUARTZ,TRIM4# |
1 | ||
| 71812-30240E0 |
GS151;JZS155..RHD..SED QUARTZ,TRIM4# |
1 | ||
| 71812-30160B1 |
JZS155..RHD;JZS155..SPSAL BLUE GRAY,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020B5 |
JZS155..RHD DK.CHARCOAL,TRIM1# |
1 | ||
| 71819-12020B3 |
GS151,JZS155..RHD BLUE GRAY,TRIM1# |
1 | ||
| 71819-12020E1 |
GS151,JZS155..RHD QUARTZ,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-30040B1 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL BLUE GRAY,TRIM1# |
1 | ||
| 71862-30040E0 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL QUARTZ,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30120B1 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL BLUE GRAY,TRIM1# |
1 | ||
| 71868-30120E0 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL QUARTZ,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-30060B1 |
JZS155..RHD;JZS155..SPSAL BLUE GRAY,TRIM1# |
1 | ||
| 71876-30060E0 |
JZS155..RHD;JZS155..SPSAL QUARTZ,TRIM4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-30120 |
JZS155..RHD;JZS155..SPSAL |
1 | ||
| 72012-30121 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-30011 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL |
1 | ||
| 72022-30010 |
JZS155..RHD;JZS155..SPSAL |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130E2 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72123-20130B3 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-30060B1 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72127-30060E0 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
GS151;JZS155..SED |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-30050B1 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72138-30050E0 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-30060B1 |
GS151,JZS155 BLUE GRAY,TRIM1# |
1 | ||
| 72158-30060E0 |
GS151,JZS155 QUARTZ,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30160 |
GS151;JZS155..SED |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-30070 |
JZS155..RHD;JZS155..SPSAL |
1 | ||
| 72501-30100 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12050B2 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL BLUE GRAY,TRIM1# |
1 | ||
| 72526-12050E1 |
JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 91621-60814 | ||||
| 93249-54006 | ||||
(9512- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
