JZS155R-AEPQF (1995)

Toyota Crown

Production Dec 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )RHD..SED

Click highlighted areas on diagram

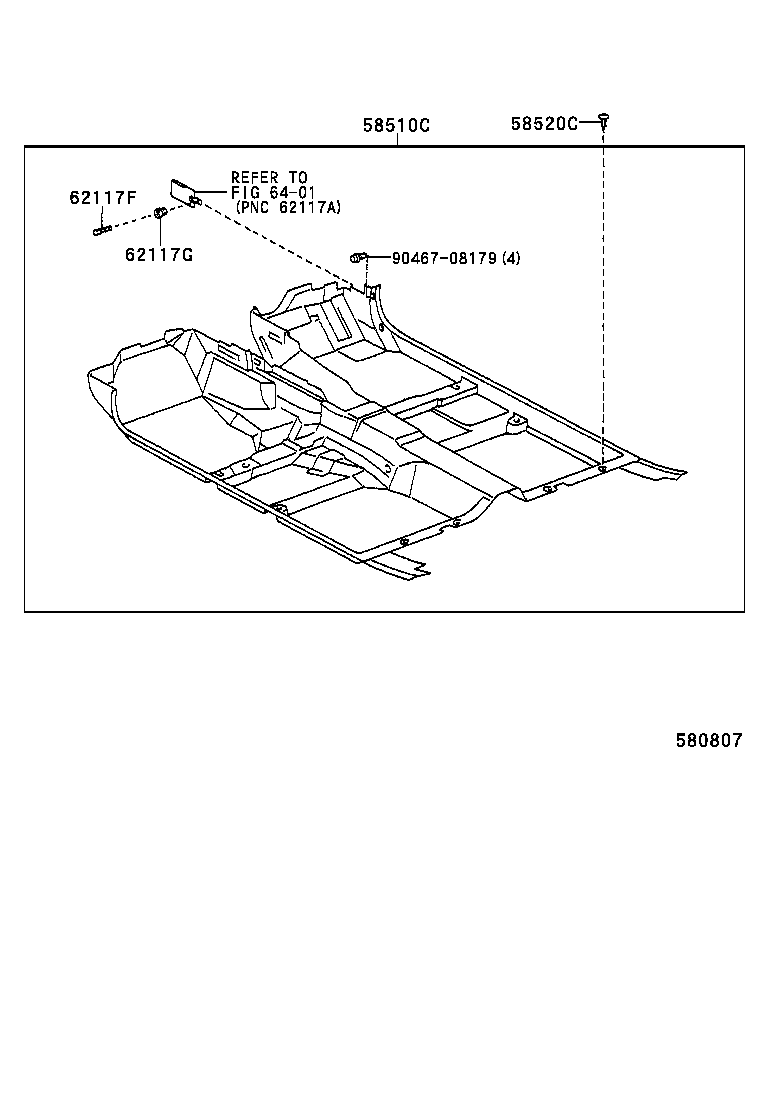

diagram 58510C 58520C 62117F 62117G 6401 9046708179
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-3F240B0

JZS155..RHD

BLUE GRAY,TRIM1#

 1
58510-3F240E0

JZS155..RHD

QUARTZ,TRIM4#

 1
58510-3F221B0

JZS155..RHD..SED

BLUE GRAY,TRIM1#

 1
58510-3F221E0

JZS155..RHD..SED

QUARTZ,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

JZS155

BLACK,TRIM1#,4#

 5
62117F - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-0501511

JZS155..ROY..SED

BLACK,TRIM1#,4#

 2
62117G - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-0803111

JZS155..ROY

BLACK,TRIM1#,4#

 2
90467-0803101

JZS155..ROY..SED

BLACK,TRIM1#,4#

 2
Common parts
90467-08179
Linked diagrams
6401
