JZS155R-AEPQF (1995)
Toyota Crown
ILLUST NO. 1 OF 2(9512- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30540 |
JZS155..RHD |
1 | ||
| 47311-30590 |
GS151,JZS155..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS155 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30390 |
GS151,JZS155..GEN;JZS155..SPSAL..GCC |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS155..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30290 |
JZS155..RHD |
1 | ||
| 47313-30340 |
GS151,JZS155..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS155 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS155 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS155 |
2 | ||
| 90401-10058 |
JZS155 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS155 |
2 | ||
| 90401-10058 |
JZS155 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30360 |
JZS155..RHD |
1 | ||
| 47314-30380 |
GS151,JZS155..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS155 |
2 | ||
| 90401-10058 |
JZS155 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS155 |
2 | ||
| 90401-10058 |
JZS155 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
JZS155 |
4 | ||
| 47389-50020 |
GS151,JZS155 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02840 |
GS151,JZS155 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02840 |
GS151,JZS155 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30270 |
JZS155..RHD |
1 | ||
| 47321-30310 |
GS151,JZS155..RHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10281 |
GS151,JZS155 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30180 |
JZS155..RHD |
1 | ||
| 47324-30200 |
GS151,JZS155..RHD |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-30030 |
GS151,JZS155 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-30050 |
GS151,JZS155 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-30020 |
GS151,JZS155 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30420 |
JZS155..ROY..GCC;GS151,JZS155..RHD |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30390 |
GS151,JZS155..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22420 |
GS151,JZS155 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22530 |
GS151,JZS155 |
2 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-06778 | ||||
| 90464-00531 | ||||
| 90468-08040 | ||||
| 90480-01628 | ||||
| 91626-B0616 | ||||

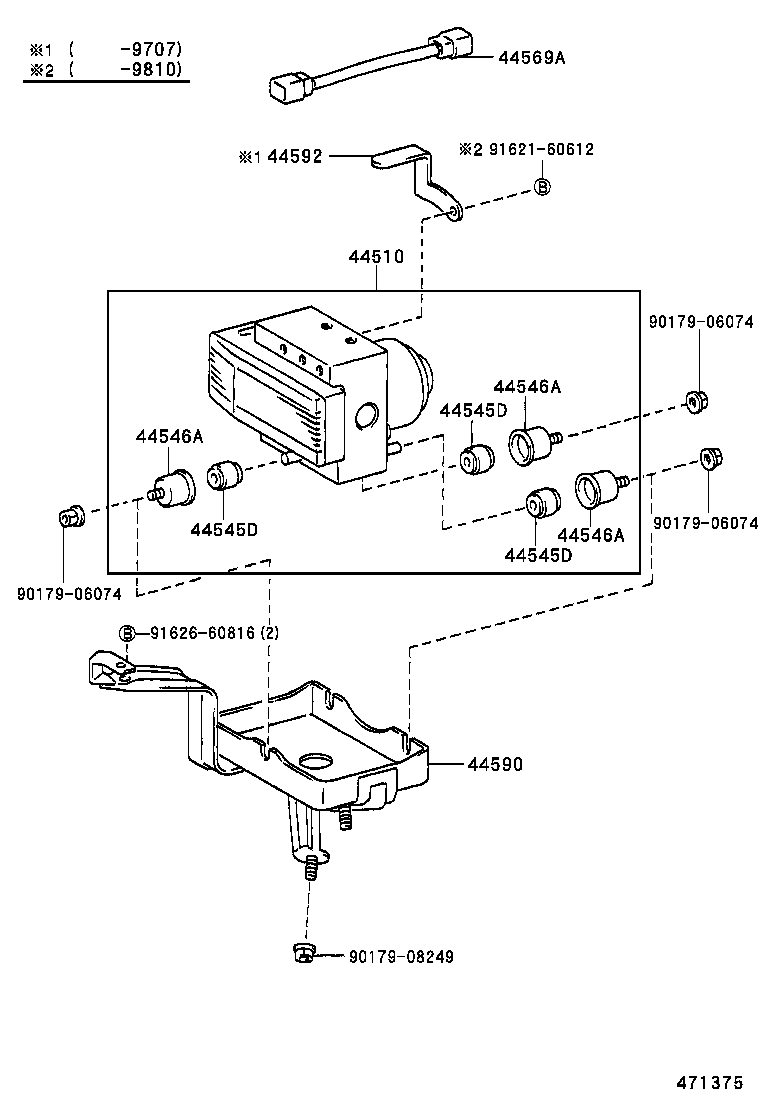

ILLUST NO. 2 OF 2(9609- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-30020 |
GS151,JZS155..RHD |
1 | ||
| 44510-30150 |
JZS155..RHD |
1 | ||
| 44510-30210 |
JZS155..RHD |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
JZS155 |
3 | ||
| 44545-35080 |
GS151,JZS155 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
JZS155 |
3 | ||
| 44545-35080 |
GS151,JZS155 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
JZS155 |
3 | ||
| 44545-35080 |
GS151,JZS155 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS155 |
3 | ||
| 44546-30110 |
JZS155 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS155 |
3 | ||
| 44546-30110 |
JZS155 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS155 |
3 | ||
| 44546-30110 |
JZS155 |
3 | ||
| 44569A - HARNESS, BRAKE ACTUATOR | ||||
| 44580-30030 |
GS151,JZS155..RHD |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-30020 |
JZS155..RHD |
1 | ||
| 44590-30060 |
GS151,JZS155..RHD |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-30060 |
JZS155 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 91621-60612 | ||||
| 91626-60816 | ||||

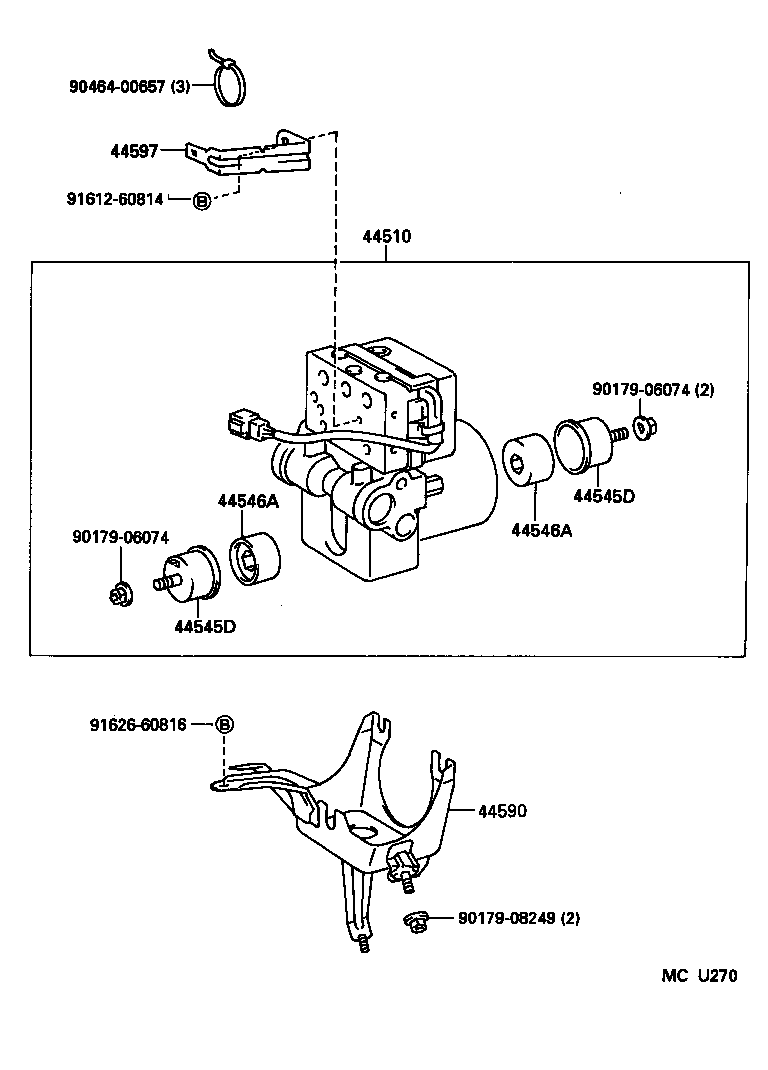

ILLUST NO. 2 OF 2(9512-9609)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-30020 |
GS151,JZS155..RHD |
1 | ||
| 44510-30150 |
JZS155..RHD |
1 | ||
| 44510-30210 |
JZS155..RHD |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
JZS155 |
3 | ||
| 44545-35080 |
GS151,JZS155 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
JZS155 |
3 | ||
| 44545-35080 |
GS151,JZS155 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS155 |
3 | ||
| 44546-30110 |
JZS155 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS155 |
3 | ||
| 44546-30110 |
JZS155 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-30020 |
JZS155..RHD |
1 | ||
| 44590-30060 |
GS151,JZS155..RHD |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-30090 |
JZS155..RHD |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 90464-00657 | ||||
| 91612-60814 | ||||
| 91626-60816 | ||||
