JZS155R-AEPQF (1995)
Toyota Crown
ILLUST NO. 2 OF 2(9512- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-22060 |
GS151,JZS155 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-22060 |
GS151,JZS155 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-22040 |
GS151,JZS155 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-22040 |
GS151,JZS155 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GS151,JZS155 |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GS151,JZS155 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
GS151,JZS155 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-22040 |
GS151,JZS155 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-22040 |
GS151,JZS155 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GS151,JZS155 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GS151,JZS155 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30010 |
GS151,JZS155 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22030 |
GS151,JZS155 |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-14049 |
GS151,JZS155 |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
GS151,JZS155 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS151,JZS155 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GS151,JZS155 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-32010 |
GS151,JZS155 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-32010 |
GS151,JZS155 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
GS151,JZS155 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GS151,JZS155 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-22040 |
GS151,JZS155 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GS151,JZS155 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
GS151,JZS155 T=0.3 |
1 | ||
| 90564-09186 |
GS151,JZS155 T=0.9 |
1 | ||
| 90564-09185 |
GS151,JZS155 T=0.6 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22040 |
GS151,JZS155 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GS151,JZS155 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
GS151,JZS155 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
GS151,JZS155 |
1 | ||
| Common parts | ||||
| 90179-10085 | ||||
| 91611-60612 | ||||
ILLUST NO. 1 OF 2(9707- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30110 |
JZS155..RHD |
1 | ||
| 46130-22100 |
GS151,JZS155..RHD |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30140 |
JZS155..RHD |
1 | ||
| 46201-30170 |
GS151,JZS155..RHD |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS151,JZS155..RHD |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10165 |
GS151,JZS155..RHD |
1 | ||
| 90109-10033 |
JZS155..RHD |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS151,JZS155..RHD |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS151,JZS155..RHD |
2 | ||
| 46201H - SPRING, TORSION(FOR PARKING PEDAL) | ||||
| 90949-03052 |
GS151,JZS155..RHD |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30141E0 |
GS151,JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 46209-30141B0 |
GS151,JZS155..RHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 46209-30140B0 |
JZS155..RHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 46209-30140E0 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 46216 - CUSHION, PARKING PEDAL | ||||
| 90541-07008 |
JZS155..RHD |
1 | ||
| 90541-07044 |
GS151,JZS155..RHD |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
JZS155..RHD |
1 | ||
| 46220-22010 |
GS151,JZS155..RHD |
1 | ||
| 46220B - BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90386-08059 |
GS151,JZS155..RHD |
2 | ||
| 46220B - BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90386-08059 |
GS151,JZS155..RHD |
2 | ||
| 46220C - RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 96160-00700 |
GS151,JZS155..RHD |
2 | ||
| 46220C - RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 96160-00700 |
GS151,JZS155..RHD |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GS151,JZS155..RHD |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-22040 |
GS151,JZS155 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30640 |
JZS155..RHD |
1 | ||
| 46410-22230 |
GS151,JZS155..RHD |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90249-10012 |
GS151,JZS155..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30560 |
GS151,JZS155 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30130 |
GS151,JZS155 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-30120 |
GS151,JZS155 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-22040 |
GS151,JZS155..RHD |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-22070 |
GS151,JZS155 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-22061 |
GS151,JZS155 |
2 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-22061 |
GS151,JZS155 |
2 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-22040 |
GS151,JZS155 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-06428 | ||||
| 90119-08681 | ||||
| 90179-08013 | ||||
| 90179-08185 | ||||
| 90461-10648 | ||||
| 90467-06124 | ||||
| 90468-08001 | ||||
| 91626-60625 | ||||
| 91626-60822 | ||||
| 91633-60625 | ||||
| 94110-51000 | ||||
| 94120-40600 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

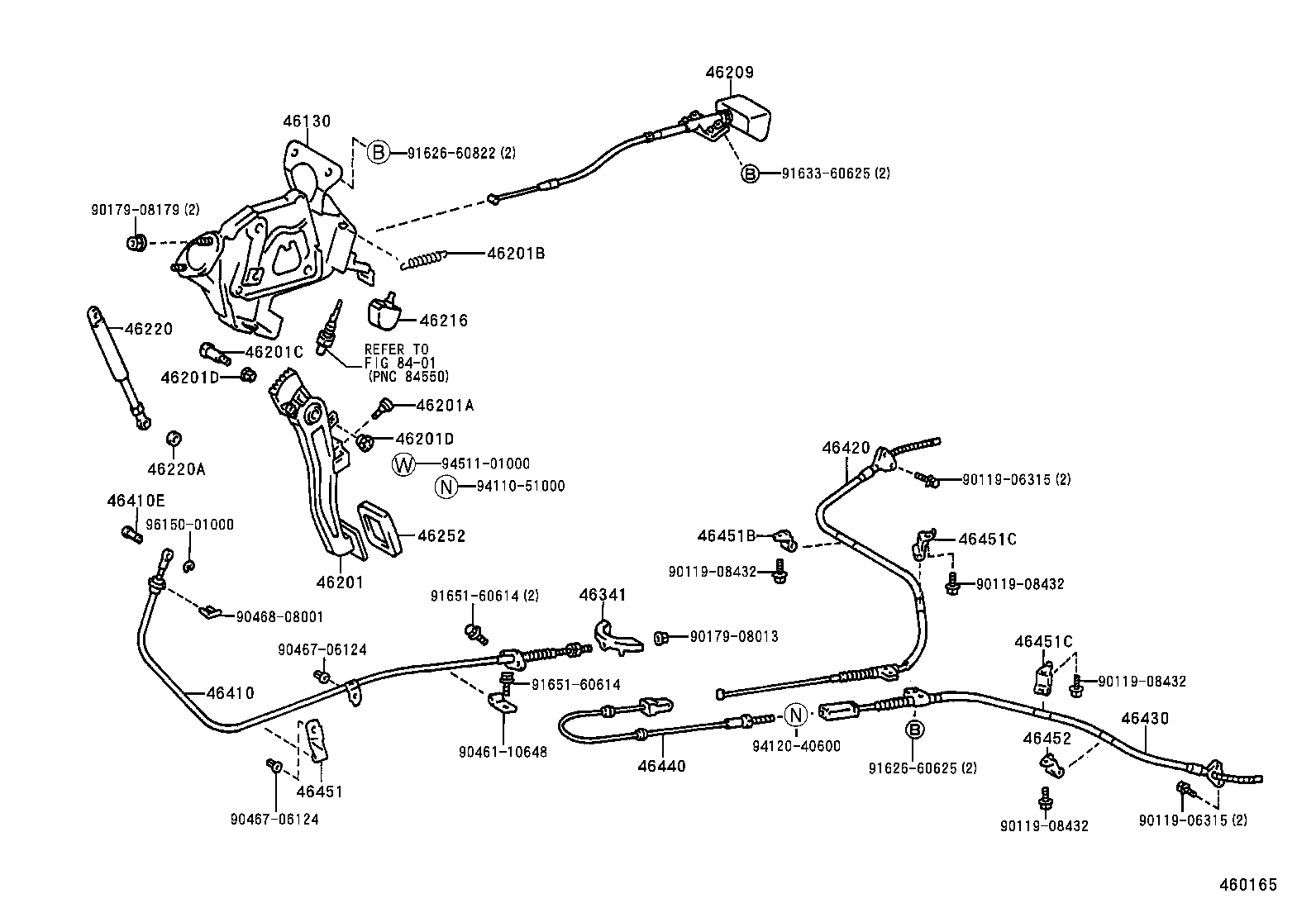

ILLUST NO. 1 OF 2(9512-9707)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30110 |
JZS155..RHD |
1 | ||
| 46130-22100 |
GS151,JZS155..RHD |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30140 |
JZS155..RHD |
1 | ||
| 46201-30170 |
GS151,JZS155..RHD |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS151,JZS155..RHD |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20030 |
JZS155..RHD |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10165 |
GS151,JZS155..RHD |
1 | ||
| 90109-10033 |
JZS155..RHD |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS151,JZS155..RHD |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS151,JZS155..RHD |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30141E0 |
GS151,JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 46209-30141B0 |
GS151,JZS155..RHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 46209-30140B0 |
JZS155..RHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 46209-30140E0 |
JZS155..RHD ANTELOPE,TRIM4# |
1 | ||
| 46216 - CUSHION, PARKING PEDAL | ||||
| 90541-07008 |
JZS155..RHD |
1 | ||
| 90541-07044 |
GS151,JZS155..RHD |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
JZS155..RHD |
1 | ||
| 46220-22010 |
GS151,JZS155..RHD |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07012 |
JZS155..RHD |
2 | ||
| 90540-07010 |
JZS155..RHD |
4 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GS151,JZS155..RHD |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-22040 |
GS151,JZS155 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30640 |
JZS155..RHD |
1 | ||
| 46410-22230 |
GS151,JZS155..RHD |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90249-10012 |
GS151,JZS155..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30560 |
GS151,JZS155 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30130 |
GS151,JZS155 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-30120 |
GS151,JZS155 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-22040 |
GS151,JZS155..RHD |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-22070 |
GS151,JZS155 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-22061 |
GS151,JZS155 |
2 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-22061 |
GS151,JZS155 |
2 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-22040 |
GS151,JZS155 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-08432 | ||||
| 90179-08013 | ||||
| 90179-08179 | ||||
| 90461-10648 | ||||
| 90467-06124 | ||||
| 90468-08001 | ||||
| 91626-60625 | ||||
| 91626-60822 | ||||
| 91633-60625 | ||||
| 91651-60614 | ||||
| 94110-51000 | ||||
| 94120-40600 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
