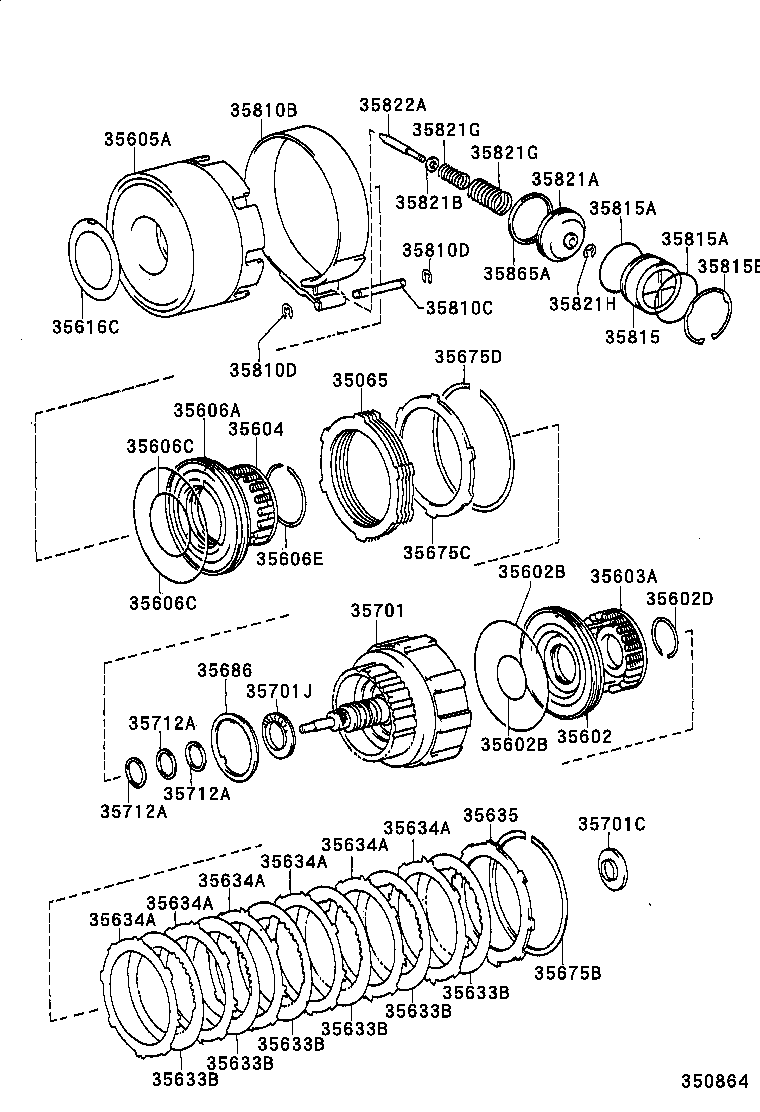

JZS155R-AEPQF (1995)
Toyota Crown
(9512-9909)LHD ; (9608-9909)JZS155..RHD
A340E,AXLE CODE=A02A(RHD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30080 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35602-22020 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35602-30062 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
JZS155..RHD..SED AXLE CODE=A02A,CENTER |
1 | ||
| 90301-39005 |
JZS155..4FC INNER |
1 | ||
| 90301-99058 |
JZS155..4FC OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
JZS155..RHD..SED AXLE CODE=A02A,CENTER |
1 | ||
| 90301-39005 |
JZS155..4FC INNER |
1 | ||
| 90301-99058 |
JZS155..4FC OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
JZS155..RHD..SED AXLE CODE=A02A,CENTER |
1 | ||
| 90301-39005 |
JZS155..4FC INNER |
1 | ||
| 90301-99058 |
JZS155..4FC OUTER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
JZS155..4FC |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35603-30011 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
JZS155..4FC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-35011 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35605-22040 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-35010 |
JZS155..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65005 |
JZS155..RHD AXLE CODE=A02A,INNER |
1 | ||
| 90301-99058 |
JZS155..RHD..SED AXLE CODE=A01A,OUTER |
1 | ||
| 90301-99016 |
JZS155..RHD AXLE CODE=A02A,OUTER |
1 | ||
| 90301-65006 |
JZS155..RHD..SED AXLE CODE=A01A,INNER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65005 |
JZS155..RHD AXLE CODE=A02A,INNER |
1 | ||
| 90301-99058 |
JZS155..RHD..SED AXLE CODE=A01A,OUTER |
1 | ||
| 90301-99016 |
JZS155..RHD AXLE CODE=A02A,OUTER |
1 | ||
| 90301-65006 |
JZS155..RHD..SED AXLE CODE=A01A,INNER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
JZS155..4FC |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
JZS155..4FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS155..4FC..SED |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS155..4FC..SED |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS155..4FC..SED |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS155..4FC..SED |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35647-22030 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35647-22030 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35647-22030 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35647-22030 |
JZS155..4FC..SED T=2.3 |
3 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-50040 |
JZS155..4FC T=3.40,MARK 45 |
1 | ||
| 35635-50010 |
JZS155..4FC T=4.00,MARK 42 |
1 | ||
| 35635-50050 |
JZS155..4FC T=3.20,MARK 60 |
1 | ||
| 35635-50030 |
JZS155..4FC T=3.60,MARK 62 |
1 | ||
| 35635-30030 |
JZS155..RHD..SED T=4.40,MARK 64,AXLE CODE=A02A |
1 | ||
| 35635-50060 |
JZS155..4FC T=3.00,MARK 61 |
1 | ||
| 35635-50020 |
JZS155..4FC T=3.80,MARK 44 |
1 | ||
| 35635-30020 |
JZS155..RHD..SED T=4.20,MARK 63,AXLE CODE=A02A |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-22010 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35672-30010 |
JZS155..4FC..SED AXLE CODE=A02A |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
JZS155..4FC |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30071 |
JZS155..RHD..SED T=3.4,AXLE CODE=A02A |
1 | ||
| 35675-30081 |
JZS155..RHD..SED T=3.3,AXLE CODE=A02A |
1 | ||
| 35675-30111 |
JZS155..RHD..SED T=3.0,AXLE CODE=A02A |
1 | ||
| 35675-30051 |
JZS155..RHD..SED T=3.6,AXLE CODE=A02A |
1 | ||
| 35675-30101 |
JZS155..RHD..SED T=3.1,AXLE CODE=A02A |
1 | ||
| 35675-30061 |
JZS155..RHD..SED T=3.5,AXLE CODE=A02A |
1 | ||
| 35675-22050 |
JZS155..RHD..SED T=3.5,MARK 35,AXLE CODE=A01A |
1 | ||
| 35675-30120 |
JZS155..RHD..SED T=3.7,AXLE CODE=A02A |
1 | ||
| 35675-30091 |
JZS155..RHD..SED T=3.2,AXLE CODE=A02A |
1 | ||
| 35675-22060 |
JZS155..RHD..SED T=3.6,MARK 36,AXLE CODE=A01A |
1 | ||
| 35675-22080 |
JZS155..RHD..SED T=3.8,MARK 38,AXLE CODE=A01A |
1 | ||
| 35675-30220 |
JZS155..4FC T=3.6,MARK 56 |
1 | ||
| 35675-22040 |
JZS155..RHD..SED T=3.4,MARK 34,AXLE CODE=A01A |
1 | ||
| 35675-22100 |
JZS155..RHD..SED T=4.0,MARK 40,AXLE CODE=A01A |
1 | ||
| 35675-22030 |
JZS155..RHD..SED T=3.3,MARK 33,AXLE CODE=A01A |
1 | ||
| 35675-22090 |
JZS155..RHD..SED T=3.9,MARK 39,AXLE CODE=A01A |
1 | ||
| 35675-30230 |
JZS155..4FC T=3.7,MARK 57 |
1 | ||
| 35675-22070 |
JZS155..RHD..SED T=3.7,MARK 37,AXLE CODE=A01A |
1 | ||
| 35675-30210 |
JZS155..4FC T=3.5,MARK 55 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99032 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 90520-99018 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
JZS155..4FC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30090 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35701-22050 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35701-22080 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
JZS155..4FC |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
JZS155..4FC |
1 | ||
| 35701R - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-25005 |
JZS155..4FC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS155..4FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS155..4FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS155..4FC |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-50020 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35810-14010 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
JZS155..4FC |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS155..4FC |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS155..4FC |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
JZS155..4FC |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS155..4FC |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS155..4FC |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
JZS155..4FC |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
JZS155..4FC |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
JZS155..4FC |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS155..4FC OUTER |
1 | ||
| 90501-27009 |
JZS155..4FC INNER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS155..4FC OUTER |
1 | ||
| 90501-27009 |
JZS155..4FC INNER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
JZS155..4FC |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32020 |
JZS155..4FC L=72.4 |
1 | ||
| 35822-32010 |
JZS155..4FC L=70.9 |
1 | ||
| 35822-50010 |
JZS155..RHD L=72.15 |
1 | ||
| 35822-50020 |
JZS155..RHD L=70.65 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
JZS155..4FC |
1 | ||
(9512- )JZS155..RHD
A340E,AXLE CODE=A01A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35065 - DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR | ||||
| 35065-30040 |
JZS155..RHD |
1 | ||
| 35065-30100 |
JZS155..RHD |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30080 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35602-22020 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35602-30062 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
JZS155..RHD..SED AXLE CODE=A02A,CENTER |
1 | ||
| 90301-39005 |
JZS155..4FC INNER |
1 | ||
| 90301-99058 |
JZS155..4FC OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
JZS155..RHD..SED AXLE CODE=A02A,CENTER |
1 | ||
| 90301-39005 |
JZS155..4FC INNER |
1 | ||
| 90301-99058 |
JZS155..4FC OUTER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
JZS155..4FC |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35603-30011 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
JZS155..4FC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-35011 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35605-22040 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-35010 |
JZS155..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65005 |
JZS155..RHD AXLE CODE=A02A,INNER |
1 | ||
| 90301-99058 |
JZS155..RHD..SED AXLE CODE=A01A,OUTER |
1 | ||
| 90301-99016 |
JZS155..RHD AXLE CODE=A02A,OUTER |
1 | ||
| 90301-65006 |
JZS155..RHD..SED AXLE CODE=A01A,INNER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65005 |
JZS155..RHD AXLE CODE=A02A,INNER |
1 | ||
| 90301-99058 |
JZS155..RHD..SED AXLE CODE=A01A,OUTER |
1 | ||
| 90301-99016 |
JZS155..RHD AXLE CODE=A02A,OUTER |
1 | ||
| 90301-65006 |
JZS155..RHD..SED AXLE CODE=A01A,INNER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
JZS155..4FC |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
JZS155..4FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30190 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30150 |
JZS155..RHD AXLE CODE=A01A |
5 | ||
| 35677-30170 |
JZS155..RHD..SED AXLE CODE=A02A |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30110 |
JZS155..4FC T=2.3 |
5 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-50040 |
JZS155..4FC T=3.40,MARK 45 |
1 | ||
| 35635-50010 |
JZS155..4FC T=4.00,MARK 42 |
1 | ||
| 35635-50050 |
JZS155..4FC T=3.20,MARK 60 |
1 | ||
| 35635-50030 |
JZS155..4FC T=3.60,MARK 62 |
1 | ||
| 35635-30030 |
JZS155..RHD..SED T=4.40,MARK 64,AXLE CODE=A02A |
1 | ||
| 35635-50060 |
JZS155..4FC T=3.00,MARK 61 |
1 | ||
| 35635-50020 |
JZS155..4FC T=3.80,MARK 44 |
1 | ||
| 35635-30020 |
JZS155..RHD..SED T=4.20,MARK 63,AXLE CODE=A02A |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
JZS155..4FC |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30071 |
JZS155..RHD..SED T=3.4,AXLE CODE=A02A |
1 | ||
| 35675-30081 |
JZS155..RHD..SED T=3.3,AXLE CODE=A02A |
1 | ||
| 35675-30111 |
JZS155..RHD..SED T=3.0,AXLE CODE=A02A |
1 | ||
| 35675-30051 |
JZS155..RHD..SED T=3.6,AXLE CODE=A02A |
1 | ||
| 35675-30101 |
JZS155..RHD..SED T=3.1,AXLE CODE=A02A |
1 | ||
| 35675-30061 |
JZS155..RHD..SED T=3.5,AXLE CODE=A02A |
1 | ||
| 35675-22050 |
JZS155..RHD..SED T=3.5,MARK 35,AXLE CODE=A01A |
1 | ||
| 35675-30120 |
JZS155..RHD..SED T=3.7,AXLE CODE=A02A |
1 | ||
| 35675-30091 |
JZS155..RHD..SED T=3.2,AXLE CODE=A02A |
1 | ||
| 35675-22060 |
JZS155..RHD..SED T=3.6,MARK 36,AXLE CODE=A01A |
1 | ||
| 35675-22080 |
JZS155..RHD..SED T=3.8,MARK 38,AXLE CODE=A01A |
1 | ||
| 35675-30220 |
JZS155..4FC T=3.6,MARK 56 |
1 | ||
| 35675-22040 |
JZS155..RHD..SED T=3.4,MARK 34,AXLE CODE=A01A |
1 | ||
| 35675-22100 |
JZS155..RHD..SED T=4.0,MARK 40,AXLE CODE=A01A |
1 | ||
| 35675-22030 |
JZS155..RHD..SED T=3.3,MARK 33,AXLE CODE=A01A |
1 | ||
| 35675-22090 |
JZS155..RHD..SED T=3.9,MARK 39,AXLE CODE=A01A |
1 | ||
| 35675-30230 |
JZS155..4FC T=3.7,MARK 57 |
1 | ||
| 35675-22070 |
JZS155..RHD..SED T=3.7,MARK 37,AXLE CODE=A01A |
1 | ||
| 35675-30210 |
JZS155..4FC T=3.5,MARK 55 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99032 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 90520-99018 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
JZS155..4FC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30090 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35701-22050 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35701-22080 |
JZS155..RHD AXLE CODE=A01A |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
JZS155..4FC |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
JZS155..4FC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS155..4FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS155..4FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JZS155..4FC |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-50020 |
JZS155..RHD..SED AXLE CODE=A02A |
1 | ||
| 35810-14010 |
JZS155..RHD..SED AXLE CODE=A01A |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
JZS155..4FC |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS155..4FC |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS155..4FC |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
JZS155..4FC |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS155..4FC |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JZS155..4FC |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
JZS155..4FC |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
JZS155..4FC |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
JZS155..4FC |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS155..4FC OUTER |
1 | ||
| 90501-27009 |
JZS155..4FC INNER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
JZS155..4FC OUTER |
1 | ||
| 90501-27009 |
JZS155..4FC INNER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
JZS155..4FC |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32010 |
JZS155..4FC L=70.9 |
1 | ||
| 35822-32020 |
JZS155..4FC L=72.4 |
1 | ||
| 35822-50010 |
JZS155..RHD L=72.15 |
1 | ||
| 35822-50020 |
JZS155..RHD L=70.65 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
JZS155..4FC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
