JZS155R-AEPQF (1995)

Toyota Crown

Production Dec 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )JZS155..RHD

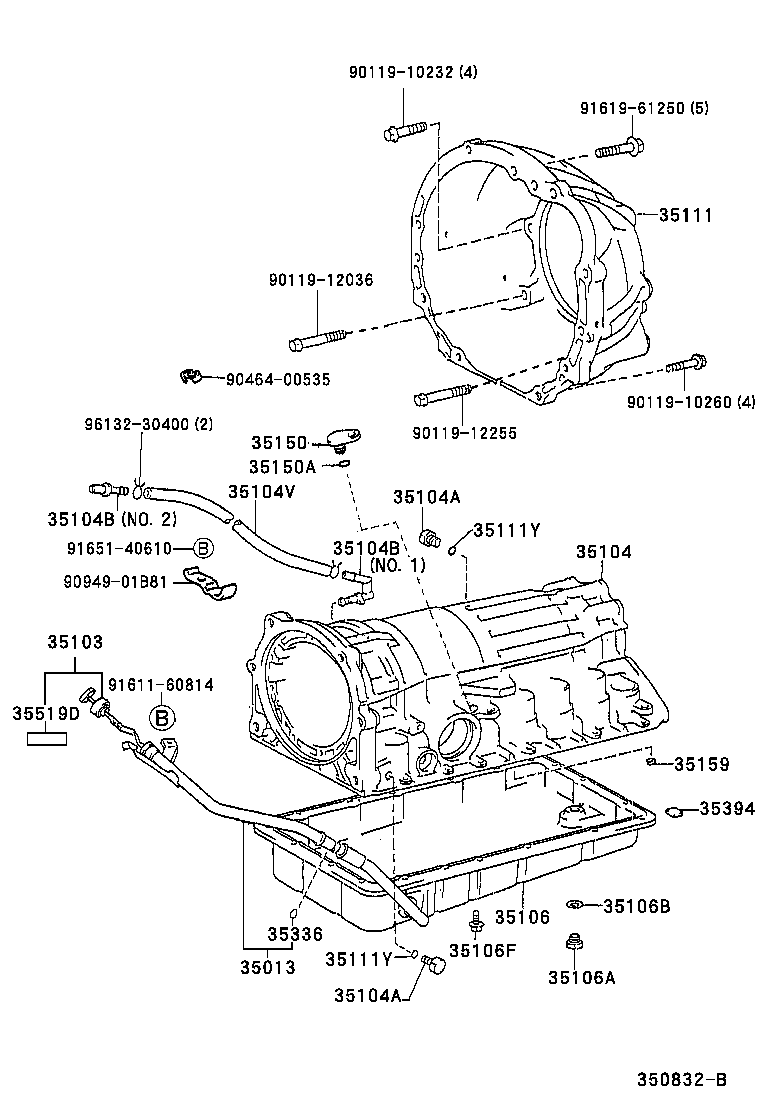

Click highlighted areas on diagram

A340E,AXLE CODE=A01A

diagram 35013 35103 35104 35104A 35104A 35104B 35104B 35104V 35106 35106A 35106B 35106F 35111 35111Y 35111Y 35150 35150A 35159 35336 35394 35519D 9011910232 9011910260 9011912036 9011912255 9046400535 9094901B81 9161160814 9161961250 9165140610 9613230400
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-22340

JZS155..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30431

JZS155..RHD

AXLE CODE=A01A

 1
35103-30430

JZS155..RHD

AXLE CODE=A01A

 1
35103-30610

JZS155..RHD

AXLE CODE=A01A

 1
35103-30450

JZS155..RHD..SED

AXLE CODE=A02A;LEADED GASOLINE SPEC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30133

JZS155..RHD..SED

AXLE CODE=A02A

 1
35104-30170

JZS155..RHD..SED

AXLE CODE=A01A

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GS151,JZS155..4FC

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GS151,JZS155..4FC

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099

JZS155..RHD

AXLE CODE=A01A,NO.2

 1
90930-03098

JZS155..RHD

AXLE CODE=A01A,NO.1

 1
90930-03108

JZS155..RHD..SED

AXLE CODE=A02A

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099

JZS155..RHD

AXLE CODE=A01A,NO.2

 1
90930-03098

JZS155..RHD

AXLE CODE=A01A,NO.1

 1
90930-03108

JZS155..RHD..SED

AXLE CODE=A02A

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-10020

JZS155..RHD

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-24020

JZS155..RHD..SED

AXLE CODE=A02A

 1
35106-30130

JZS155..RHD..SED

AXLE CODE=A01A

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

JZS155..RHD..SED

AXLE CODE=A02A

 1
90341-10018

JZS155..RHD

AXLE CODE=A01A

 1
90341-10017

JZS155..RHD

AXLE CODE=A01A

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-50010

JZS155..RHD..SED

AXLE CODE=A01A

 1
35178-30010

JZS155..RHD..SED

AXLE CODE=A02A

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

JZS155..4FC

 19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-22081

JZS155..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS151,JZS155..4FC

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS151,JZS155..4FC

 2
35150 - PLUG ASSY, TRANSMISSION CASE
35150-30010

JZS155..RHD

 1
35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
90301-09012

JZS155..RHD

 1
35159 - GASKET, BRAKE DRUM
35159-30010

JZS155..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

GS151,JZS155..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

JZS155..4FC

 3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-30010

JZS155..RHD

 1
35519-20020

JZS155..RHD

 1
Common parts
90119-10232
90119-10260
90119-12036
90119-12255
90464-00535
90949-01B81
91611-60814
91619-61250
91651-40610
96132-30400

(9512- )LHD ; (9608- )JZS155..RHD

Click highlighted areas on diagram

A340E,AXLE CODE=A02A(RHD)

diagram 35013 35103 35104 35104A 35104A 35104B 35104B 35104V 35106 35106A 35106B 35106F 35111 35111Y 35111Y 35150 35150A 35159 35336 35394 35519D 9011910232 9011910260 9011912036 9011912036 9011912255 9046400535 9161160814 9161961250 9613230400
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-22340

JZS155..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30431

JZS155..RHD

AXLE CODE=A01A

 1
35103-30430

JZS155..RHD

AXLE CODE=A01A

 1
35103-30610

JZS155..RHD

AXLE CODE=A01A

 1
35103-30450

JZS155..RHD..SED

AXLE CODE=A02A;LEADED GASOLINE SPEC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30133

JZS155..RHD..SED

AXLE CODE=A02A

 1
35104-30170

JZS155..RHD..SED

AXLE CODE=A01A

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GS151,JZS155..4FC

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

GS151,JZS155..4FC

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099

JZS155..RHD

AXLE CODE=A01A,NO.2

 1
90930-03098

JZS155..RHD

AXLE CODE=A01A,NO.1

 1
90930-03108

JZS155..RHD..SED

AXLE CODE=A02A

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099

JZS155..RHD

AXLE CODE=A01A,NO.2

 1
90930-03098

JZS155..RHD

AXLE CODE=A01A,NO.1

 1
90930-03108

JZS155..RHD..SED

AXLE CODE=A02A

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-10020

JZS155..RHD

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-24020

JZS155..RHD..SED

AXLE CODE=A02A

 1
35106-30130

JZS155..RHD..SED

AXLE CODE=A01A

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

JZS155..RHD..SED

AXLE CODE=A02A

 1
90341-10018

JZS155..RHD

AXLE CODE=A01A

 1
90341-10017

JZS155..RHD

AXLE CODE=A01A

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-50010

JZS155..RHD..SED

AXLE CODE=A01A

 1
35178-30010

JZS155..RHD..SED

AXLE CODE=A02A

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

JZS155..4FC

 19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-22081

JZS155..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS151,JZS155..4FC

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GS151,JZS155..4FC

 2
35150 - PLUG ASSY, TRANSMISSION CASE
35150-30010

JZS155..RHD

 1
35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
90301-09012

JZS155..RHD

 1
35159 - GASKET, BRAKE DRUM
35159-30010

JZS155..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

GS151,JZS155..4FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

JZS155..4FC

 3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-30010

JZS155..RHD

 1
35519-20020

JZS155..RHD

 1
Common parts
90119-10232
90119-10260
90119-12036
90119-12255
90464-00535
91611-60814
91619-61250
96132-30400
