JZS155L-AEPQF (1995)

Toyota Crown

Production Dec 1995 - Aug 2001
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )LHD

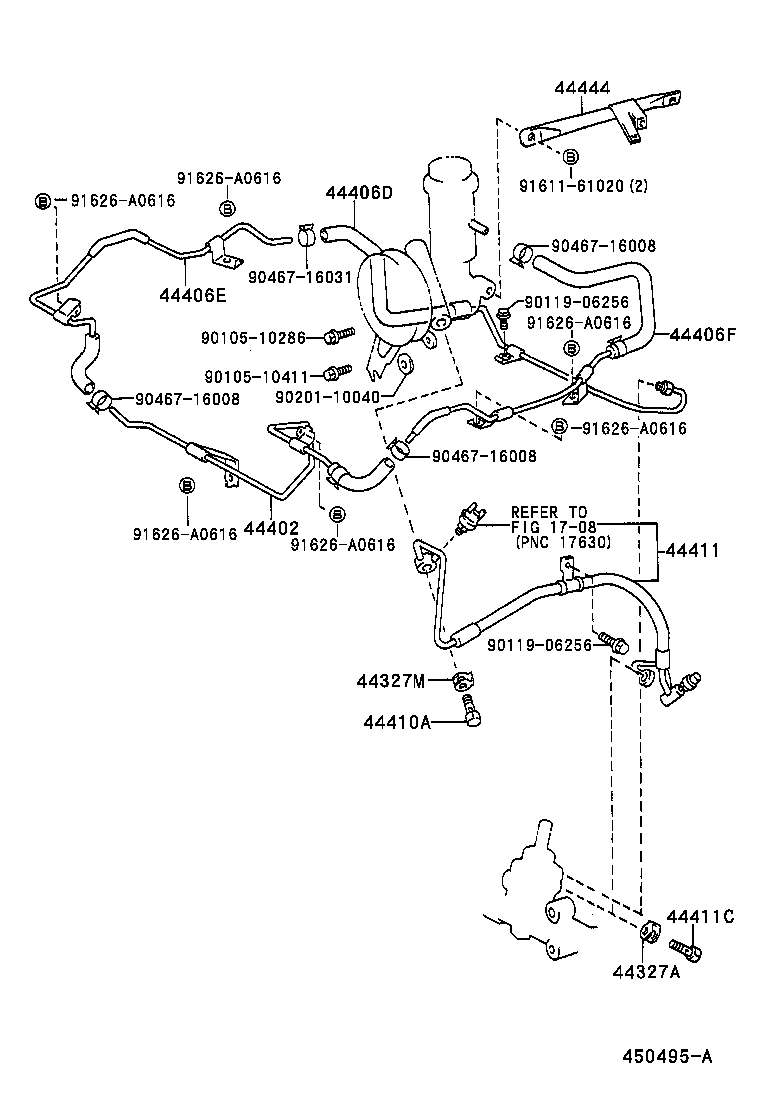

Click highlighted areas on diagram

diagram 1708 44327A 44327M 44402 44406D 44406E 44406F 44410A 44411 44411C 44444 9010510286 9010510411 9011906256 9011906256 9020110040 9046716008 9046716008 9046716008 9046716031 9161161020 91626A0616 91626A0616 91626A0616 91626A0616 91626A0616 91626A0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GS151,JZS155

 1
44327M - GASKET, PRESSURE PORT, NO.2
44327-30040

JZS155

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30220

JZS155

 1
44406D - TUBE SUB-ASSY, RETURN, NO.1
44406-30160

JZS155..LHD

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44406-30210

JZS155

 1
44406F - TUBE SUB-ASSY, RETURN, NO.3
44406-30220

JZS155

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

JZS155

 1
90401-16034

JZS155

 1
44411 - HOSE, PRESSURE FEED
44411-30511

JZS155..LHD..4FC

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GS151,JZS155

 1
44444 - STAY, PUMP, REAR
44444-30121

JZS155

 1
Common parts
90105-10286
90105-10411
90119-06256
90201-10040
90467-16008
90467-16031
91611-61020
91626-A0616
Linked diagrams
1708
