JZS155L-AEPQF (1995)
Toyota Crown
Production
Dec 1995
-
Aug 2001
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512-9909)2JZGE..LHD..4FC..GEN ; (9512- )2JZGE..GCC

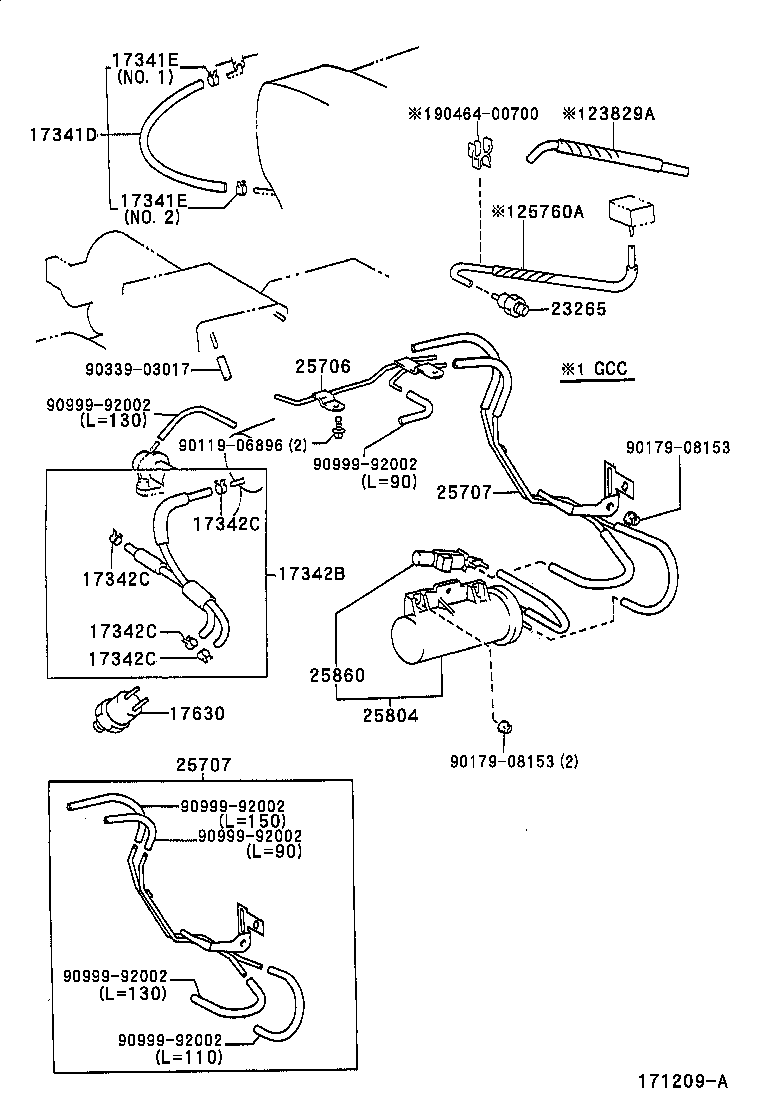

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-46170 |
2JZGE..JZS155 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-51300 |
2JZGE..JZS155 NO.2 |
1 | ||
| 96132-51100 |
2JZGE..JZS155 NO.1 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-51300 |
2JZGE..JZS155 NO.2 |
1 | ||
| 96132-51100 |
2JZGE..JZS155 NO.1 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-46120 |
2JZGE..JZS155 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2JZGE..JZS155 |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2JZGE..JZS155 |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2JZGE..JZS155 |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2JZGE..JZS155 |
4 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
2JZGE..JZS155 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11031 |
2JZGE..JZS155 |
1 | ||
| 90917-11031 |
2JZGE..JZS155 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-46060 |
2JZGE..JZS155 |
1 | ||
| 25706-46060 |
2JZGE..JZS155..LHD |
1 | ||
| 25706-46090 |
2JZGE..JZS155 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-46020 |
2JZGE..JZS155 |
1 | ||
| 25707-46021 |
2JZGE..JZS155 |
1 | ||
| 25707-46090 |
2JZGE..JZS155 |
1 | ||
| 25707-46090 |
2JZGE..JZS155 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-46020 |
2JZGE..JZS155 |
1 | ||
| 25707-46021 |
2JZGE..JZS155 |
1 | ||
| 25707-46090 |
2JZGE..JZS155 |
1 | ||
| 25707-46090 |
2JZGE..JZS155 |
1 | ||
| 25760A - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-46040 |
2JZGE..JZS155 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-46020 |
2JZGE..JZS155 |
1 | ||
| 25804-46060 |
2JZGE..JZS155 |
1 | ||
| 25804-46060 |
2JZGE..JZS155 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 90910-12124 |
2JZGE..JZS155 TAIHEIYO |
1 | ||
| 25860-46010 |
2JZGE..JZS155 AISIN |
1 | ||
| 90910-12124 |
2JZGE..JZS155 TAIHEIYO |
1 | ||
| 25860-46010 |
2JZGE..JZS155 AISIN |
1 | ||
| 90910-12124 |
2JZGE..JZS155 |
1 | ||
| Common parts | ||||
| 90119-06896 | ||||
| 90179-08153 | ||||
| 90339-03017 | ||||
| 90464-00700 | ||||
| 90999-92002 | ||||
