JZS155L-AEPQF (1995)

Toyota Crown

Production Dec 1995 - Aug 2001
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-9909)2JZGE..LHD..4FC..GEN ; (9512- )2JZGE

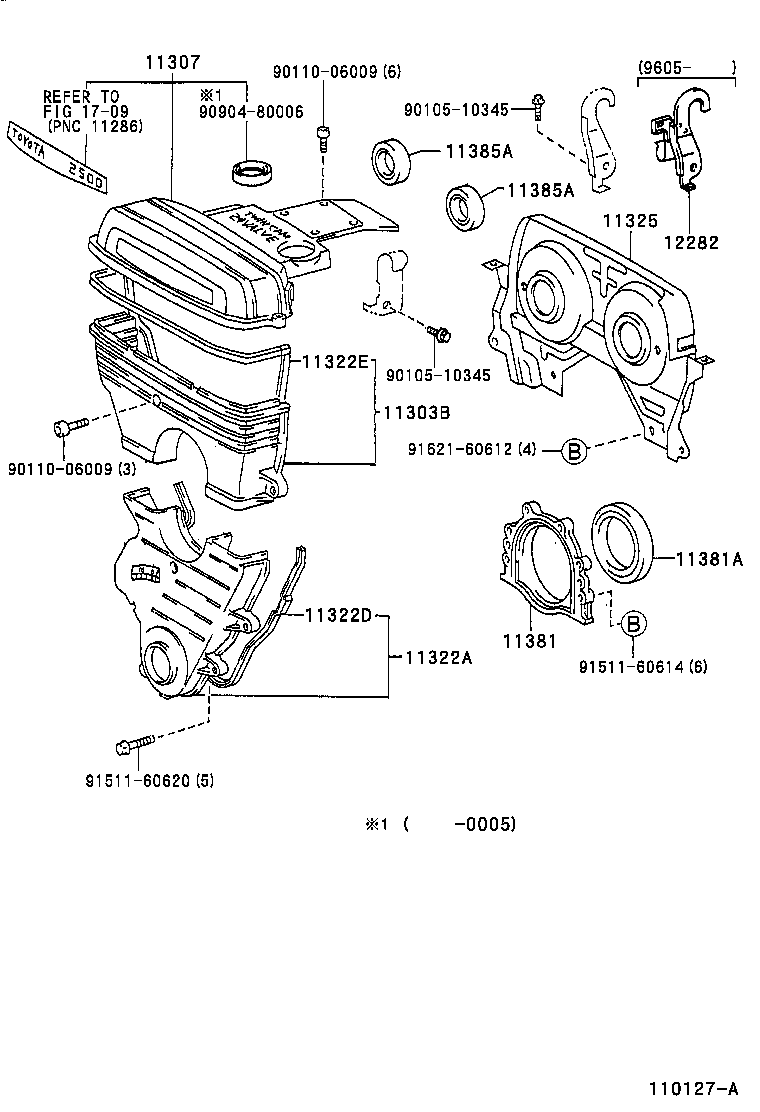

Click highlighted areas on diagram

LEADED GASOLINE SPEC

diagram 11303B 11307 11322A 11322D 11322E 11325 11381 11381A 11385A 11385A 12282 1709 9010510345 9010510345 9011006009 9011006009 9090480006 9151160614 9151160620 9162160612
Part # Description Qty Price
11303B - COVER SUB-ASSY, TIMING BELT, NO.2
11303-46011

2JZGE..JZS155..LHD

 1
11303-46040

2JZGE..JZS155

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-46091

2JZGE..JZS155..LHD

 1
11304-46060

2JZGE..JZS155

 1
11322A - COVER, TIMING BELT, NO.1
11302-46031

2JZGE..JZS155

 1
11302-46031

2JZGE..JZS155

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-46041

2JZGE..JZS155

 1
11328-46041

2JZGE..JZS155

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-46011

2JZGE..JZS155..LHD

 1
11329-46040

2JZGE..JZS155

 1
11325 - COVER, TIMING BELT, NO.4
11325-46042

2JZGE..JZS155

 1
11325-46042

2JZGE..JZS155

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-46010

2JZGE..JZS155

 1
11381-46010

2JZGE..JZS155

 1
11381A - SEAL, ENGINE REAR OIL
90311-90006

2JZGE..JZS155

 1
90311-90006

2JZGE..JZS155

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40020

2JZGE..JZS155

 2
90311-40020

2JZGE..JZS155

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40020

2JZGE..JZS155

 2
90311-40020

2JZGE..JZS155

 2
12282 - HANGER, ENGINE, NO.2
12282-46012

2JZGE..JZS155..LHD

 1
Common parts
90105-10345
90110-06009
90904-80006
91511-60614
91511-60620
91621-60612
Linked diagrams
1709
