JZS155L-AEPGFV (1995)

Toyota Crown

Production Dec 1995 - Sep 1999
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )2JZGE..SED

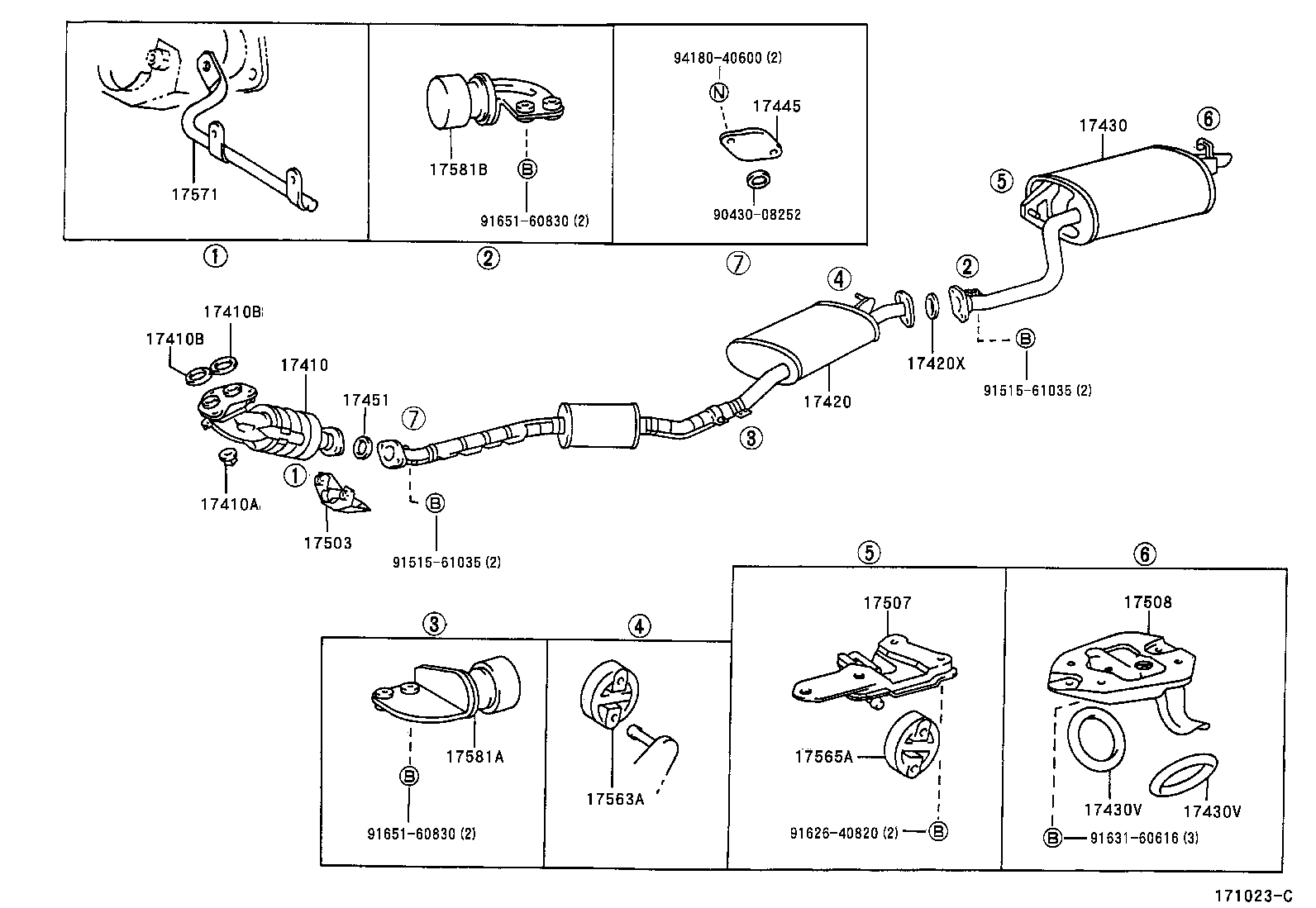

Click highlighted areas on diagram

W/O(CONVERTER)

diagram 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17430V 17430V 17445 17451 17503 17507 17508 17563A 17565A 17571 9043008252 9151561035 9151561035 9162640820 9163160616 9418040600 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46310

2JZGE..JZS155..LHD

W/O(CONVERTER)

 1
17410-46430

2JZGE..JZS155..SED

W/O(CONVERTER)

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2JZGE..JZS155..SED

W/O(CONVERTER)

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2JZGE..JZS155..SED

W/O(CONVERTER)

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

2JZGE..JZS155..SED

W/O(CONVERTER)

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

2JZGE..JZS155..SED

W/O(CONVERTER)

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-46070

2JZGE..JZS155

 1
17420-46350

2JZGE..JZS155

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

2JZGE..JZS155

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-46240

2JZGE..JZS155..GCC

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36002

1GFE,2JZGE..GS151,JZS155

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36002

1GFE,2JZGE..GS151,JZS155

 2
17445 - COLLAR, EXHAUST PIPE
17445-50010

2JZGE..JZS155

 1
17445-50010

2JZGE..JZS155..LHD

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2JZGE..JZS155

 1
17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17503-46070

2JZGE..JZS155

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-46030

1GFE,2JZGE..GS151,JZS155

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-46020

1GFE,2JZGE..GS151,JZS155

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-11160

2JZGE..JZS155

 1
17565-74280

2JZGE..JZS155

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2JZGE..JZS155

 1
17565-74280

2JZGE..JZS155

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17506-46080

2JZGE..JZS155

 1
Common parts
90430-08252
91515-61035
91626-40820
91631-60616
94180-40600
94180-41000

(9512- )2JZGE..RHD ; (9909- )

Click highlighted areas on diagram

W(CONVERTER)

diagram 17410 17410A 17410B 17410B 17420 17420X 17430 17430V 17430V 17445 17451 17503 17507 17508 17563A 17565A 17571 17581A 17581B 9043008252 9151561035 9151561035 9162640820 9163160616 9165160830 9165160830 9418040600
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46310

2JZGE..JZS155..LHD

W/O(CONVERTER)

 1
17410-46430

2JZGE..JZS155..SED

W/O(CONVERTER)

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2JZGE..JZS155..SED

W/O(CONVERTER)

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

2JZGE..JZS155..SED

W/O(CONVERTER)

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

2JZGE..JZS155..SED

W/O(CONVERTER)

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-46070

2JZGE..JZS155

 1
17420-46350

2JZGE..JZS155

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078

2JZGE..JZS155

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-46240

2JZGE..JZS155..GCC

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36002

1GFE,2JZGE..GS151,JZS155

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36002

1GFE,2JZGE..GS151,JZS155

 2
17445 - COLLAR, EXHAUST PIPE
17445-50010

2JZGE..JZS155

 1
17445-50010

2JZGE..JZS155..LHD

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2JZGE..JZS155

 1
17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17503-46070

2JZGE..JZS155

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-46030

1GFE,2JZGE..GS151,JZS155

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-46020

1GFE,2JZGE..GS151,JZS155

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-11160

2JZGE..JZS155

 1
17565-74280

2JZGE..JZS155

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2JZGE..JZS155

 1
17565-74280

2JZGE..JZS155

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17506-46080

2JZGE..JZS155

 1
Common parts
90430-08252
91515-61035
91626-40820
91631-60616
91651-60830
94180-40600
