JZS155L-AEMQF (1995)

Toyota Crown

Production Dec 1995 - Jul 1997
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )5F

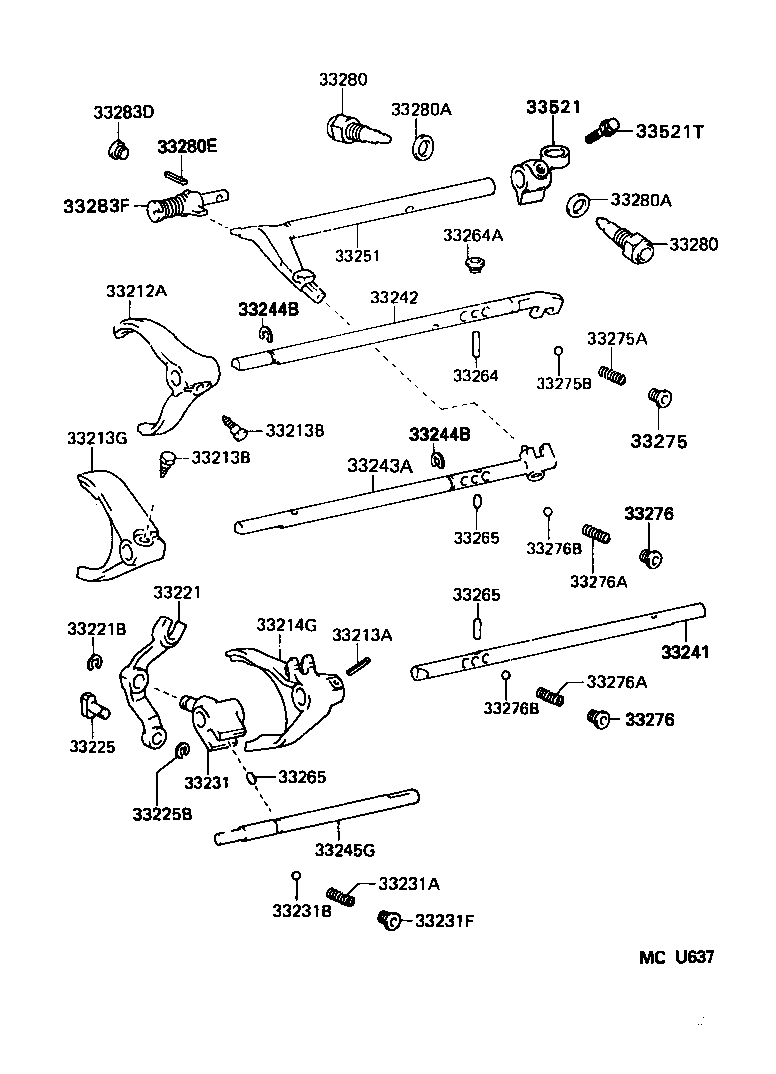

Click highlighted areas on diagram

W58

diagram 33212A 33213A 33213B 33213B 33213G 33214G 33221 33221B 33225 33225B 33231 33231A 33231B 33231F 33241 33242 33243A 33244B 33244B 33245G 33251 33264 33264A 33265 33265 33265 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33280 33280 33280A 33280A 33280E 33283D 33283F 33521 33521T
Part # Description Qty Price
33212A - FORK, GEAR SHIFT, NO.1
33212-30050

JZS155..5F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

JZS155..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

JZS155..5F

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

JZS155..5F

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-30060

JZS155..5F

 1
33214G - FORK, GEAR SHIFT, NO.3
33230-30011

JZS155..5F

 1
33221 - ARM, REVERSE SHIFT
33221-22020

JZS155..5F

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-00800

JZS155..5F

 1
33225 - SHOE, SHIFT ARM
33225-22020

JZS155..5F

 1
33225B - RING, E(FOR SHIFT ARM SHOE)
96160-00600

JZS155..5F

 1
33231 - HEAD, REVERSE SHIFT
33231-22040

JZS155..5F

 1
33231A - SPRING, REVERSE SHIFT RESTRICT
90501-10052

JZS155..5F

 1
33231B - BALL, REVERSE SHIFT RESTRICT
90360-08009

JZS155..5F

 1
33231F - PLUG(FOR REVERSE SHIFT HEAD)
90341-10016

JZS155..5F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-30050

JZS155..5F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-30070

JZS155..5F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-30130

JZS155..5F

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

JZS155..5F

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

JZS155..5F

 2
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-22011

JZS155..5F

 1
33251 - LEVER, SHIFT & SELECT
33251-22070

JZS155..5F

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

JZS155..5F

 1
33264A - PLUG, INTER LOCK HOLE
90341-10065

JZS155..5F

L=7.5,OD=15

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-06007

JZS155..5F

L=8.6,OD=6

 1
33265-22010

JZS155..5F

L=11.2,OD=4

 1
33266-22010

JZS155..5F

L=13.6,OD=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-06007

JZS155..5F

L=8.6,OD=6

 1
33265-22010

JZS155..5F

L=11.2,OD=4

 1
33266-22010

JZS155..5F

L=13.6,OD=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-06007

JZS155..5F

L=8.6,OD=6

 1
33265-22010

JZS155..5F

L=11.2,OD=4

 1
33266-22010

JZS155..5F

L=13.6,OD=6

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

JZS155..5F

OD=17

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14123

JZS155..5F

L=20.2

 1
33275B - BALL, SHAFT DETENT
90360-10003

JZS155..5F

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

JZS155..5F

 2
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

JZS155..5F

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14123

JZS155..5F

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14123

JZS155..5F

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

JZS155..5F

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

JZS155..5F

 2
33280 - PIN ASSY, REVERSE RESTRICT
33280-30051

JZS155..5F

LH

 1
33280-30041

JZS155..5F

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-30051

JZS155..5F

LH

 1
33280-30041

JZS155..5F

RH

 1
33280A - GASKET, REVERSE RESTRICT PIN
90430-18008

JZS155..5F

 2
33280A - GASKET, REVERSE RESTRICT PIN
90430-18008

JZS155..5F

 2
33280E - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05016

JZS155..5F

 1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065

JZS155..5F

 1
33283F - PIN, REVERSE RESTRICT
33280-30061

JZS155..5F

 1
33521 - HOUSING, SHIFT LEVER
33521-22210

JZS155..5F

 1
33521T - BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

JZS155..5F

 1
