JZS155L-AEMQF (1995)

Toyota Crown

Production Dec 1995 - Jul 1997
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9512- )5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31353 31453A 31453B 55107A 9038605017 9038613015 9046816142 9092903001 9164580818 9411051000 9412041000 9451201000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30240

JZS155..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03010

JZS155..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

JZS155..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

JZS155..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

JZS155..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

JZS155..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

JZS155..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

JZS155..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

JZS155..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010

JZS155..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

JZS155..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

JZS155..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-30190

JZS155..5F

 1
Common parts
90386-05017
90386-13015
90468-16142
90929-03001
91645-80818
94110-51000
94120-41000
94512-01000
96160-00600

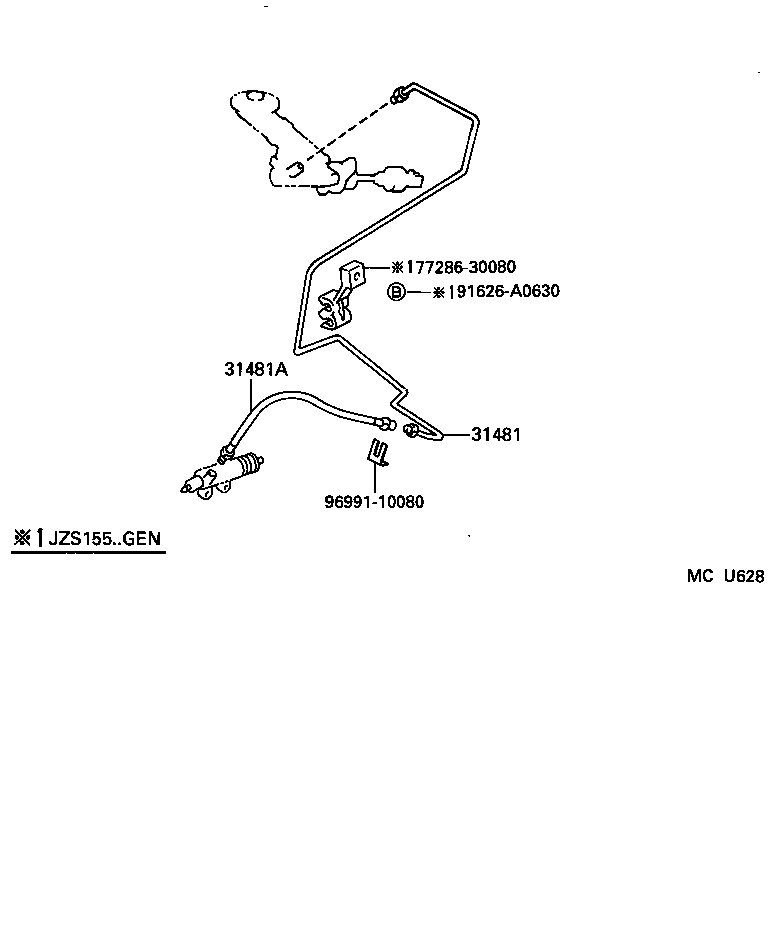

ILLUST NO. 2 OF 2(9512- )5F

Click highlighted areas on diagram

diagram 31481 31481A 7728630080 91626A0630 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30250

JZS155..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02870

JZS155..5F

 1
Common parts
77286-30080
91626-A0630
96991-10080
