JZS155L-AEMQF (1995)
Toyota Crown
Production
Dec 1995
-
Jul 1997
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9512-9909)2JZGE..LHD..4FC..GEN ; (9512- )2JZGE

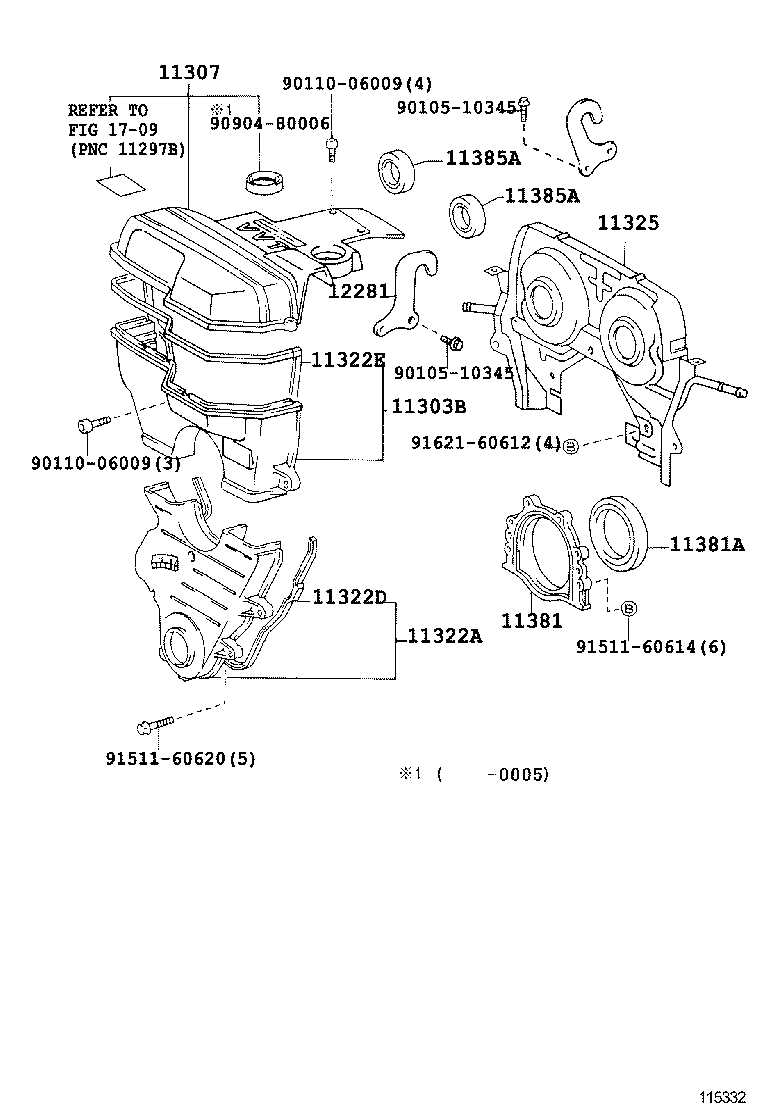

Click highlighted areas on diagram
LEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11303B - COVER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 11303-46011 |
2JZGE..JZS155..LHD |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-46091 |
2JZGE..JZS155..LHD |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-46031 |
2JZGE..JZS155 |
1 | ||
| 11322D - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-46041 |
2JZGE..JZS155 |
1 | ||
| 11322E - GASKET, TIMING BELT COVER, NO.2 | ||||
| 11329-46011 |
2JZGE..JZS155..LHD |
1 | ||
| 11325 - COVER, TIMING BELT, NO.4 | ||||
| 11325-46042 |
2JZGE..JZS155 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-46010 |
2JZGE..JZS155 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-90006 |
2JZGE..JZS155 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-40020 |
2JZGE..JZS155 |
2 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-40020 |
2JZGE..JZS155 |
2 | ||
| Common parts | ||||
| 90105-10345 | ||||
| 90110-06009 | ||||
| 90904-80006 | ||||
| 91511-60614 | ||||
| 91511-60620 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(9512- )2JZGE..RHD ; (9909-9910)
Click highlighted areas on diagram
W(VVT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11303B - COVER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 11303-46011 |
2JZGE..JZS155..LHD |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-46091 |
2JZGE..JZS155..LHD |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-46031 |
2JZGE..JZS155 |
1 | ||
| 11322D - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-46041 |
2JZGE..JZS155 |
1 | ||
| 11322E - GASKET, TIMING BELT COVER, NO.2 | ||||
| 11329-46011 |
2JZGE..JZS155..LHD |
1 | ||
| 11325 - COVER, TIMING BELT, NO.4 | ||||
| 11325-46042 |
2JZGE..JZS155 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-46010 |
2JZGE..JZS155 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-90006 |
2JZGE..JZS155 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-40020 |
2JZGE..JZS155 |
2 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-40020 |
2JZGE..JZS155 |
2 | ||
| Common parts | ||||
| 90105-10345 | ||||
| 90110-06009 | ||||
| 90904-80006 | ||||
| 91511-60614 | ||||
| 91511-60620 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1709 | ||||
