JZS133R-AEPQF (1991)
Toyota Crown
Production
Oct 1991
-
Apr 2001
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )

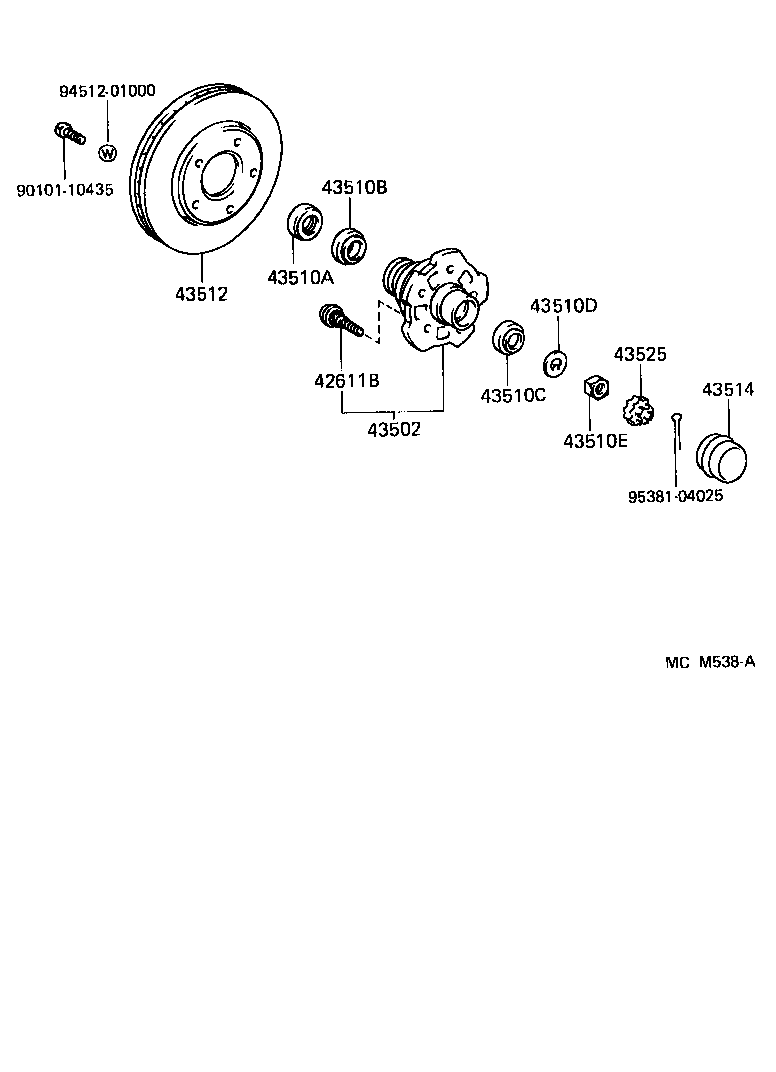

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02048 |
GS131,JZS133,LS130,YS132 |
10 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43503-30040 |
JZS133..RHD..4FC..Q W(*66) |
2 | ||
| 43502-30110 |
JZS133 |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-48001 |
JZS133..D TAXI SPEC |
2 | ||
| 90311-48001 |
JZS133..4FC;GS131,LS130,YS132;JZS133..5F..(D,G,Q) |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-34083 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-21082 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20005 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-30260 |
JZS133 |
2 | ||
| 43512-30220 |
JZS133 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-22020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 43514-30040 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
GS131,JZS133,LS130,YS132 |
2 | ||
| Common parts | ||||
| 90101-10435 | None epc.PartDetail.None | |||
| 94512-01000 | None epc.PartDetail.None | |||
| 95381-04025 | None epc.PartDetail.None | |||
(9512- )
| Part # | Description | Qty | Price |
|---|
(9909- )
| Part # | Description | Qty | Price |
|---|
