JZS133R-AEPQF (1991)
Toyota Crown

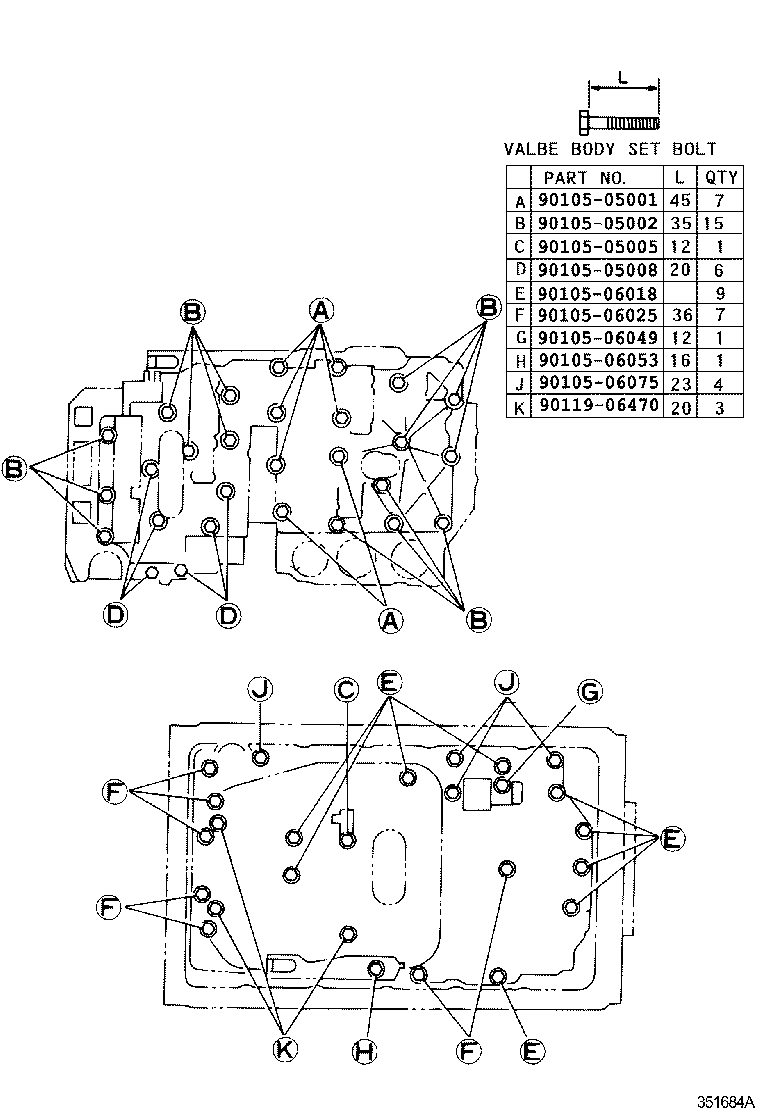

ILLUST NO. 4 OF 4(9110-9308)EECC ; (9210-9512)JZS133..RHD..4FC..GEN..Q
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05005 | ||||
| 90105-05008 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90119-06470 | ||||

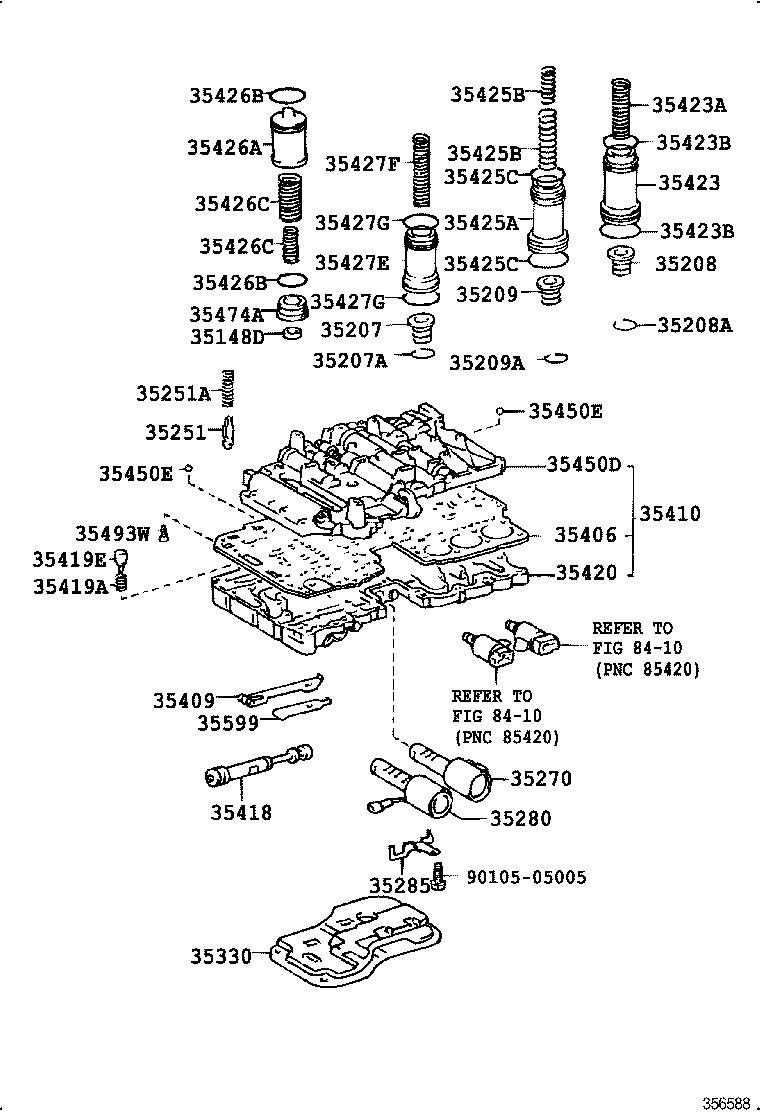

ILLUST NO. 1 OF 4(9110- )JZS133..4FC..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZS133..4FC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS133..4FC |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZS133..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS133..4FC |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35209-30010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS133..4FC |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZS133..4FC |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZS133..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35330-30011 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30070 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35339B - GASKET, OIL STRAINER, NO.2 | ||||
| 90430-10010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-30010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35409-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30660 |
JZS133..RHD..Q HONG KONG SPEC |
1 | ||
| 35410-30600 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410-30601 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410-30590 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35410D - VALVE, CHECK | ||||
| 90917-10073 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30070 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35418-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-12030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-11039 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-09093 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||

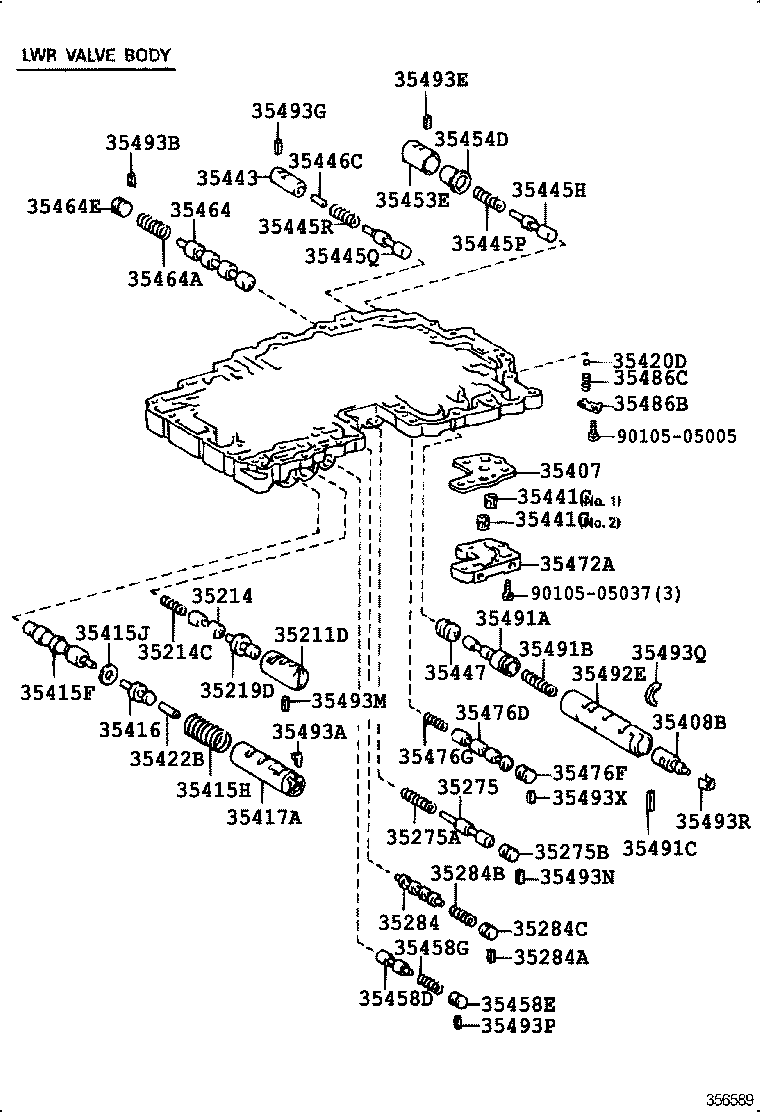

| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-14143 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35420-30144 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410-50011 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JZS133..4FC |
1 | ||
| 35423-30030 |
JZS133..RHD..Q |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25026 |
JZS133..4FC |
1 | ||
| 90501-25028 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-25026 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-23194 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-23194 |
JZS133..4FC UPR |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-23194 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-23194 |
JZS133..4FC UPR |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
JZS133..4FC |
1 | ||
| 35425-30020 |
JZS133..RHD..Q |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-28013 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-21012 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-25027 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 90501-21008 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-28013 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-21012 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-25027 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 90501-21008 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-25003 |
JZS133..4FC UPR |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-25003 |
JZS133..4FC UPR |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35426-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 90301-24001 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20112 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20112 |
JZS133..RHD..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-23073 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-22008 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20112 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20112 |
JZS133..RHD..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-23073 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-22008 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZS133..RHD..Q |
1 | ||
| 35427-30040 |
JZS133..4FC |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-21006 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-22019 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-22007 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZS133..4FC LWR |
1 | ||
| 90301-26002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-20002 |
JZS133..4FC UPR |
1 | ||
| 90301-20002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZS133..4FC LWR |
1 | ||
| 90301-26002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-20002 |
JZS133..4FC UPR |
1 | ||
| 90301-20002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-30291 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35432-30290 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30064 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30076 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
JZS133..4FC..(GCC,GEN) UPR VALVE BODY |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.2 |
1 | ||
| 35441-30020 |
JZS133..4FC..(GCC,GEN) LWR VALVE BODY |
2 | ||
| 35441-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.1 |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
JZS133..4FC..(GCC,GEN) UPR VALVE BODY |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.2 |
1 | ||
| 35441-30020 |
JZS133..4FC..(GCC,GEN) LWR VALVE BODY |
2 | ||
| 35441-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.1 |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
JZS133..4FC..(GCC,GEN) UPR VALVE BODY |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.2 |
1 | ||
| 35441-30020 |
JZS133..4FC..(GCC,GEN) LWR VALVE BODY |
2 | ||
| 35441-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.1 |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
JZS133..4FC..(GCC,GEN) |
1 | ||

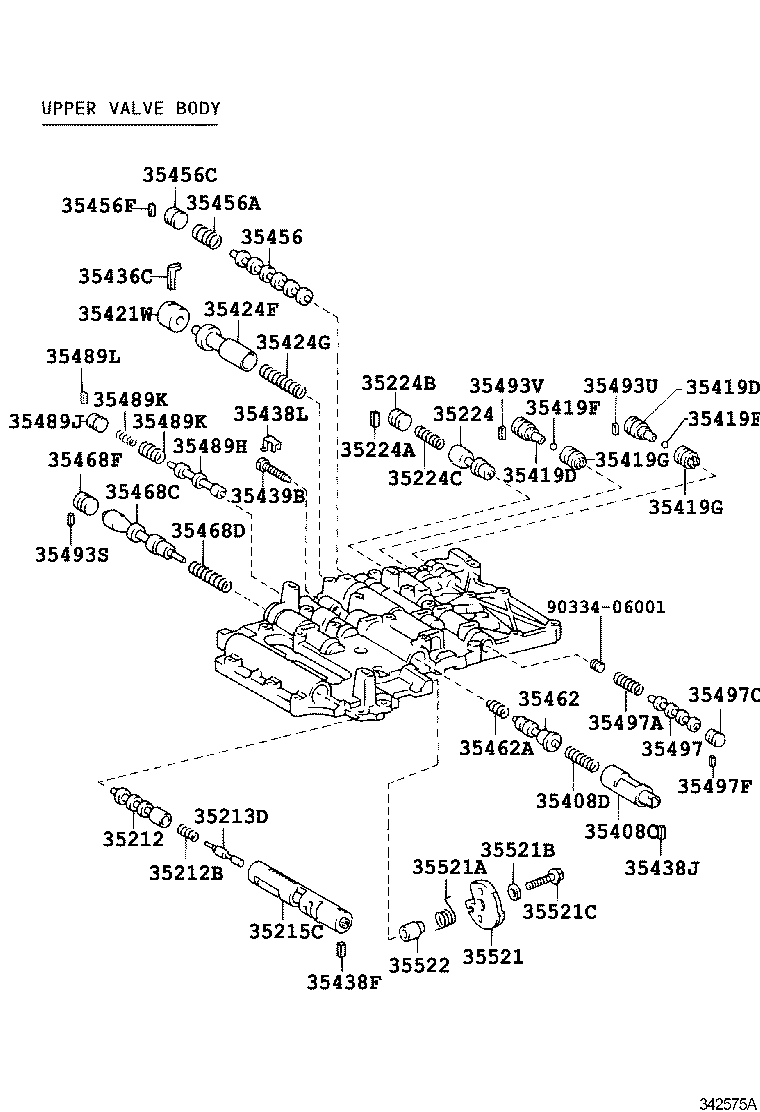

| 35450D - BODY ASSY, UPPER VALVE | ||||
| 35450-30080 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS133..RHD..4FC..GEN..Q OD=6.35,RUBBER,HONG KONG SPEC |
2 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
11 | ||
| 35495-22020 |
JZS133..RHD..Q OD=5.535,RUBBER,HONG KONG SPEC |
13 | ||
| 35496-22030 |
JZS133..4FC..(GCC,GEN) OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
JZS133..RHD..4FC..GEN..Q OD=5.535,RUBBER,HONG KONG SPEC |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS133..RHD..4FC..GEN..Q OD=6.35,RUBBER,HONG KONG SPEC |
2 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
11 | ||
| 35495-22020 |
JZS133..RHD..Q OD=5.535,RUBBER,HONG KONG SPEC |
13 | ||
| 35496-22030 |
JZS133..4FC..(GCC,GEN) OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
JZS133..RHD..4FC..GEN..Q OD=5.535,RUBBER,HONG KONG SPEC |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS133..RHD..4FC..GEN..Q OD=6.35,RUBBER,HONG KONG SPEC |
2 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
11 | ||
| 35495-22020 |
JZS133..RHD..Q OD=5.535,RUBBER,HONG KONG SPEC |
13 | ||
| 35496-22030 |
JZS133..4FC..(GCC,GEN) OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
JZS133..RHD..4FC..GEN..Q OD=5.535,RUBBER,HONG KONG SPEC |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS133..RHD..4FC..GEN..Q OD=6.35,RUBBER,HONG KONG SPEC |
2 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
11 | ||
| 35495-22020 |
JZS133..RHD..Q OD=5.535,RUBBER,HONG KONG SPEC |
13 | ||
| 35496-22030 |
JZS133..4FC..(GCC,GEN) OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
JZS133..RHD..4FC..GEN..Q OD=5.535,RUBBER,HONG KONG SPEC |
9 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35599-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
JZS133..4FC..(GCC,GEN) |
2 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
JZS133..4FC..(GCC,GEN) |
2 | ||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 4(9110-9308)EECC ; (9210-9512)JZS133..RHD..4FC..GEN..Q
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35212-12010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35212-30050 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-06037 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35213-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35215-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
JZS133..RHD..4FC..Q |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
JZS133..RHD..4FC..Q |
1 | ||
| 35408C - PLUG SUB-ASSY, THROTTLE VALVE | ||||
| 35408-50020 |
JZS133..RHD..4FC..Q |
1 | ||
| 35408D - SPRING, COMPRESSION (FOR THROTTLE VALVE PLUG) | ||||
| 90501-10119 |
JZS133..RHD..4FC..Q |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS133..RHD..4FC..Q |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS133..RHD..4FC..Q |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS133..RHD..4FC..Q |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS133..RHD..4FC..Q |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS133..RHD..4FC..Q |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS133..RHD..4FC..Q |
2 | ||
| 35421W - PLUG, C-1 ACCUMULATOR VALVE | ||||
| 35421-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35424G - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE) | ||||
| 90501-15016 |
JZS133..RHD..4FC..Q |
1 | ||
| 35436C - RETAINER, C-1 ACCUMULATOR VALVE | ||||
| 35436-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
JZS133..4FC |
1 | ||
| 35438J - SEAT, THROTTLE VALVE SPRING | ||||
| 35493-50050 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35438L - RETAINER, THROTTLE VALVE | ||||
| 35438-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35439B - SCREW, THROTTLE VALVE | ||||
| 35439-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
JZS133..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
JZS133..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
JZS133..4FC |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03016 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-22020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35462-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90504-06002 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-07051 |
JZS133..4FC..(GCC,GEN) L=20.58 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35468-12020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12122 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-15007 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05014 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90339-05020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35489-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90339-05014 |
JZS133..RHD..4FC..Q |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08123 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-08121 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-08157 |
JZS133..RHD..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-08156 |
JZS133..RHD..Q HONG KONG SPEC,OUTER |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08123 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-08121 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-08157 |
JZS133..RHD..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-08156 |
JZS133..RHD..Q HONG KONG SPEC,OUTER |
1 | ||
| 35489L - KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90282-03016 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 35493-50050 |
JZS133..RHD..4FC..Q |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
JZS133..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
JZS133..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
JZS133..4FC |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
JZS133..RHD..4FC..Q |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35521-30080 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11007 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90508-10059 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90508-11007 |
JZS133..4FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
JZS133..4FC |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
JZS133..4FC |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GS131,JZS133..4FC |
1 | ||
| Common parts | ||||
| 90334-06001 | ||||
ILLUST NO. 2 OF 4(9110- )JZS133..4FC..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35212-12010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35212-30050 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-06037 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35213-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35215-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-30010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
JZS133..4FC |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35445-30011 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10165 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,YELLOW |
1 | ||
| 90501-10166 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,LIGHT GREEN |
1 | ||
| 90501-10167 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,ORANGE |
1 | ||
| 90501-10140 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-30011 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-07077 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-08101 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-07100 |
JZS133..RHD..Q HONG KONG SPEC |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04002 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
JZS133..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
JZS133..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
JZS133..4FC |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03016 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-22020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35458-30030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04002 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90339-04030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-06026 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03003 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-30040 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10119 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35461B - PIN, STRAIGHT (FOR DOWN SHIFT PLUG) | ||||
| 90250-03045 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35462-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90504-06002 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-07051 |
JZS133..4FC..(GCC,GEN) L=20.58 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35468-12020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12122 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-15007 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-22020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05014 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90339-05020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493C - SEAT, RELEASE CONTROL VALVE PLUG | ||||
| 35493-30080 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-30090 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
JZS133..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
JZS133..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
JZS133..4FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35521-30080 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11007 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90508-10059 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90508-11007 |
JZS133..4FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
JZS133..4FC |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
JZS133..4FC |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GS131,JZS133..4FC |
1 | ||
| Common parts | ||||
| 90334-06001 | ||||
ILLUST NO. 1 OF 4(9110-9308)EECC ; (9210-9512)JZS133..RHD..4FC..GEN..Q
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) | ||||
| 35148-16010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZS133..4FC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS133..4FC |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZS133..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS133..4FC |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35209-30010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS133..4FC |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZS133..4FC |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZS133..4FC |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35330-30011 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35406 - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-30050 |
JZS133..RHD..4FC..Q |
1 | ||
| 35406-30090 |
JZS133..RHD..Q |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35409-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30660 |
JZS133..RHD..Q HONG KONG SPEC |
1 | ||
| 35410-30600 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410-30601 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410-30590 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30070 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35418-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-11039 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-09093 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-14143 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35420-30144 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35410-50011 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JZS133..4FC |
1 | ||
| 35423-30030 |
JZS133..RHD..Q |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25026 |
JZS133..4FC |
1 | ||
| 90501-25028 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-25026 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-23194 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-23194 |
JZS133..4FC UPR |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-23194 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-23194 |
JZS133..4FC UPR |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
JZS133..4FC |
1 | ||
| 35425-30020 |
JZS133..RHD..Q |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-28013 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-21012 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-25027 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 90501-21008 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-28013 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-21012 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-25027 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 90501-21008 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-25003 |
JZS133..4FC UPR |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 90301-31002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-31002 |
JZS133..4FC LWR |
1 | ||
| 90301-25003 |
JZS133..4FC UPR |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35426-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 90301-24001 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 90301-24001 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20112 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20112 |
JZS133..RHD..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-23073 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-22008 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20112 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..Q HONG KONG SPEC,OUTER |
1 | ||
| 90501-20112 |
JZS133..RHD..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-23073 |
JZS133..4FC..(GCC,GEN) OUTER |
1 | ||
| 90501-20113 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,INNER |
1 | ||
| 90501-22008 |
JZS133..4FC..(GCC,GEN) INNER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZS133..RHD..Q |
1 | ||
| 35427-30040 |
JZS133..4FC |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-21006 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-22019 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-22007 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZS133..4FC LWR |
1 | ||
| 90301-26002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-20002 |
JZS133..4FC UPR |
1 | ||
| 90301-20002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZS133..4FC LWR |
1 | ||
| 90301-26002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,LOWER |
1 | ||
| 90301-20002 |
JZS133..4FC UPR |
1 | ||
| 90301-20002 |
JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC,UPPER |
1 | ||
| 35450D - BODY ASSY, UPPER VALVE | ||||
| 35450-30080 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS133..RHD..4FC..GEN..Q OD=6.35,RUBBER,HONG KONG SPEC |
2 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
11 | ||
| 35495-22020 |
JZS133..RHD..Q OD=5.535,RUBBER,HONG KONG SPEC |
13 | ||
| 35496-22030 |
JZS133..4FC..(GCC,GEN) OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
JZS133..RHD..4FC..GEN..Q OD=5.535,RUBBER,HONG KONG SPEC |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZS133..RHD..4FC..GEN..Q OD=6.35,RUBBER,HONG KONG SPEC |
2 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
JZS133..4FC..(GCC,GEN) OD=5.535,RUBBER |
11 | ||
| 35495-22020 |
JZS133..RHD..Q OD=5.535,RUBBER,HONG KONG SPEC |
13 | ||
| 35496-22030 |
JZS133..4FC..(GCC,GEN) OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
JZS133..RHD..4FC..GEN..Q OD=5.535,RUBBER,HONG KONG SPEC |
9 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-50010 |
JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONG KONG OR THAILAND SPEC |
1 | ||
| 35493W - SEAT, VALVE BODY | ||||
| 35493-50040 |
JZS133..RHD..4FC..Q |
2 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35599-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 3 OF 4(9110-9308)EECC ; (9210-9512)JZS133..RHD..4FC..GEN..Q
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07078 |
JZS133..RHD..4FC..Q |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12123 |
JZS133..RHD..4FC..Q |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
JZS133..RHD..4FC..Q |
1 | ||
| 35284 - VALVE, SOLENOID RELAY | ||||
| 35284-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS133..RHD..4FC..Q |
1 | ||
| 35284B - SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE) | ||||
| 90501-06055 |
JZS133..RHD..4FC..Q |
1 | ||
| 35284C - PLUG (FOR SOLENOID RELAY VALVE) | ||||
| 90339-04030 |
JZS133..RHD..4FC..Q |
1 | ||
| 35407 - PLATE SUB-ASSY, VALVE BODY COVER | ||||
| 35407-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35408B - PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE | ||||
| 35408-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35415-30030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-16077 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90201-08021 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35416-30040 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-30060 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35417-50011 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
JZS133..RHD..4FC..GEN..Q OD=8.00,STEEL,HONG KONG SPEC |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
JZS133..RHD..4FC..Q |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
JZS133..4FC..(GCC,GEN) UPR VALVE BODY |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.2 |
1 | ||
| 35441-30020 |
JZS133..4FC..(GCC,GEN) LWR VALVE BODY |
2 | ||
| 35441-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.1 |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
JZS133..4FC..(GCC,GEN) UPR VALVE BODY |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.2 |
1 | ||
| 35441-30020 |
JZS133..4FC..(GCC,GEN) LWR VALVE BODY |
2 | ||
| 35441-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,NO.1 |
1 | ||
| 35441-50030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
2 | ||
| 35443 - SLEEVE, LOW COAST SHIFT CONTROL VALVE | ||||
| 35443-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35445-30011 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10165 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,YELLOW |
1 | ||
| 90501-10166 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,LIGHT GREEN |
1 | ||
| 90501-10167 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC,ORANGE |
1 | ||
| 90501-10140 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-30011 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35445-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-07077 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-08101 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-07100 |
JZS133..RHD..Q HONG KONG SPEC |
1 | ||
| 35446C - PLUNGER, LOW COAST MODULATOR VALVE | ||||
| 35446-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35447 - PLUNGER, ACCUMULATOR CONTROL VALVE | ||||
| 35447-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35453E - SLEEVE, 2ND COAST MODULATOR VALVE | ||||
| 35453-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35454D - PLUNGER, 2ND COAST MODULATOR VALVE | ||||
| 35454-50021 |
JZS133..RHD..4FC..Q |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35458-30030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04002 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90339-04030 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-06026 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
JZS133..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
JZS133..4FC |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
JZS133..4FC |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35476D - VALVE, CUT OFF | ||||
| 35476-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-05021 |
JZS133..RHD..4FC..Q |
1 | ||
| 35476G - SPRING, COMPRESSION (FOR CUT OFF VALVE) | ||||
| 90501-06062 |
JZS133..RHD..4FC..Q |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
JZS133..RHD..4FC..Q |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-10143 |
JZS133..RHD..4FC..Q |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35491-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08077 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-11049 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-08096 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03015 |
JZS133..RHD..4FC..Q |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35492-30030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-30090 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-30090 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-22020 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-30080 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493N - SEAT, SOLENOID MODULATOR VALVE PLUG | ||||
| 35493-30080 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30040 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-50020 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493R - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.2 | ||||
| 35493-50030 |
JZS133..RHD..4FC..Q |
1 | ||
| 35493X - SEAT, CUT OFF VALAE | ||||
| 35493-50050 |
JZS133..RHD..4FC..Q |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05037 | ||||
ILLUST NO. 3 OF 4(9110- )JZS133..4FC..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35415-30030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-16077 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90201-08021 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35416-30040 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-30060 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35417-50011 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35428C - PLUG, PRESSURE REDUCING | ||||
| 35428-30010 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35428D - CLIP (FOR PRESSURE REDUCING PLUG) | ||||
| 90468-05068 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35438D - SEAT, ACCUMULATOR CONTROL VALVE SPRING | ||||
| 35438-22020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35444D - VALVE, RELEASE CONTROL | ||||
| 35444-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35444H - PIN,STRAIGHT(FOR INTERMEDIATE MODULATOR PLUG) | ||||
| 90250-03045 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
JZS133..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
JZS133..4FC |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
JZS133..4FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35491-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08077 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 90501-11049 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 90501-08096 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35492-30030 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-30020 |
JZS133..4FC..(GCC,GEN) |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-22020 |
JZS133..RHD..4FC..GEN..Q HONG KONG SPEC |
1 | ||
| 35493-30090 |
JZS133..4FC..(GCC,GEN) |
1 | ||
ILLUST NO. 4 OF 4(9110- )JZS133..4FC..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05008 | ||||
| 90105-05031 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90105-06076 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
