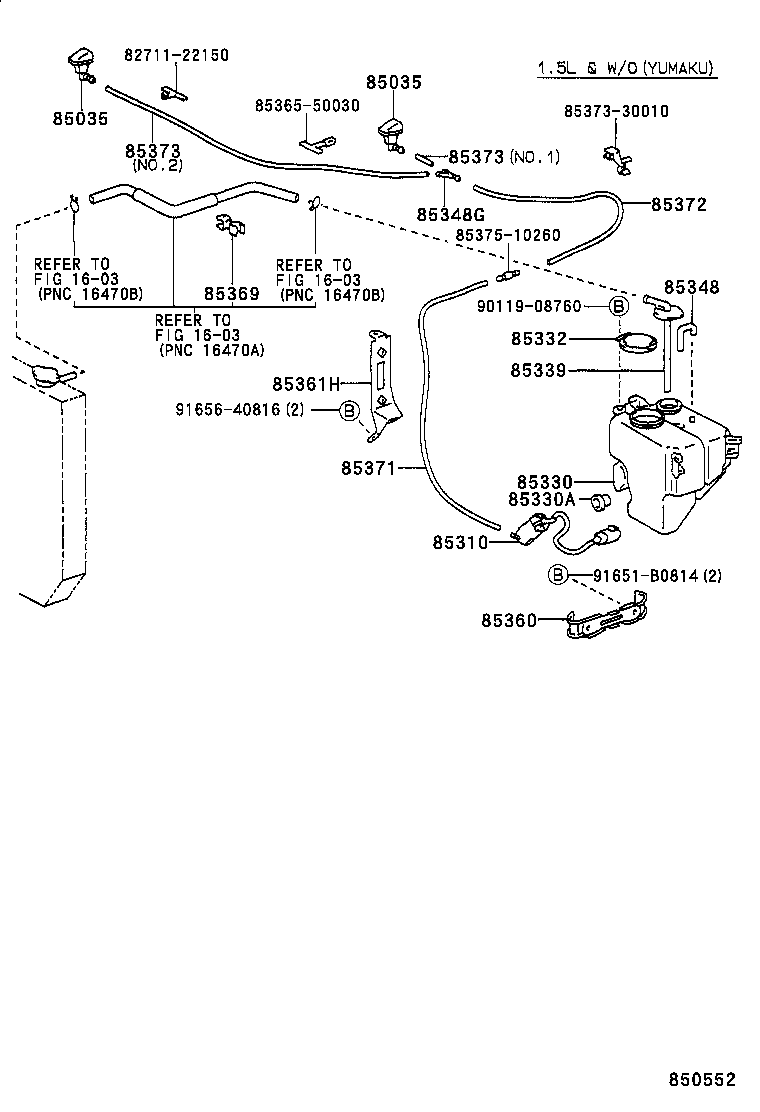

Toyota Crown JZS133 WINDSHIELD WASHER

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-30020C1	GS131,JZS133..RHD BLACK,183 ,202 ,6K2 ,8J5	10/1991 - 08/1993	2
85381-30020A1	GS131,JZS133,LS130..RHD SUPER WHITE 4,050	10/1991 - 08/1993	2
85381-30020A2	GS131,JZS133,LS130..RHD SUPER WHITE 2,040	08/1993 - 12/1995	2
85381-30020B0	GS131,JZS133,LS130..RHD SUPER SILVER 3 M,176	10/1991 - 08/1993	2
85381-30020B2	GS131,JZS133,LS130..RHD SILVER ME,199	08/1993 - 12/1995	2
85381-30020E0	GS131,JZS133..RHD..GEN MEDIUM BEIGE M,4H6	10/1991 - 08/1993	2
85381-30020E1	GS131,JZS133..RHD BEIGE MM,4K9	08/1993 - 12/1995	2
85381-30020C1	JZS133..D BLACK,183 ,202 ,8J5	08/1993 - 12/1995	2
85381-30020C1	GS131,JZS133..G,Q BLACK,183 ,202 ,742 ,8J5	08/1993 - 04/2001	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30020C1	GS131,JZS133..RHD BLACK,183 ,202 ,6K2 ,8J5	10/1991 - 08/1993	2
85381-30020A1	GS131,JZS133,LS130..RHD SUPER WHITE 4,050	10/1991 - 08/1993	2
85381-30020A2	GS131,JZS133,LS130..RHD SUPER WHITE 2,040	08/1993 - 12/1995	2
85381-30020B0	GS131,JZS133,LS130..RHD SUPER SILVER 3 M,176	10/1991 - 08/1993	2
85381-30020B2	GS131,JZS133,LS130..RHD SILVER ME,199	08/1993 - 12/1995	2
85381-30020E0	GS131,JZS133..RHD..GEN MEDIUM BEIGE M,4H6	10/1991 - 08/1993	2
85381-30020E1	GS131,JZS133..RHD BEIGE MM,4K9	08/1993 - 12/1995	2
85381-30020C1	JZS133..D BLACK,183 ,202 ,8J5	08/1993 - 12/1995	2
85381-30020C1	GS131,JZS133..G,Q BLACK,183 ,202 ,742 ,8J5	08/1993 - 04/2001	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-30190	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-30280	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	GS131,JZS133,LS130,YS132..GCC,GEN	10/1991 - 04/2001	1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12650	GS131,JZS133,LS130,YS132	10/1991 - 07/1993	1
85316-34050	GS131,JZS133,LS130,YS132	07/1993 - 04/2001	1
85339 - CAP SUB-ASSY, RESERVE TANK
85339-30280	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-30280	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14390	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-30270	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85369 - CLAMP
85369-30270	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299	GS131,JZS133,LS130,YS132 *H,L=600	08/1993 - 04/2001	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	GS131,JZS133,LS130..RHD *H,L=580	10/1991 - 12/1995	1
90099-33080	JZS133 *H,L=580	03/2001 - 04/2001	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	JZS133 *H,L=40,NO.1,NO.2	03/2001 - 04/2001	1
90099-33080	GS131,JZS133,LS130,YS132 *H,L=540,NO.1,NO.2	10/1991 - 12/1995	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	JZS133 *H,L=40,NO.1,NO.2	03/2001 - 04/2001	1
90099-33080	GS131,JZS133,LS130,YS132 *H,L=540,NO.1,NO.2	10/1991 - 12/1995	1
Common parts
82711-22150
85365-50030
85373-30010
85375-10260
90119-08760
91651-B0814
91656-40816
Linked diagrams
1603

JZS133R-AEPQF (1991)

(9110- )RHD..GEN
