JZS133R-AEPQF (1991)
Toyota Crown

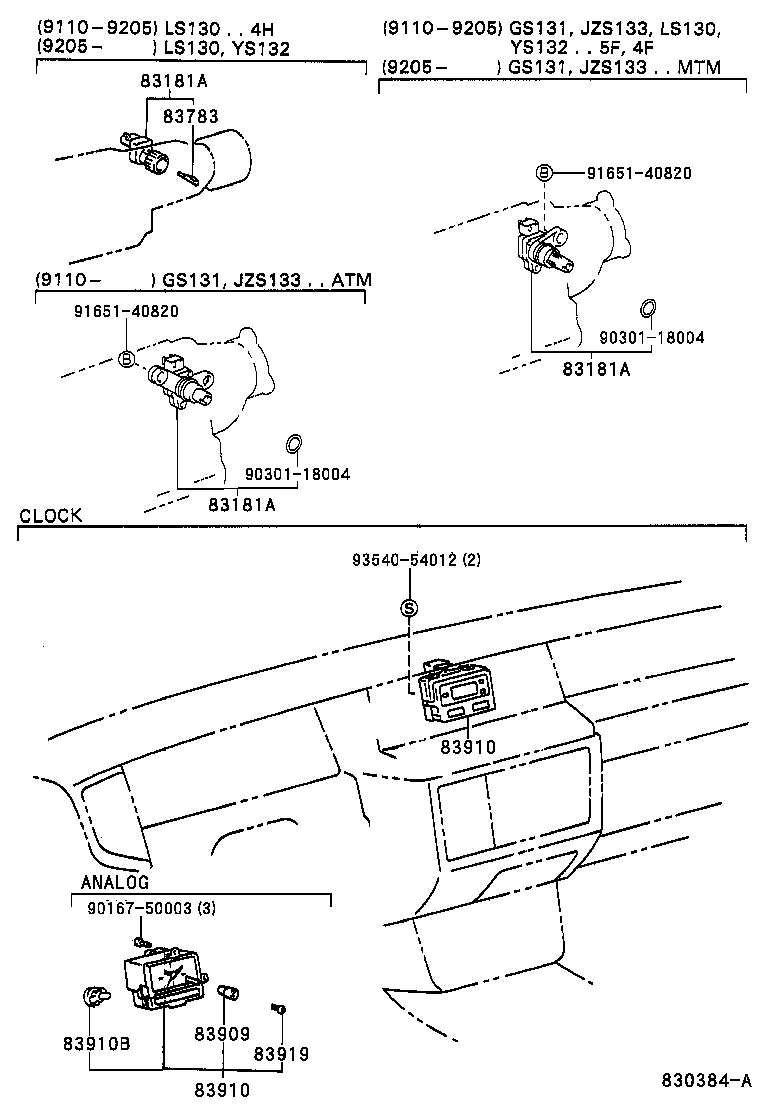

ILLUST NO. 2 OF 2(9110- )
SPEEDOMETER SENSOR & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24070 |
GS131,JZS133,LS130,YS132..4F,5F |
1 | ||
| 83181-24050 |
GS131,JZS133..4FC |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24070 |
GS131,JZS133,LS130,YS132..4F,5F |
1 | ||
| 83181-24050 |
GS131,JZS133..4FC |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24070 |
GS131,JZS133,LS130,YS132..4F,5F |
1 | ||
| 83181-24050 |
GS131,JZS133..4FC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30472 |
GS131..G;JZS133..LHD;JZS133..RHD..G;GS131,LS130,YS132..LHD..(B,Q) |
1 | ||
| 83910-30462 |
GS131,JZS133..RHD..Q |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30472 |
GS131..G;JZS133..LHD;JZS133..RHD..G;GS131,LS130,YS132..LHD..(B,Q) |
1 | ||
| 83910-30462 |
GS131,JZS133..RHD..Q |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90301-18004 | ||||
| 91651-40820 | ||||
| 93540-54012 | ||||

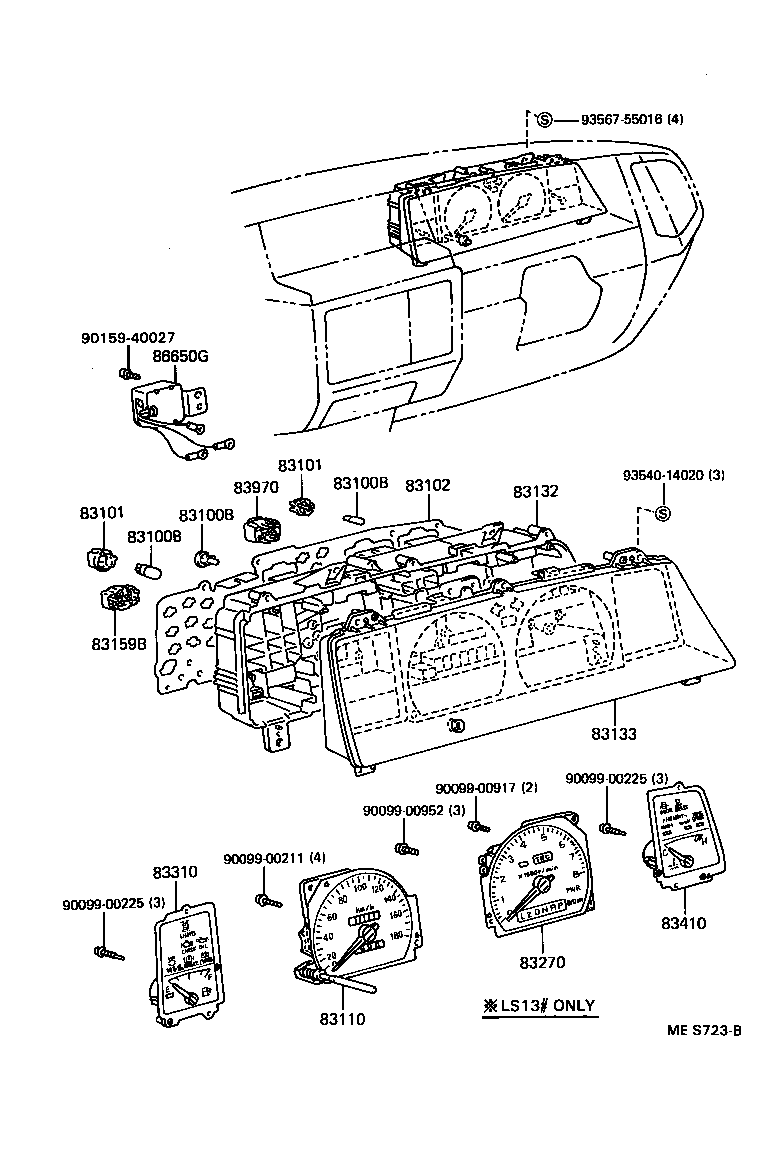

ILLUST NO. 1 OF 2(9110- )RHD
COMBINATION METER, W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZS133..D BULB 3.4W |
2 | ||
| 83101-14040 |
JZS133..D BULB 1.4W |
10 | ||
| 83101-14040 |
JZS133..5F..Q;JZS133..4FC..GEN BULB:1.4W |
12 | ||
| 83101-14030 |
JZS133,YS132..B,D BULB:3.4W |
2 | ||
| 83101-14030 |
GS131,JZS133..ROY,SAL BULB:3.4W |
4 | ||
| 83101-14040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN BULB:1.4W |
12 | ||
| 83101-14040 |
JZS133..D BULB:1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZS133..D BULB 3.4W |
2 | ||
| 83101-14040 |
JZS133..D BULB 1.4W |
10 | ||
| 83101-14040 |
JZS133..5F..Q;JZS133..4FC..GEN BULB:1.4W |
12 | ||
| 83101-14030 |
JZS133,YS132..B,D BULB:3.4W |
2 | ||
| 83101-14030 |
GS131,JZS133..ROY,SAL BULB:3.4W |
4 | ||
| 83101-14040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN BULB:1.4W |
12 | ||
| 83101-14040 |
JZS133..D BULB:1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-30120 |
JZS133..RHD..4FC..GEN |
1 | ||
| 83149-30560 |
JZS133..D |
1 | ||
| 83149-30181 |
JZS133 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A850 |
JZS133,YS132..B,D |
1 | ||
| 83110-3A851 |
JZS133,YS132..B,D |
1 | ||
| 83110-3F040 |
JZS133..RHD..GEN W(TACHOMETER) |
1 | ||
| 83110-3F030 |
JZS133..RHD..GEN |
1 | ||
| 83110-3F031 |
JZS133..RHD |
1 | ||
| 83220-30090 |
JZS133 |
1 | ||
| 83110-3A851 |
JZS133..D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30180 |
JZS133..D |
1 | ||
| 83132-30181 |
JZS133..D |
1 | ||
| 83132-3A660 |
JZS133..RHD..4FC |
1 | ||
| 83132-3A740 |
JZS133..Q |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30550 |
JZS133,YS132..B,D |
1 | ||
| 83133-30410 |
GS131,JZS133..RHD |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22370 |
JZS133 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-3A340 |
JZS133..RHD..4FC |
1 | ||
| 83242-3A341 |
JZS133..Q |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A350 |
JZS133..RHD..GEN |
1 | ||
| 83243-3A232 |
JZS133..Q |
1 | ||
| 83243-3A491 |
JZS133,YS132..B,D |
1 | ||
| 83243-3A351 |
GS131,JZS133..RHD |
1 | ||
| 83243-3A352 |
JZS133..G |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-3A130 |
GS131,JZS133..RHD..GEN |
1 | ||
| 83244-3A250 |
JZS133..D |
1 | ||
| 83244-3A251 |
JZS133..D |
1 | ||
| 83244-3A131 |
GS131,JZS133..RHD |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00952 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

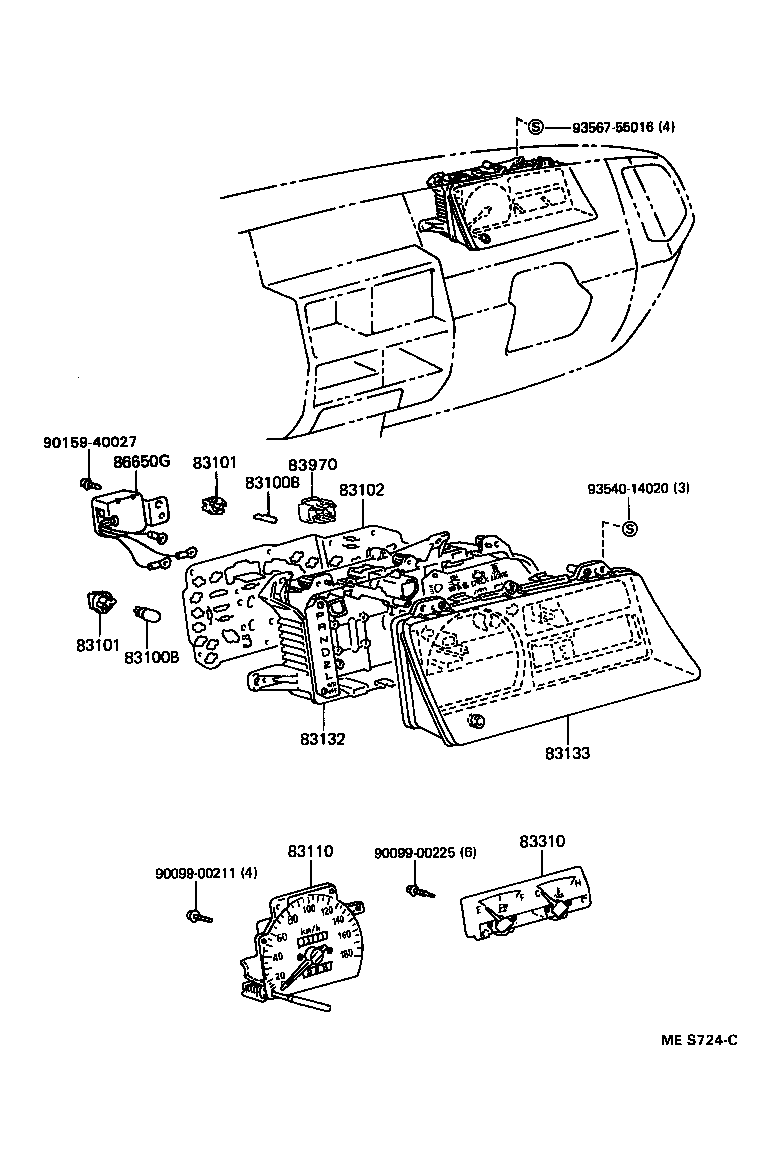

ILLUST NO. 1 OF 2(9110- )
COMBINATION METER, TAXI SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZS133..D BULB 3.4W |
2 | ||
| 83101-14040 |
JZS133..D BULB 1.4W |
10 | ||
| 83101-14040 |
JZS133..5F..Q;JZS133..4FC..GEN BULB:1.4W |
12 | ||
| 83101-14030 |
JZS133,YS132..B,D BULB:3.4W |
2 | ||
| 83101-14030 |
GS131,JZS133..ROY,SAL BULB:3.4W |
4 | ||
| 83101-14040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN BULB:1.4W |
12 | ||
| 83101-14040 |
JZS133..D BULB:1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZS133..D BULB 3.4W |
2 | ||
| 83101-14040 |
JZS133..D BULB 1.4W |
10 | ||
| 83101-14040 |
JZS133..5F..Q;JZS133..4FC..GEN BULB:1.4W |
12 | ||
| 83101-14030 |
JZS133,YS132..B,D BULB:3.4W |
2 | ||
| 83101-14030 |
GS131,JZS133..ROY,SAL BULB:3.4W |
4 | ||
| 83101-14040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN BULB:1.4W |
12 | ||
| 83101-14040 |
JZS133..D BULB:1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-30120 |
JZS133..RHD..4FC..GEN |
1 | ||
| 83149-30560 |
JZS133..D |
1 | ||
| 83149-30181 |
JZS133 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A850 |
JZS133,YS132..B,D |
1 | ||
| 83110-3A851 |
JZS133,YS132..B,D |
1 | ||
| 83110-3F040 |
JZS133..RHD..GEN W(TACHOMETER) |
1 | ||
| 83110-3F030 |
JZS133..RHD..GEN |
1 | ||
| 83110-3F031 |
JZS133..RHD |
1 | ||
| 83220-30090 |
JZS133 |
1 | ||
| 83110-3A851 |
JZS133..D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30180 |
JZS133..D |
1 | ||
| 83132-30181 |
JZS133..D |
1 | ||
| 83132-3A660 |
JZS133..RHD..4FC |
1 | ||
| 83132-3A740 |
JZS133..Q |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30550 |
JZS133,YS132..B,D |
1 | ||
| 83133-30410 |
GS131,JZS133..RHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A350 |
JZS133..RHD..GEN |
1 | ||
| 83243-3A232 |
JZS133..Q |
1 | ||
| 83243-3A491 |
JZS133,YS132..B,D |
1 | ||
| 83243-3A351 |
GS131,JZS133..RHD |
1 | ||
| 83243-3A352 |
JZS133..G |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

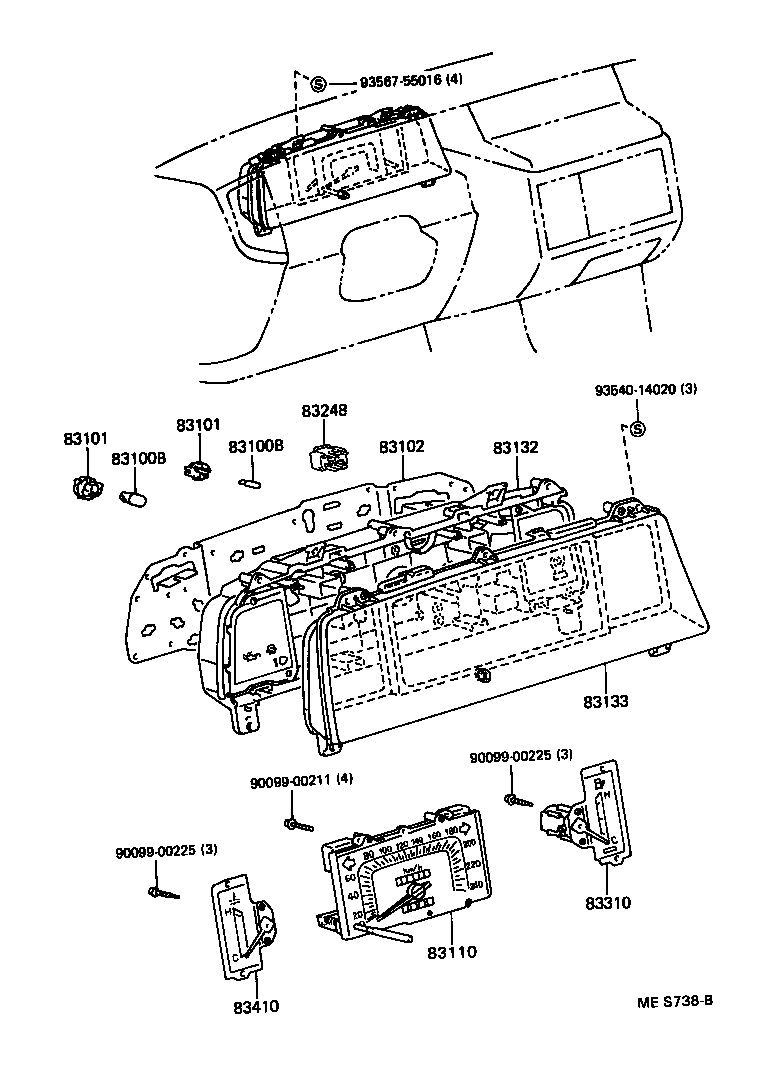

ILLUST NO. 1 OF 2(9110- )
COMBINATION METER, W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZS133..RHD..4FC..GEN 12V 1.2W W/O SOCKET,W(HIGH-240/150) |
12 | ||
| 90981-11018 |
JZS133..D;JZS133..5F..GEN..G 12V 1.2W W/O SOCKET |
10 | ||
| 90981-11018 |
JZS133..D;JZS133..LHD..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 83119-24130 |
JZS133..4FC 12V1.4W WHITE W(SKT) |
8 | ||
| 99132-12034 |
LS130..RHD;GS131,JZS133..ROY,SAL 12V 3.4W |
1 | ||
| 90981-11018 |
JZS133..RHD..5F..Q;JZS133..RHD..4FC..GEN;JZS133..(ROY,SAL)..GCC 12V 1.2W W/O SOCKET |
12 | ||
| 83109-24030 |
GS131,JZS133..ROY,SAL 12V3.4W W(GREEN CAP) |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZS133..D BULB 3.4W |
2 | ||
| 83101-14040 |
JZS133..D BULB 1.4W |
10 | ||
| 83101-14040 |
JZS133..5F..Q;JZS133..4FC..GEN BULB:1.4W |
12 | ||
| 83101-14030 |
JZS133,YS132..B,D BULB:3.4W |
2 | ||
| 83101-14030 |
GS131,JZS133..ROY,SAL BULB:3.4W |
4 | ||
| 83101-14040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN BULB:1.4W |
12 | ||
| 83101-14040 |
JZS133..D BULB:1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZS133..D BULB 3.4W |
2 | ||
| 83101-14040 |
JZS133..D BULB 1.4W |
10 | ||
| 83101-14040 |
JZS133..5F..Q;JZS133..4FC..GEN BULB:1.4W |
12 | ||
| 83101-14030 |
JZS133,YS132..B,D BULB:3.4W |
2 | ||
| 83101-14030 |
GS131,JZS133..ROY,SAL BULB:3.4W |
4 | ||
| 83101-14040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN BULB:1.4W |
12 | ||
| 83101-14040 |
JZS133..D BULB:1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-30120 |
JZS133..RHD..4FC..GEN |
1 | ||
| 83149-30560 |
JZS133..D |
1 | ||
| 83149-30181 |
JZS133 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A850 |
JZS133,YS132..B,D |
1 | ||
| 83110-3A851 |
JZS133,YS132..B,D |
1 | ||
| 83110-3F040 |
JZS133..RHD..GEN W(TACHOMETER) |
1 | ||
| 83110-3F030 |
JZS133..RHD..GEN |
1 | ||
| 83110-3F031 |
JZS133..RHD |
1 | ||
| 83220-30090 |
JZS133 |
1 | ||
| 83110-3A851 |
JZS133..D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30180 |
JZS133..D |
1 | ||
| 83132-30181 |
JZS133..D |
1 | ||
| 83132-3A660 |
JZS133..RHD..4FC |
1 | ||
| 83132-3A740 |
JZS133..Q |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30550 |
JZS133,YS132..B,D |
1 | ||
| 83133-30410 |
GS131,JZS133..RHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-3A350 |
JZS133..RHD..GEN |
1 | ||
| 83243-3A232 |
JZS133..Q |
1 | ||
| 83243-3A491 |
JZS133,YS132..B,D |
1 | ||
| 83243-3A351 |
GS131,JZS133..RHD |
1 | ||
| 83243-3A352 |
JZS133..G |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-3A130 |
GS131,JZS133..RHD..GEN |
1 | ||
| 83244-3A250 |
JZS133..D |
1 | ||
| 83244-3A251 |
JZS133..D |
1 | ||
| 83244-3A131 |
GS131,JZS133..RHD |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
