JZS133R-AEPQF (1991)
Toyota Crown

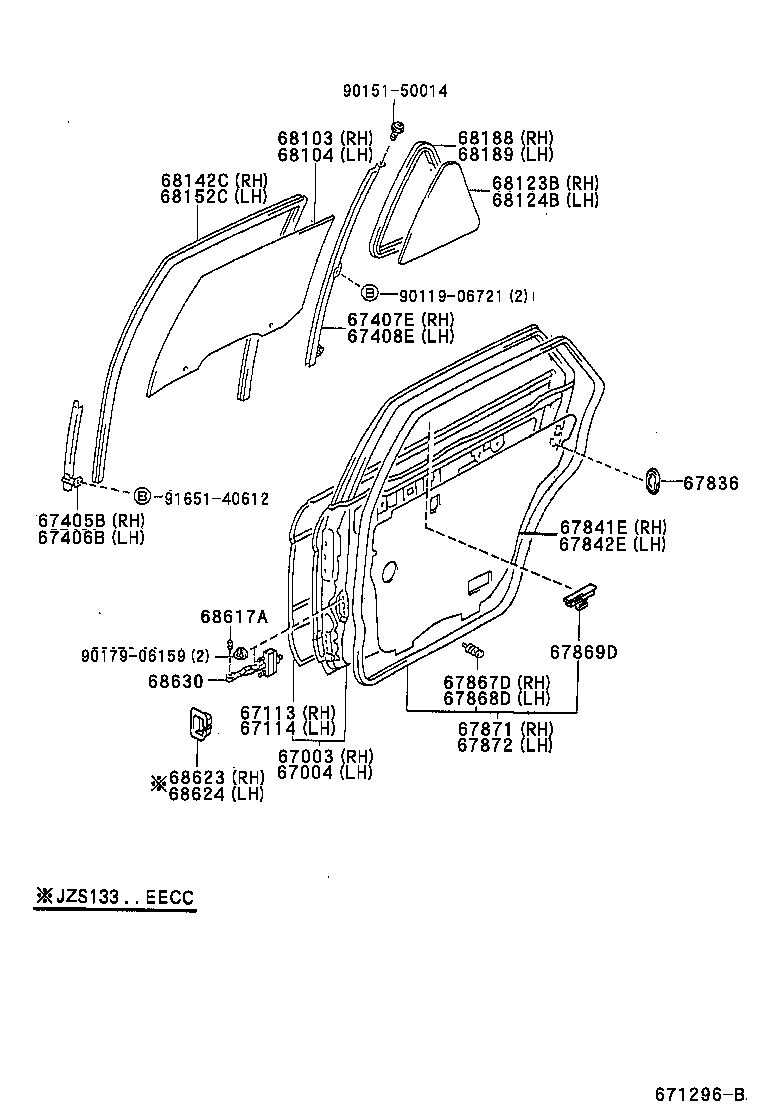

ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30460 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67003-30461 |
GS131,JZS133,LS130..B,D,G |
1 | ||
| 67003-30470 |
GS131,JZS133..Q |
1 | ||
| 67003-30471 |
GS131,JZS133..Q |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30471 |
GS131,JZS133..Q |
1 | ||
| 67004-30460 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67004-30461 |
GS131,JZS133,LS130..B,D,G |
1 | ||
| 67004-30470 |
GS131,JZS133..Q |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30310 |
GS131,JZS133..Q |
1 | ||
| 67113-30300 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30310 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67114-30320 |
GS131,JZS133..Q |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30080 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30050 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30100 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30340 |
GS131,JZS133..ROY,SAL |
1 | ||
| 67841-30240 |
JZS133,LS130,YS132..B,D |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30200 |
GS131,JZS133..ROY,SAL |
1 | ||
| 67842-30110 |
JZS133,LS130,YS132..B,D |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS131,JZS133,LS130,YS132 |
20 | ||
| 67868-22020 |
GS131,JZS133,LS130,YS132 |
20 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
GS131,JZS133,LS130,YS132 |
20 | ||
| 67867-12150 |
GS131,JZS133,LS130,YS132 |
20 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-30040 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30200 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30210 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30290 |
JZS133..4FC;GS131,JZS133..LHD..5F..(G,J) *TEM,T=4.0,BRONZE |
1 | ||
| 68113-30560 |
GS131,JZS133 *SERT,T=4.0,GREEN |
1 | ||
| 68113-30290 |
GS131..LHD;JZS133..ROY,SAL *TEM,T=4.0,BRONZE |
1 | ||
| 68113-30280 |
GS131..RHD;JZS133,LS130,YS132 *TT,T=4.0,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30210 |
JZS133..4FC;GS131,JZS133..LHD..5F..(G,J) *TT,T=4.0,BRONZE |
1 | ||
| 68114-30200 |
GS131..RHD;JZS133,LS130,YS132 *TEM,T=4.0,BLUE |
1 | ||
| 68114-30480 |
GS131,JZS133 *SERT,T=4.0,GREEN |
1 | ||
| 68114-30210 |
GS131..LHD;JZS133..ROY,SAL *TT,T=4.0,BRONZE |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30310 |
GS131..RHD;JZS133,LS130,YS132 *TEM,T=3.5,BLUE |
1 | ||
| 68123-30320 |
JZS133..4FC;GS131,JZS133..LHD..5F..(G,J) *TEM,T=3.5,BRONZE |
1 | ||
| 68123-30390 |
GS131,JZS133 *TEM,T=3.5,GREEN |
1 | ||
| 68123-30320 |
GS131..LHD;JZS133..ROY,SAL *TEM,T=3.5,BRONZE |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30330 |
GS131,JZS133 *TEM,T=3.5,GREEN |
1 | ||
| 68124-30260 |
GS131..LHD;JZS133..ROY,SAL *TEM,T=3.5,BRONZE |
1 | ||
| 68124-30250 |
GS131..RHD;JZS133,LS130,YS132 *TEM,T=3.5,BLUE |
1 | ||
| 68124-30260 |
JZS133..4FC;GS131,JZS133..LHD..5F..(G,J) *TEM,T=3.5,BRONZE |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-30122 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30022 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30100 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30080 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30070 |
GS131,JZS133,LS130,YS132..GCC,GEN |
2 | ||
| Common parts | ||||
| 90119-06721 | ||||
| 90151-50014 | ||||
| 90179-06159 | ||||
| 91651-40612 | ||||

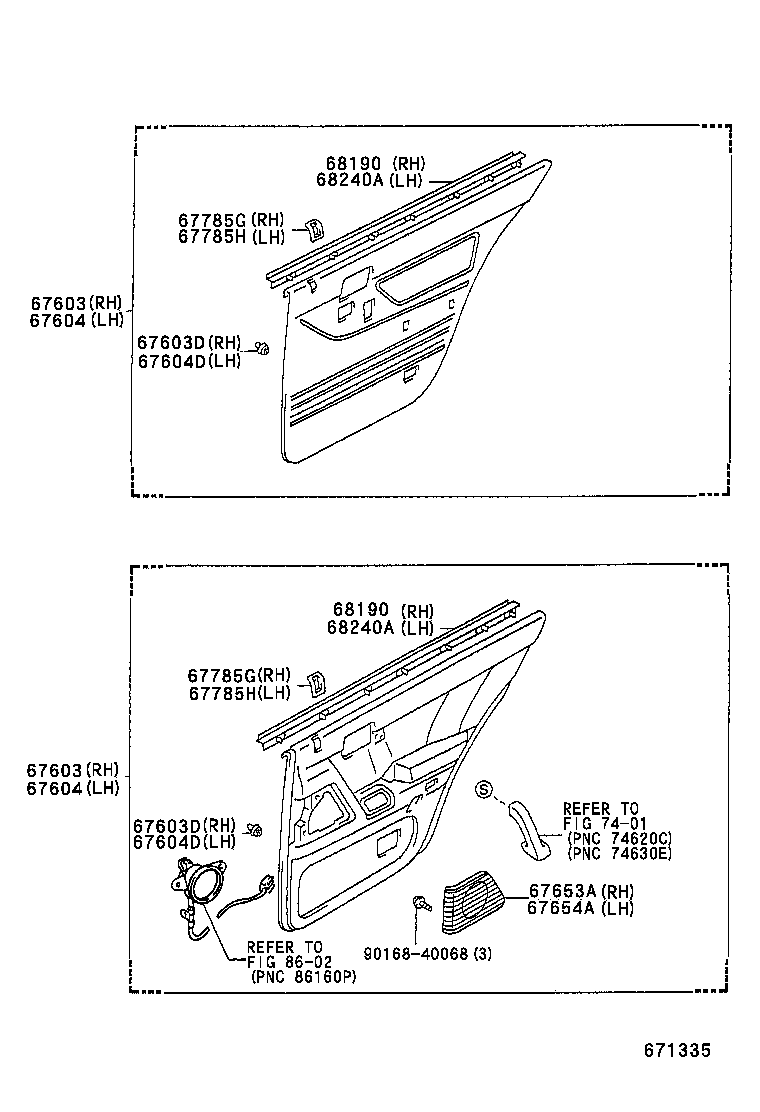

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A620E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67630-3A660E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67630-3A670J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67630-3A660J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 67630-3A660E3 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67630-3A760J2 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A620J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67630-3A690J3 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67630-3A670E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67630-3A760J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A670E3 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67630-3A670J3 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67630-3A690J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67630-3A660J3 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A620E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67630-3A660E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67630-3A670J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67630-3A660J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 67630-3A660E3 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67630-3A760J2 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A620J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67630-3A690J3 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67630-3A670E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67630-3A760J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67630-3A670E3 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67630-3A670J3 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67630-3A690J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67630-3A660J3 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
GS131,JZS133 |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
9 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
GS131,JZS133 |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
9 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A630E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67640-3A700J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67640-3A750J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A630J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67640-3A670E3 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67640-3A670E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67640-3A700J3 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67640-3A680J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67640-3A670J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 67640-3A670J3 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67640-3A680E3 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67640-3A680E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67640-3A750J2 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A680J3 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A630E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67640-3A700J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67640-3A750J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A630J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67640-3A670E3 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67640-3A670E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67640-3A700J3 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67640-3A680J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67640-3A670J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 67640-3A670J3 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67640-3A680E3 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67640-3A680E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 67640-3A750J2 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67640-3A680J3 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
9 | ||
| 67771-12050 |
GS131,JZS133 |
10 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
9 | ||
| 67771-12050 |
GS131,JZS133 |
10 | ||
| 67653A - GRILLE, SPEAKER REAR DOOR, RH | ||||
| 67653-30010E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67653-30020E0 |
GS131,JZS133..G,J QUARTZ,TRIM4# |
1 | ||
| 67653-30010J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67653-30020J0 |
GS131,JZS133..D,G,J DK.BLUE,TRIM8# |
1 | ||
| 67654A - GRILLE, SPEAKER REAR DOOR, LH | ||||
| 67654-30020J0 |
GS131,JZS133..D,G,J DK.BLUE,TRIM8# |
1 | ||
| 67654-30010E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67654-30020E0 |
GS131,JZS133..G,J QUARTZ,TRIM4# |
1 | ||
| 67654-30010J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-30100J0 |
JZS133..D TAXI SPEC FOR SAUDI,DK.BLUE,TRIM8# |
1 | ||
| 67785-30090J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 67785-30090E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-30100J0 |
JZS133..D TAXI SPEC FOR SAUDI,DK.BLUE,TRIM8# |
1 | ||
| 67785-30090J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 67785-30090E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-30100J0 |
JZS133..D TAXI SPEC FOR SAUDI,DK.BLUE,TRIM8# |
1 | ||
| 67785-30090E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785-30090J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-30100J0 |
JZS133..D TAXI SPEC FOR SAUDI,DK.BLUE,TRIM8# |
1 | ||
| 67785-30090E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785-30090J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| Common parts | ||||
| 90168-40068 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
